PIC18F27Q43-I/SO by: Microchip Technology Inc

128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM,

Part Details for PIC18F27Q43-I/SO by Microchip Technology Inc

Results Overview of PIC18F27Q43-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

PIC18F27Q43-I/SO Information

PIC18F27Q43-I/SO by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F27Q43-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 02AH4620
Newark Mcu, 8Bit, 64Mhz, Dip-28, Product Range:Pic18 Family Pic18Fxxq43 Series Microcontrollers, Cpu Speed:64Mhz, Program Memory Size:128Kb, Ram Memory Size:8Kb, No. Of Pins:28Pins, Mcu Case Style:Soic, No. Of I/O S:25I/O S, Embedded Rohs Compliant: Yes |Microchip PIC18F27Q43-I/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 3492
  • 1 $1.6800
  • 10 $1.6300
  • 25 $1.5900
  • 54 $1.5400
  • 108 $1.4700
  • 513 $1.4000
$1.4000 / $1.6800 Buy Now
DISTI # PIC18F27Q43-I/SO
Avnet Americas - Rail/Tube (Alt: PIC18F27Q43-I/SO) COO: Thailand RoHS: Not Compliant Min Qty: 432 Package Multiple: 27 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 432 $1.7000
  • 486 $1.6081
  • 918 $1.5658
  • 2,160 $1.5256
  • 4,320 $1.4875
$1.4875 / $1.7000 Buy Now
DISTI # PIC18F27Q43-I/SO
Microchip Technology Inc 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM,, SOIC, Projected EOL: 2044-12-19 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube In Stock: 3153 and Alternates Available
  • 1 $1.6800
  • 25 $1.5400
  • 100 $1.4000
  • 1,000 $1.2900
  • 5,000 $1.2200
$1.2200 / $1.6800 Buy Now
DISTI # PIC18F27Q43-I/SO
TME IC: PIC microcontroller, 128kB, I2C x2,SPI x2,UART x5, SMD, SO28 Min Qty: 1 105
  • 1 $1.9600
  • 5 $1.8700
  • 27 $1.7900
  • 108 $1.7600
$1.7600 / $1.9600 Buy Now
NAC 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM,. Package: 28 SOIC .300in TUBE - PIC18 Flash Low Pin Count Product Line RoHS: Compliant Min Qty: 216 Package Multiple: 27 Container: Tube 0
  • 1 $1.8300
  • 100 $1.6500
  • 500 $1.5300
  • 1,000 $1.4900
$1.4900 / $1.8300 Buy Now
DISTI # PIC18F27Q43-I/SO
Avnet Silica (Alt: PIC18F27Q43-I/SO) RoHS: Compliant Min Qty: 432 Package Multiple: 27 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC18F27Q43-I/SO
EBV Elektronik (Alt: PIC18F27Q43-I/SO) RoHS: Compliant Min Qty: 432 Package Multiple: 27 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
LCSC PIC 64MHz 25 SOIC-28-300mil Microcontrollers RoHS 21
  • 1 $2.0461
  • 10 $1.9935
  • 30 $1.9579
  • 100 $1.9239
$1.9239 / $2.0461 Buy Now

US Tariff Estimator: PIC18F27Q43-I/SO by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC18F27Q43-I/SO
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC18F27Q43-I/SO

PIC18F27Q43-I/SO CAD Models

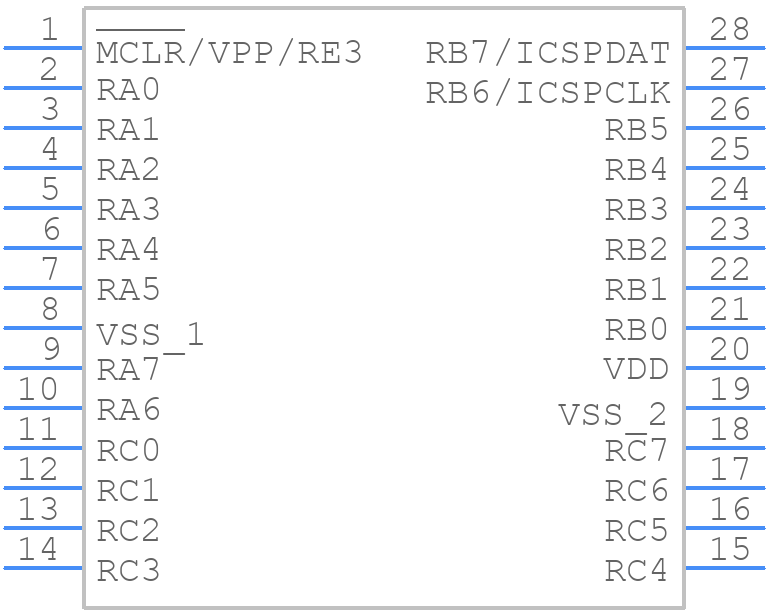

  • Part Symbol

    schematic symbol

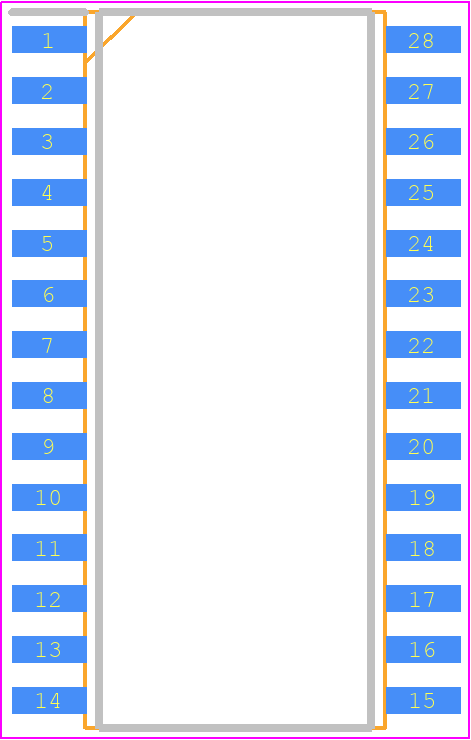

  • Footprint

    pcb footprint

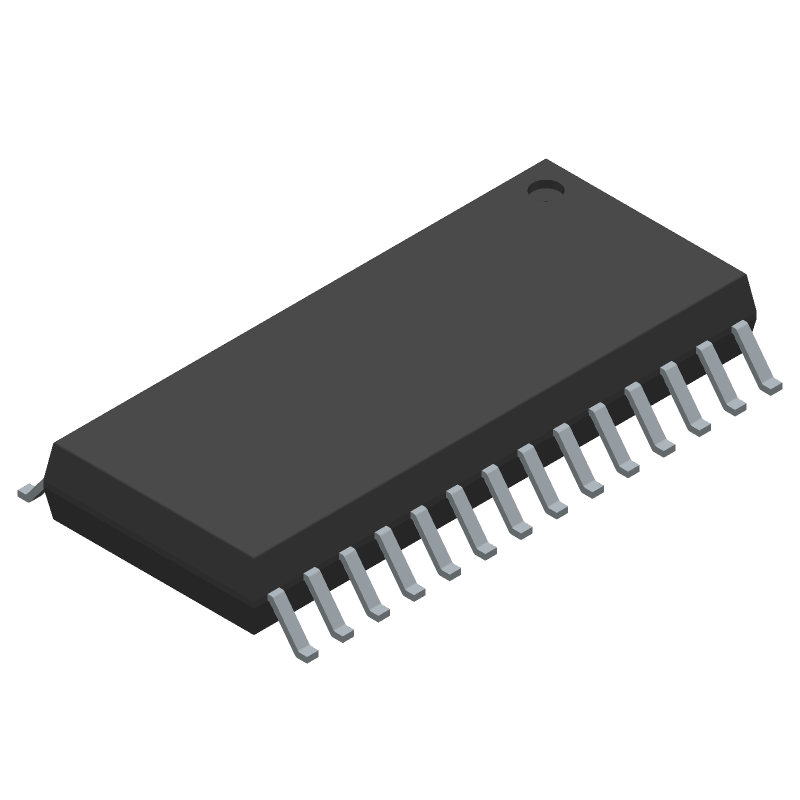

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F27Q43-I/SO Part Data Attributes

Parametric Data
PIC18F27Q43-I/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F27Q43-I/SO Microchip Technology Inc 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description SOP, SOP28,.4
Pin Count 28
Manufacturer Package Code SOIC-28
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Date Of Intro 2019-12-20
Samacsys Manufacturer Microchip
Has ADC YES
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 64 MHz
DAC Channels YES
DMA Channels YES
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 mm
Low Power Mode YES
Number of DMA Channels 6
Number of External Interrupts 3
Number of I/O Lines 25
Number of Serial I/Os 5
Number of Terminals 28
Number of Timers 8
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
RAM (bytes) 8192
ROM (words) 131072
ROM Programmability FLASH
Seated Height-Max 2.65 mm
Speed 64 MHz
Supply Current-Max 13.8 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 1.8 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC18F27Q43-I/SO

This table gives cross-reference parts and alternative options found for PIC18F27Q43-I/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F27Q43-I/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18F27Q43-I/STX Microchip Technology Inc $1.4227 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43-I/STX
PIC18F27Q43-I/SS Microchip Technology Inc $1.5412 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43-I/SS
PIC18F27Q43T-I/SS Microchip Technology Inc $1.6500 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43T-I/SS
PIC18F27Q43T-I/SO Microchip Technology Inc $1.6850 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43T-I/SO
PIC18F27Q43-E/STX Microchip Technology Inc $1.6929 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43-E/STX
PIC18F27Q43-E/SS Microchip Technology Inc $1.7487 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43-E/SS
PIC18F27Q43-E/SO Microchip Technology Inc $1.8009 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43-E/SO
PIC18F27Q43-I/SP Microchip Technology Inc $2.2096 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43-I/SP
PIC18F27Q43-E/SP Microchip Technology Inc $2.3944 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43-E/SP
PIC18F27Q43T-I/STX Microchip Technology Inc Check for Price 128KB Flash, 8KB RAM, 1KB EEPROM, 12-bit ADC2, 8-bit DAC, Comp, 16-bit PWM, PIC18F27Q43-I/SO vs PIC18F27Q43T-I/STX
equivalents icon

PIC18F27Q43-I/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC18F27Q43 is 48 MHz.

  • The PIC18F27Q43 has 128 KB of flash memory.

  • Yes, the PIC18F27Q43 has several low-power modes, including Sleep, Idle, and Doze, which can help reduce power consumption in low-power applications.

  • Yes, the PIC18F27Q43 has a built-in USB 2.0 Full-Speed Device/Host/OTG module, making it suitable for USB-based applications.

  • The PIC18F27Q43 has 24 analog-to-digital converter (ADC) channels, allowing for multiple analog inputs to be converted to digital values.
