PIC18F46K20-I/P by: Microchip Technology Inc

40 PIN, 64 KB ENH FLASH, 3936 RAM, 36 I/O

Part Details for PIC18F46K20-I/P by Microchip Technology Inc

Results Overview of PIC18F46K20-I/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Security and Surveillance Audio and Video Systems Transportation and Logistics Healthcare Renewable Energy Automotive Robotics and Drones

PIC18F46K20-I/P Information

PIC18F46K20-I/P by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F46K20-I/P

Part # Distributor Description Stock Price Buy
DISTI # 59M1118
Newark 8 Bit Microcontroller, Flash, Pic18Fxxkxx, 64 Mhz, 64 Kb, 3.84 Kb, 40, Dip Rohs Compliant: Yes |Microchip PIC18F46K20-I/P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 210
  • 1 $3.6800
  • 10 $3.5200
  • 30 $3.3600
  • 50 $3.2000
  • 100 $3.0300
$3.0300 / $3.6800 Buy Now
DISTI # PIC18F46K20-I/P
Avnet Americas MCU 8-bit PIC18 PIC RISC 64KB Flash 2.5V/3.3V 40-Pin PDIP Tube - Rail/Tube (Alt: PIC18F46K20-I/P) COO: China RoHS: Compliant Min Qty: 200 Package Multiple: 10 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 200 $3.6857
  • 220 $3.4865
  • 420 $3.3947
  • 1,000 $3.3077
  • 2,000 $3.2250
$3.2250 / $3.6857 Buy Now
DISTI # PIC18F46K20-I/P
Microchip Technology Inc 40 PIN, 64 KB ENH FLASH, 3936 RAM, 36 I/O, PDIP, Projected EOL: 2034-07-01 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 427 and Alternates Available
  • 1 $3.6800
  • 25 $3.3600
  • 100 $3.0300
  • 1,000 $2.8000
  • 5,000 $2.6700
$2.6700 / $3.6800 Buy Now
DISTI # 70413776
RS PIC18F46K20-I/P,8BIT PIC MICROCONTROLLER,64MHZ,64KB,1024 B FLASH,40-PIN PDIP Min Qty: 220 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 220 $3.6800
  • 1,100 $3.5000
  • 2,200 $3.3100
$3.3100 / $3.6800 RFQ
DISTI # PIC18F46K20-I/P
TME IC: PIC microcontroller, 64MHz, 1.8÷3.6VDC, THT, DIP40, PIC18, tube Min Qty: 1 49
  • 1 $4.1000
  • 5 $3.9300
  • 20 $3.7700
  • 50 $3.6600
$3.6600 / $4.1000 Buy Now
NAC 64KB, Flash, 3968bytes-RAM, 36I/O, 8-bit Family,nanowatt XLP. Package: 40 PDIP .600in TUBE - PIC18 Flash Low Pin Count Product Line RoHS: Compliant Min Qty: 100 Package Multiple: 10 Container: Tube 0
  • 1 $3.7900
  • 100 $3.4400
  • 500 $3.2300
  • 1,000 $3.1500
$3.1500 / $3.7900 Buy Now
DISTI # PIC18F46K20-I/P
Avnet Silica MCU 8bit PIC18 PIC RISC 64KB Flash 25V33V 40Pin PDIP Tube (Alt: PIC18F46K20-I/P) RoHS: Compliant Min Qty: 200 Package Multiple: 10 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC18F46K20-I/P
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 190
  • 1 $3.6700
  • 10 $3.3400
  • 50 $3.1500
  • 100 $2.9600
  • 200 $2.8300
  • 880 $2.7100
  • 1,760 $2.5700
  • 3,520 $2.4600
  • 7,040 $2.4500
$2.4500 / $3.6700 Buy Now
DISTI # PIC18F46K20-I/P
EBV Elektronik MCU 8bit PIC18 PIC RISC 64KB Flash 25V33V 40Pin PDIP Tube (Alt: PIC18F46K20-I/P) RoHS: Compliant Min Qty: 200 Package Multiple: 10 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
LCSC PIC 64MHz 35 PDIP-40 Microcontrollers RoHS 9
  • 1 $6.3486
  • 10 $6.1374
  • 30 $6.0589
  • 100 $5.9805
$5.9805 / $6.3486 Buy Now
DISTI # PIC18F46K20-I/P
Maritex 8-bit MCU Microcontrollers, MICROCHIP, PIC18F46K20-I/P, PIC, 64 MHz, FLASH, 4 Min Qty: 1 Package Multiple: 1 4010
  • 1 $5.2800
$5.2800 Buy Now

US Tariff Estimator: PIC18F46K20-I/P by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC18F46K20-I/P
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC18F46K20-I/P

PIC18F46K20-I/P CAD Models

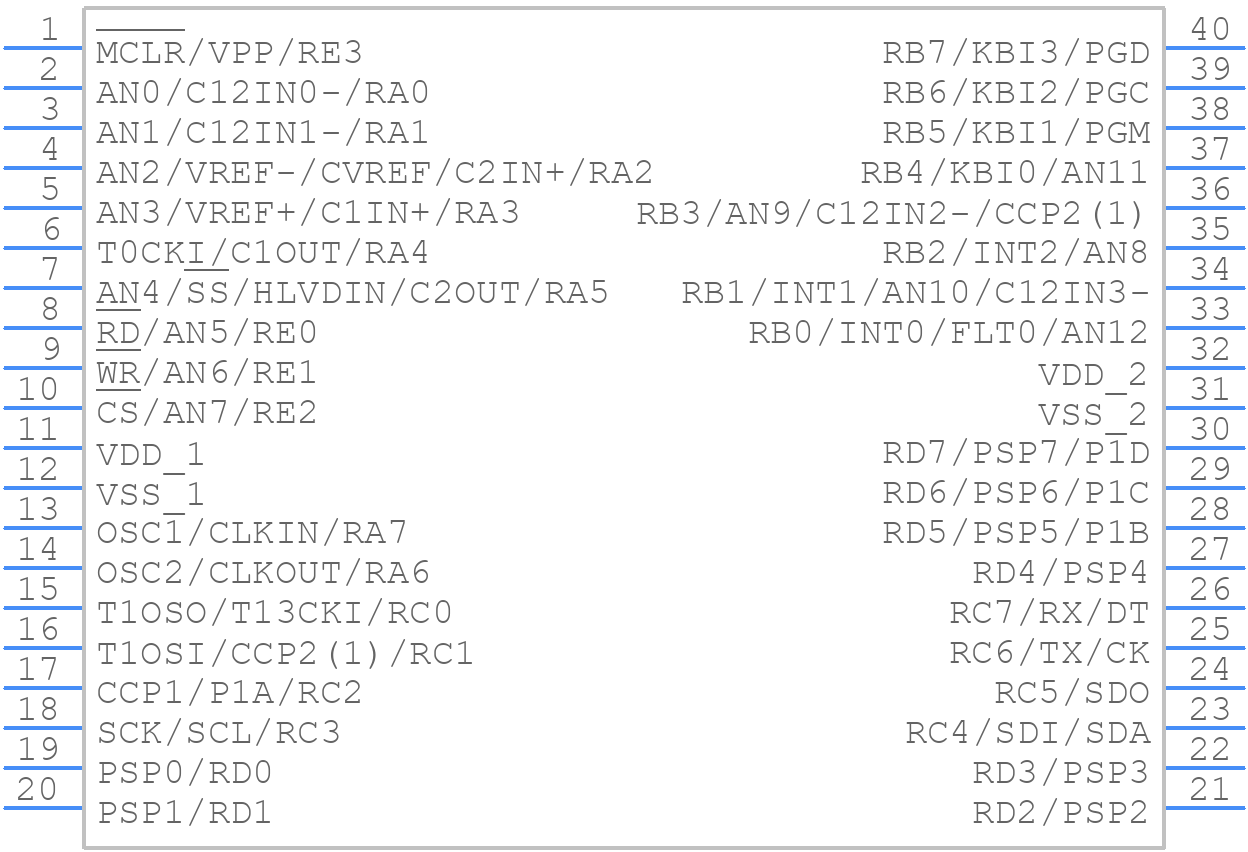

  • Part Symbol

    schematic symbol

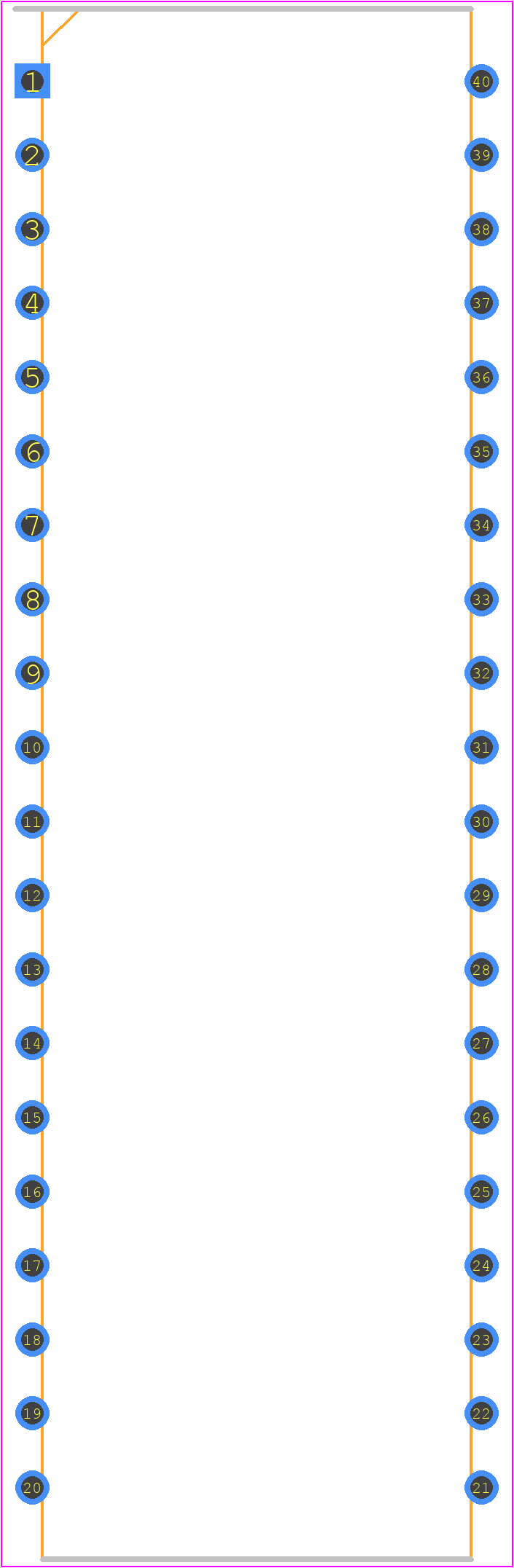

  • Footprint

    pcb footprint

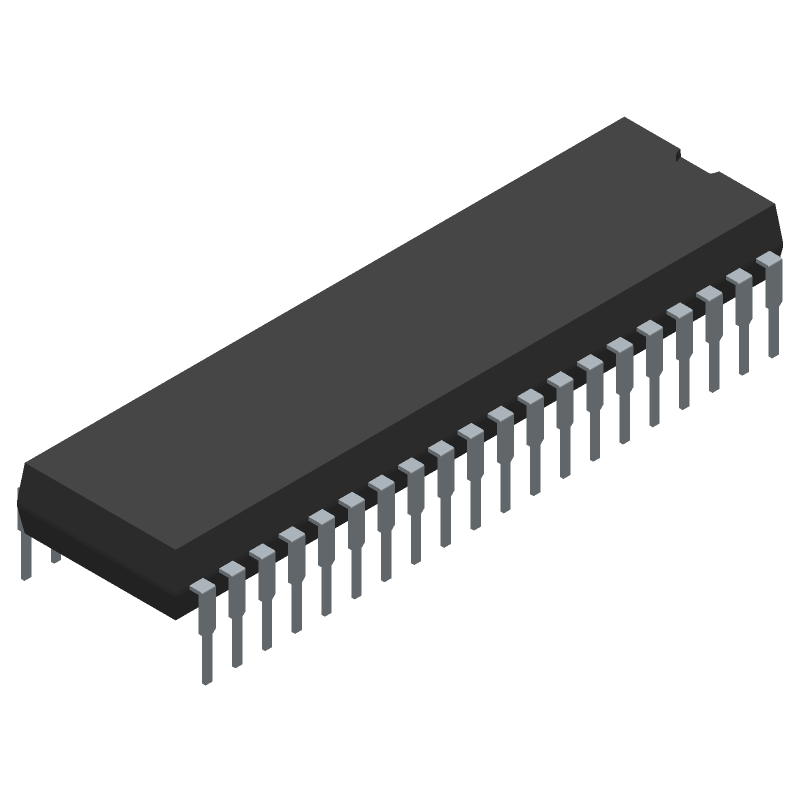

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F46K20-I/P Part Data Attributes

Parametric Data
PIC18F46K20-I/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F46K20-I/P Microchip Technology Inc 40 PIN, 64 KB ENH FLASH, 3936 RAM, 36 I/O
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code DIP
Package Description Dip, Dip40,.6
Pin Count 40
Manufacturer Package Code PDIP-40
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Has ADC Yes
Additional Feature Also Operates At 1.8v Min Supply For 16 Mhz And Operates At 2v For 20 Mhz
Address Bus Width
Bit Size 8
Boundary Scan No
CPU Family Pic18
Clock Frequency-Max 64 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code R-PDIP-T40
JESD-609 Code e3
Length 51.753 Mm
Low Power Mode Yes
Number of External Interrupts 3
Number of I/O Lines 36
Number of Serial I/Os 1
Number of Terminals 40
Number of Timers 6
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape Rectangular
Package Style In-Line
Qualification Status Not Qualified
RAM (bytes) 3936
ROM (words) 65536
ROM Programmability Flash
Screening Level Ts 16949
Seated Height-Max 6.35 Mm
Speed 64 Mhz
Supply Current-Max 15 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount No
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Through-Hole
Terminal Pitch 2.54 Mm
Terminal Position Dual
Width 15.24 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
