PIC18F46K22-E/PT Information
PIC18F46K22-E/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for PIC18F46K22-E/PT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07AH6904
|
Newark | Mcu, 8Bit, 64Mhz, Tqfp-44, Product Range:Pic18 Family Pic18F4Xk22 Series Microcontrollers, Cpu Speed:64Mhz, Program Memory Size:64Kb, Ram Memory Size:3.8Kb, No. Of Pins:44Pins, Mcu Case Style:Tqfp, No. Of I/O S:36I/O S, Embedded Rohs Compliant: Yes |Microchip PIC18F46K22-E/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 320 |
|
$3.5500 / $4.2600 | Buy Now |
|
DISTI #
PIC18F46K22-E/PT
|
Avnet Americas | MCU 8-bit PIC18 PIC RISC 64KB Flash 2.5V/3.3V/5V 44-Pin TQFP Tray - Trays (Alt: PIC18F46K22-E/PT) COO: Thailand RoHS: Compliant Min Qty: 320 Package Multiple: 160 Lead time: 4 Weeks, 0 Days Container: Tray | 0 |
|
$3.7625 / $4.3000 | Buy Now |
|
DISTI #
PIC18F46K22-E/PT
|
Microchip Technology Inc | 64KB, Flash, 3968bytes-RAM,8-bit Family,nanoWatt XLP, TQFP, Projected EOL: 2035-09-13 COO: Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray | In Stock: 384 and Alternates Available |
|
$3.1100 / $4.2600 | Buy Now |
|
DISTI #
70451595
|
RS | 64KB, FLASH, 3968BYTES-RAM,8-BIT FAMILY44 TQFP 10X10X1MM TRAY Min Qty: 320 Package Multiple: 1 Lead time: 47 Weeks, 0 Days Container: Bulk | 0 |
|
$8.6100 | RFQ |
|
|
Bristol Electronics | 3 |
|
RFQ | ||
|
DISTI #
PIC18F46K22-E/PT
|
TME | IC: PIC microcontroller, 64MHz, 2.3÷5.5VDC, SMD, TQFP44, PIC18 Min Qty: 1 | 146 |
|
$4.0600 / $4.6800 | Buy Now |
|
|
NAC | 64KB, Flash, 3968bytes-RAM,8-bit Family. Package: 44 TQFP 10x10x1mm TRAY - PIC18 Flash Low Pin Count Product Line RoHS: Compliant Min Qty: 160 Package Multiple: 160 Container: Tray | 0 |
|
$3.6700 / $4.4300 | Buy Now |
|
DISTI #
SMC-PIC18F46K22-E/PT
|
Sensible Micro Corporation | Lfdgt-4200000245500 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1735 Container: Tubes | 480 |
|
RFQ | |
|
DISTI #
PIC18F46K22-E/PT
|
Avnet Silica | MCU 8bit PIC18 PIC RISC 64KB Flash 25V33V5V 44Pin TQFP Tray (Alt: PIC18F46K22-E/PT) RoHS: Compliant Min Qty: 320 Package Multiple: 160 Lead time: 6 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | RISCMicrocontroller,8-Bit,FLASH,PIC18CPU,48MHz,CMOS,PQFP44 | 4765 |
|
RFQ |
US Tariff Estimator: PIC18F46K22-E/PT by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PIC18F46K22-E/PT
PIC18F46K22-E/PT CAD Models
-

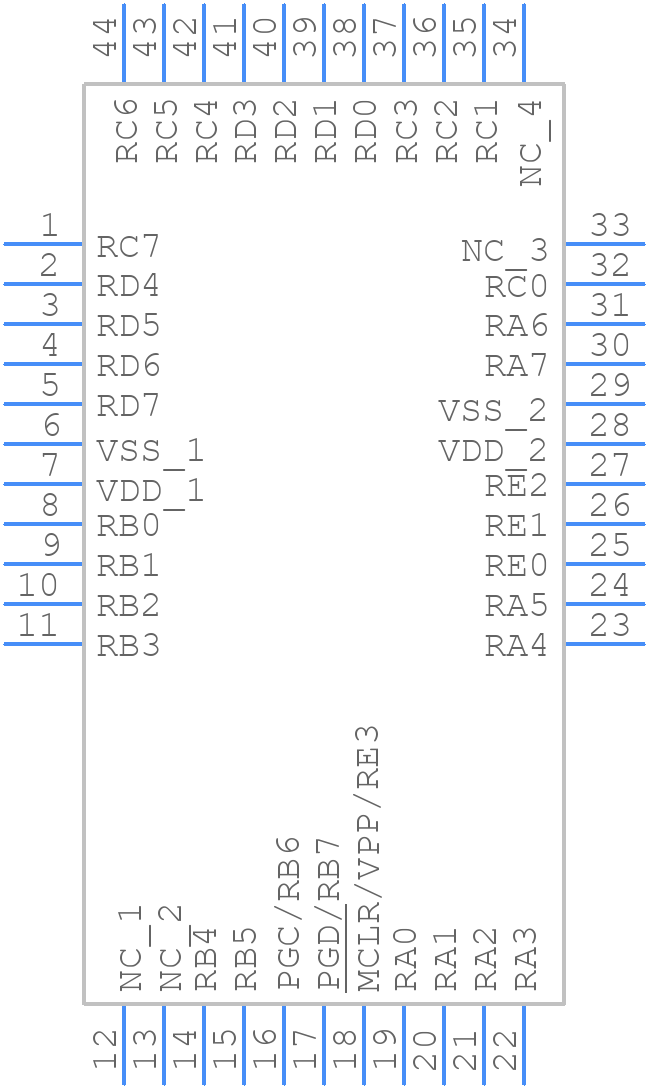

Part Symbol
-

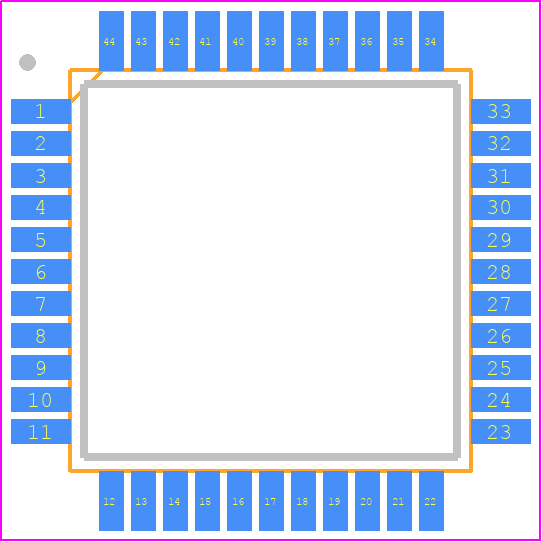

Footprint
-

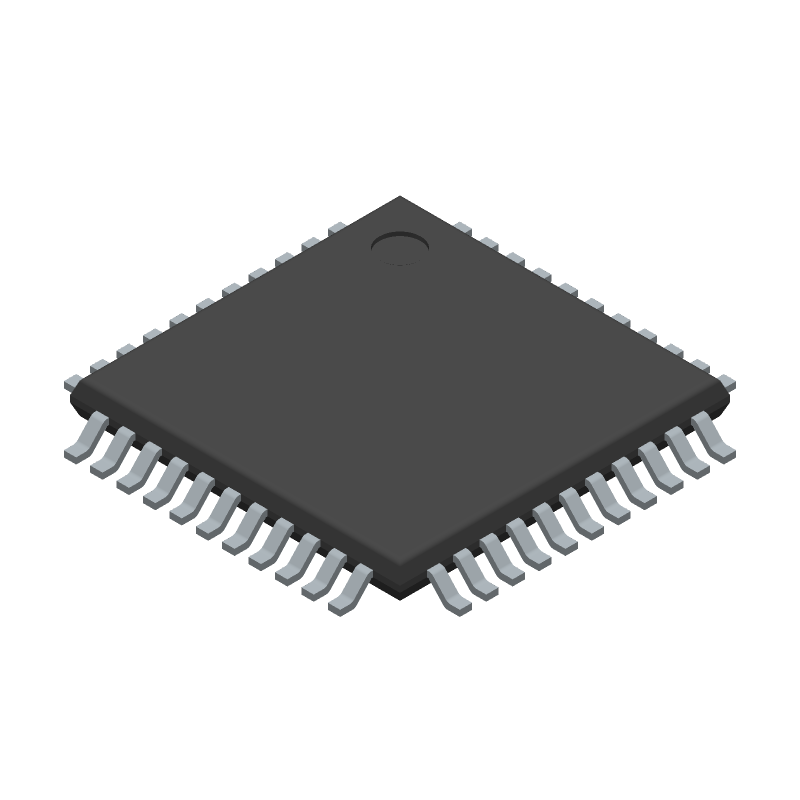

3D Model
