PIC18F47K40-E/PT Information

PIC18F47K40-E/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F47K40-E/PT

Part # Distributor Description Stock Price Buy
DISTI # 98Y9307
Newark 128Kb Flash, 4Kb Ram, 256B Eeprom, 10-Bit Adc2, 5-Bit Dac, Comp, Pwm, Ccp, Cwg, Hlt, Wwdt, Scan/Crc, Zcd, Pps, Eusart, Spi/I2C, Idle/Doze/Pmd 44 Tqfp 10X10X1Mm Tray Rohs Compliant: Yes |Microchip PIC18F47K40-E/PT RoHS: Compliant Min Qty: 320 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $2.2400
$2.2400 Buy Now
DISTI # PIC18F47K40-E/PT
Avnet Americas MEMS Oscillator, 16 MHz, SMD, 2.5mm x 2mm, 25 ppm, 3.3 V, DSC1004 - Trays (Alt: PIC18F47K40-E/PT) COO: Thailand RoHS: Compliant Min Qty: 320 Package Multiple: 160 Lead time: 4 Weeks, 0 Days Container: Tray 0
  • 320 $2.6429
  • 640 $2.5000
  • 960 $2.4342
  • 1,600 $2.3718
  • 3,200 $2.3125
$2.3125 / $2.6429 Buy Now
DISTI # PIC18F47K40-E/PT
Microchip Technology Inc 128KB Flash, 4KB RAM, 1KB EE, 10b ADC2, DAC, COMP, PWM, CWG, HLT, WWDT,, TQFP, Projected EOL: 2045-09-08 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray In Stock: 2720 and Alternates Available
  • 1 $2.6200
  • 25 $2.4000
  • 100 $2.1700
  • 1,000 $2.0000
  • 5,000 $1.9000
$1.9000 / $2.6200 Buy Now
DISTI # PIC18F47K40-E/PT
TME IC: PIC microcontroller, 64MHz, 2.3÷5.5VDC, SMD, TQFP44, PIC18 Min Qty: 1 0
  • 1 $2.9000
  • 5 $2.7200
  • 25 $2.6200
  • 100 $2.4400
$2.4400 / $2.9000 RFQ
NAC 128KB Flash, 4KB RAM, 256B EEPROM, 10-bit ADC2, 5-bit DAC, Comp, PWM, CCP, CWG, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, SPI/I2C, IDLE/DOZE/PMD. Package: 44 TQFP 10x10x1mm TRAY - PIC18 Flash High Pin Count Product Line RoHS: Compliant Min Qty: 160 Package Multiple: 160 Container: Tray 0
  • 1 $2.8500
  • 100 $2.5700
  • 500 $2.3700
  • 1,000 $2.3100
$2.3100 / $2.8500 Buy Now
DISTI # PIC18F47K40-E/PT
Avnet Silica 128KB FLASH 4KB RAM 256B EEPROM 10BIT ADC2 5BIT DAC COMP PWM CCP CWG HLT WWDT SCANCRC ZCD PPS EUSART SPII2C IDLEDOZEPMD (Alt: PIC18F47K40-E/PT) RoHS: Compliant Min Qty: 320 Package Multiple: 160 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC18F47K40-E/PT
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray 290
  • 1 $2.3400
  • 10 $2.1500
  • 50 $1.8400
  • 200 $1.7900
  • 640 $1.7800
$1.7800 / $2.3400 Buy Now
DISTI # PIC18F47K40-E/PT
EBV Elektronik (Alt: PIC18F47K40-E/PT) RoHS: Compliant Min Qty: 320 Package Multiple: 160 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PIC18F47K40-E/PT by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC18F47K40-E/PT
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC18F47K40-E/PT

PIC18F47K40-E/PT CAD Models

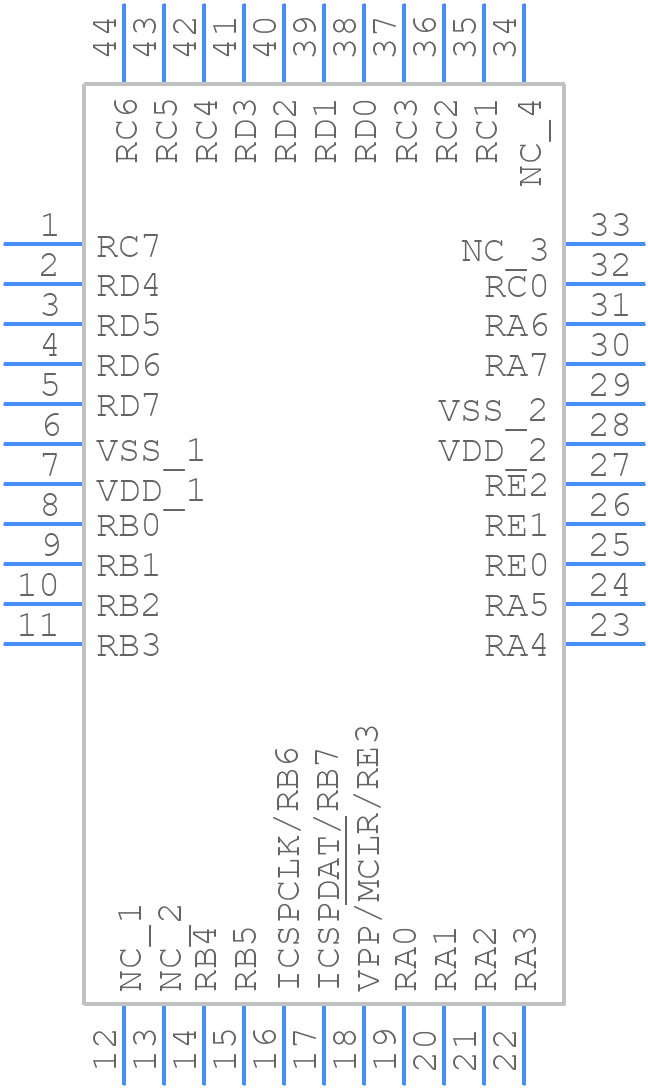

  • Part Symbol

    schematic symbol

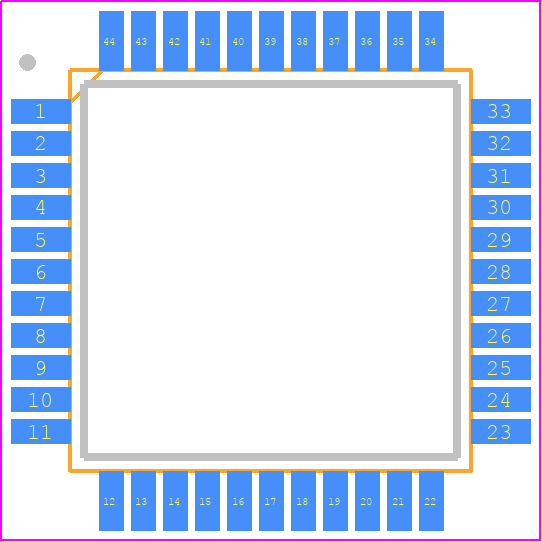

  • Footprint

    pcb footprint

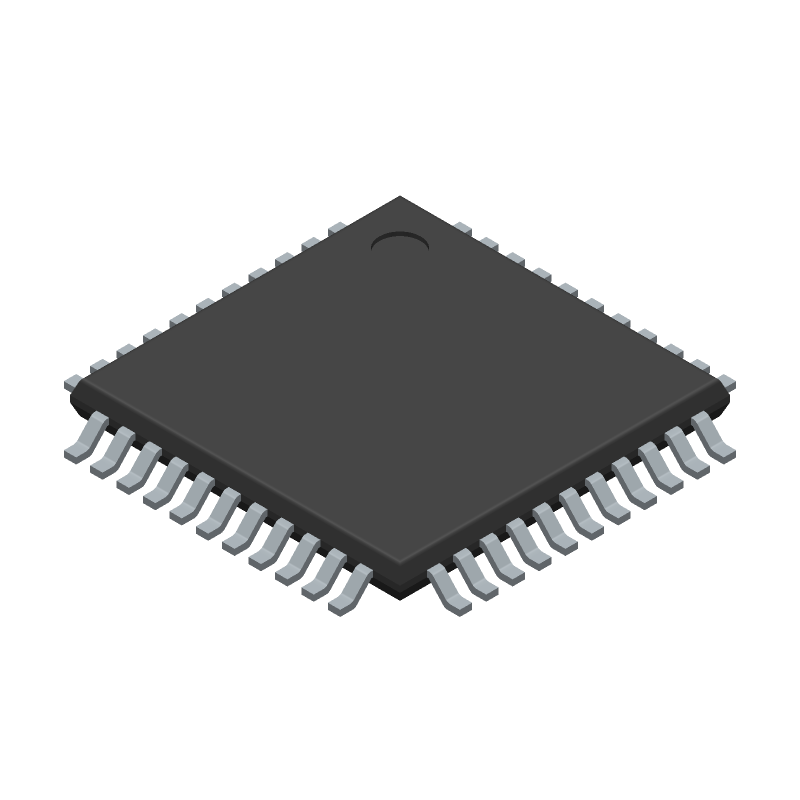

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F47K40-E/PT Part Data Attributes

Parametric Data
PIC18F47K40-E/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F47K40-E/PT Microchip Technology Inc 128KB Flash, 4KB RAM, 1KB EE, 10b ADC2, DAC, COMP, PWM, CWG, HLT, WWDT,
Rohs Code Yes
Part Life Cycle Code Active
Package Description Tqfp, Tqfp44,.39sq,31
Pin Count 44
Manufacturer Package Code TQFP-44
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Date Of Intro 2016-09-15
Has ADC Yes
Additional Feature Operates At 2.3 V Minimum Supply At 16 Mhz
Address Bus Width
Bit Size 8
Boundary Scan No
CPU Family Pic18
Clock Frequency-Max 64 Mhz
DAC Channels Yes
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQFP-G44
JESD-609 Code e3
Length 10 Mm
Low Power Mode Yes
Number of External Interrupts 3
Number of I/O Lines 36
Number of Serial I/Os 2
Number of Terminals 44
Number of Timers 12
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code TQFP
Package Equivalence Code TQFP44,.39SQ,31
Package Shape Square
Package Style Flatpack, Thin Profile
RAM (bytes) 3615
ROM (words) 131072
ROM Programmability Flash
Screening Level Ts 16949
Seated Height-Max 1.2 Mm
Speed 64 Mhz
Supply Current-Max 9.5 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 1.8 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Automotive
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.8 Mm
Terminal Position Quad
Width 10 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
