Microcontrollers and Processors / Microcontrollers / PIC18F67K22T-I/PT
Datasheets
packagee
PIC18F67K22T-I/PT by:
Microchip Technology Inc

128kB Flash, 4kB RAM, 1kB EE, nanoWatt XLP, GP

Part Details for PIC18F67K22T-I/PT by Microchip Technology Inc

Results Overview of PIC18F67K22T-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

PIC18F67K22T-I/PT Information

PIC18F67K22T-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F67K22T-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 95W8425
Newark 8 Bit Microcontroller, Flash, Pic18Fxxkxx, 64 Mhz, 128 Kb, 4 Kb, 64, Tqfp Rohs Compliant: Yes |Microchip PIC18F67K22T-I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 843
  • 1 $5.3200
  • 10 $5.1000
  • 25 $4.8700
  • 50 $4.6400
  • 100 $4.4100
$4.4100 / $5.3200 Buy Now
DISTI # 25R8349
Newark 128Kb Flash, 4Kb Ram, 1Kb Ee, Nanowatt Xlp, Gp 64 Tqfp 10X10X1Mm T/R Rohs Compliant: Yes |Microchip PIC18F67K22T-I/PT RoHS: Compliant Min Qty: 1200 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,200 $4.5500
$4.5500 Buy Now
DISTI # PIC18F67K22T-I/PT
Avnet Americas - Tape and Reel (Alt: PIC18F67K22T-I/PT) COO: Thailand RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 7 Weeks, 0 Days Container: Reel 0
  • 1,200 $5.3429
  • 2,400 $5.0541
  • 4,800 $4.9211
  • 9,600 $4.7949
  • 19,200 $4.6750
$4.6750 / $5.3429 Buy Now
DISTI # PIC18F67K22T-I/PT
Avnet Americas - Tape and Reel (Alt: PIC18F67K22T-I/PT) COO: Thailand RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Container: Reel 0
RFQ
DISTI # PIC18F67K22T-I/PT
Microchip Technology Inc 128kB Flash, 4kB RAM, 1kB EE, nanoWatt XLP, GP, TQFP, Projected EOL: 2039-03-25 COO: Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel In Stock: 0 and Alternates Available
  • 1 $5.3200
  • 25 $4.8700
  • 100 $4.4100
  • 1,000 $4.0600
  • 5,000 $3.8700
$3.8700 / $5.3200 Buy Now
DISTI # 70436139
RS 64 TQFP 10X10X1MM T/R128KB FLASH, 4KB RAM, 1KB EE, NANOWATT XLP, GP Min Qty: 1200 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 1,200 $5.3200
  • 6,000 $5.0500
  • 12,000 $4.7900
$4.7900 / $5.3200 RFQ
NAC 128kB Flash, 4kB RAM, 1kB EE, nanoWatt XLP, GP. Package: 64 TQFP 10x10x1mm T/R - PIC18 Flash High Pin Count Product Line RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 0
  • 1 $5.5000
  • 100 $4.9900
  • 500 $4.6700
  • 1,000 $4.5600
$4.5600 / $5.5000 Buy Now
DISTI # PIC18F67K22T-I/PT
Avnet Silica (Alt: PIC18F67K22T-I/PT) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock MicrochipPIC18F67K22T-I/PT,8bitPICMicrocontroller,64MHz,1kB,128kBFlash,64-PinTQFP 23500
RFQ
DISTI # PIC18F67K22T-I/PT
EBV Elektronik (Alt: PIC18F67K22T-I/PT) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC MCU 8BIT 128KB FLASH 64TQFP 20000
  • 11 $4.7727
  • 26 $3.9161
  • 40 $3.7937
  • 55 $3.6714
  • 71 $3.5490
  • 95 $3.1818
$3.1818 / $4.7727 Buy Now

US Tariff Estimator: PIC18F67K22T-I/PT by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC18F67K22T-I/PT
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC18F67K22T-I/PT

PIC18F67K22T-I/PT CAD Models

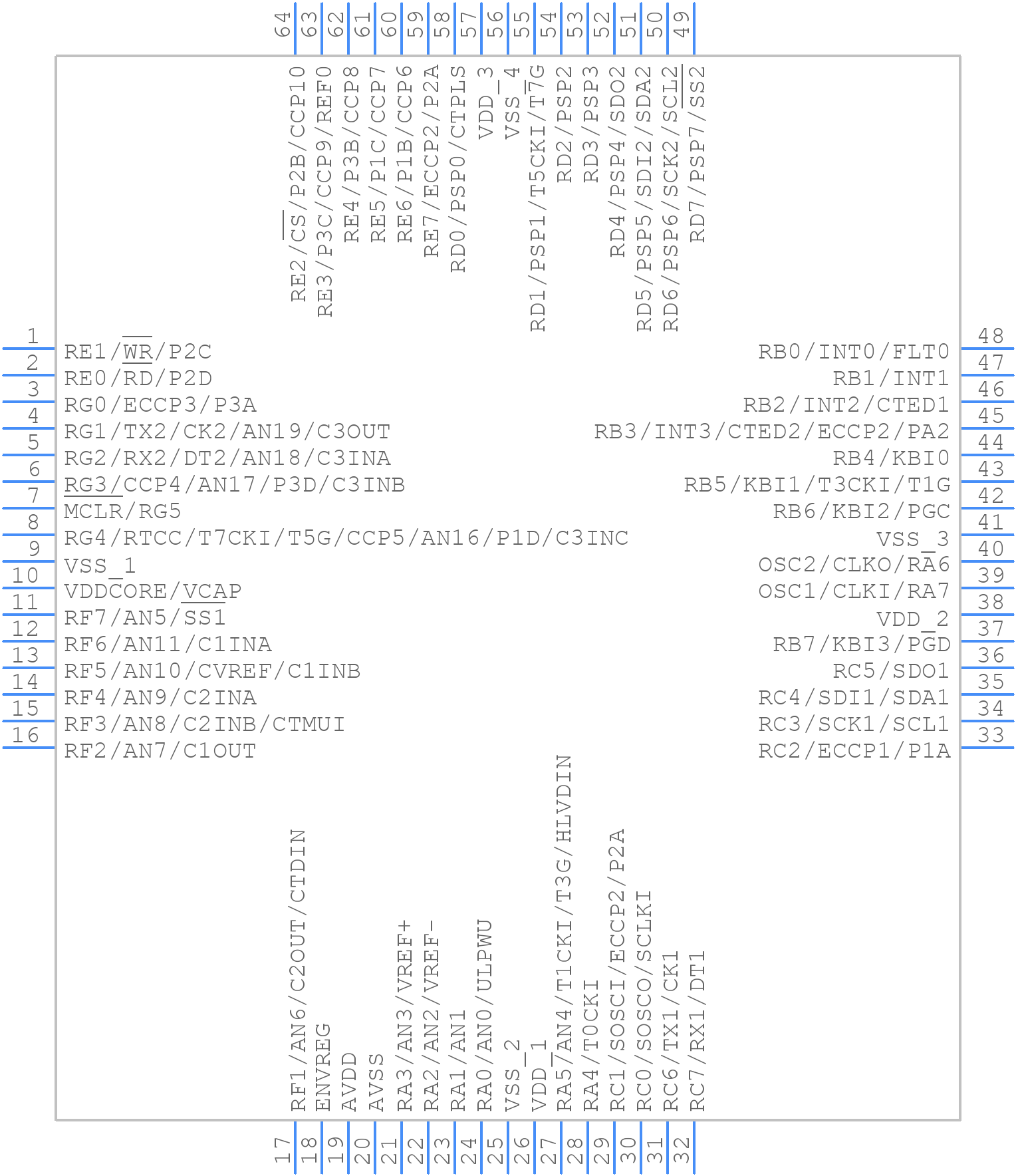

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

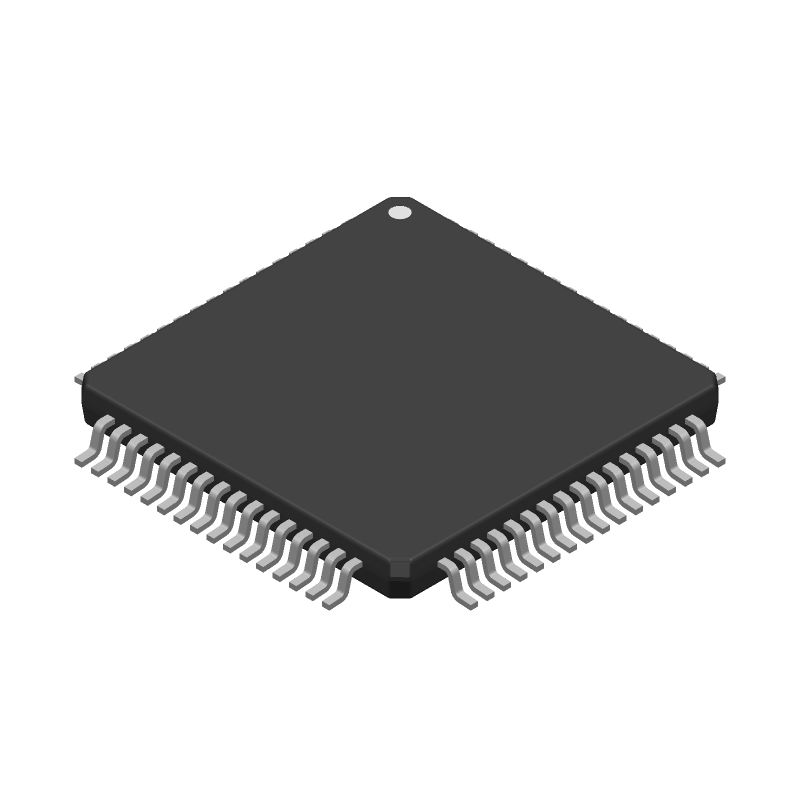

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F67K22T-I/PT Part Data Attributes

Parametric Data
PIC18F67K22T-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F67K22T-I/PT Microchip Technology Inc 128kB Flash, 4kB RAM, 1kB EE, nanoWatt XLP, GP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code QFP
Package Description TFQFP, TQFP64,.47SQ
Pin Count 64
Manufacturer Package Code TQFP-64
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES WITH 1.8 V MINIMUM SUPPLY AT 4 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC18
Clock Frequency-Max 64 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G64
JESD-609 Code e3
Length 10 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 3
Number of I/O Lines 53
Number of Serial I/Os 2
Number of Terminals 64
Number of Timers 13
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TFQFP
Package Equivalence Code TQFP64,.47SQ
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 4096
ROM (words) 131072
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1.2 mm
Speed 64 MHz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 1.8 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 10 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC18F67K22T-I/PT

This table gives cross-reference parts and alternative options found for PIC18F67K22T-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F67K22T-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18F67K22-I/PT Microchip Technology Inc $4.7289 128kB Flash, 4kB RAM, 1kB EE, nanoWatt XLP, GP PIC18F67K22T-I/PT vs PIC18F67K22-I/PT
PIC18F67K22-I/PTRSL Microchip Technology Inc $5.0319 128kB Flash, 4kB RAM, 1kB EE, nanoWatt XLP, GP PIC18F67K22T-I/PT vs PIC18F67K22-I/PTRSL
PIC18F67K22-I/MRRSL Microchip Technology Inc $5.0535 128kB Flash, 4kB RAM, 1kB EE, nanoWatt XLP, GP PIC18F67K22T-I/PT vs PIC18F67K22-I/MRRSL
PIC18F67K22-E/MR Microchip Technology Inc $5.3620 200K low power PIC microcontroller with 128K-32K Flash PIC18F67K22T-I/PT vs PIC18F67K22-E/MR
PIC18F67K22T-E/PT Microchip Technology Inc Check for Price 200K low power PIC micocontroller with 128K-32K Flash PIC18F67K22T-I/PT vs PIC18F67K22T-E/PT
equivalents icon

PIC18F67K22T-I/PT Related Parts

PIC18F67K22T-I/PT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC18F67K22T-I/PT is 64 MHz.

  • The PIC18F67K22T-I/PT has 128 KB of flash memory.

  • Yes, the PIC18F67K22T-I/PT can operate at 5V, but it is recommended to operate it at 3.3V for optimal performance and power consumption.

  • No, the PIC18F67K22T-I/PT does not have built-in USB support. However, it can be implemented using bit-banging or using an external USB controller.

  • The PIC18F67K22T-I/PT can source or sink up to 25 mA on its I/O pins.
