PIC18F8722-I/PT by:
Microchip Technology Inc

80 PIN, 128 KB ENH FLASH, 3936 RAM, 40 MHZ, NONO WATT

Part Details for PIC18F8722-I/PT by Microchip Technology Inc

Results Overview of PIC18F8722-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC18F8722-I/PT Information

PIC18F8722-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC18F8722-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 28AC0977
Newark Tqfp 128 Kb Flash, 4K Ram, 70 I/O Rohs Compliant: Yes |Microchip PIC18F8722-I/PT RoHS: Compliant Min Qty: 119 Package Multiple: 1 Date Code: 0 Container: Bulk 238
  • 1 $13.6500
$13.6500 Buy Now
DISTI # 71J7291
Newark Microcontroller Mcu, 8 Bit, Pic18, 40Mhz, Tqfp-80, Product Range:Pic18 Family Pic18F87Xx Series Microcontrollers, Device Core:Pic18, Operating Frequency Max:40Mhz, Program Memory Size:128Kb, No. Of Pins:80Pins, Ic Case/Package:Tqfprohs Compliant: Yes |Microchip PIC18F8722-I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 25
  • 1 $13.6500
$13.6500 Buy Now
DISTI # PIC18F8722-I/PT
Avnet Americas 8 Bit MCU, PIC18 Family PIC18F87xx Series Microcontrollers, PIC18, 40 MHz, 128 KB, 80 Pins, TQFP - Trays (Alt: PIC18F8722-I/PT) COO: Thailand RoHS: Compliant Min Qty: 119 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Tray 238
  • 119 $14.5600
  • 130 $14.2745
  • 240 $14.0722
  • 600 $13.8755
  • 1,200 $13.6500
$13.6500 / $14.5600 Buy Now
DISTI # 71J7291
Avnet Americas 8 Bit MCU, PIC18 Family PIC18F87xx Series Microcontrollers, PIC18, 40 MHz, 128 KB, 80 Pins, TQFP - Bulk (Alt: 71J7291) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 25 Partner Stock
  • 1 $13.6500
$13.6500 Buy Now
DISTI # PIC18F8722-I/PT
Microchip Technology Inc 80 PIN, 128 KB ENH FLASH, 3936 RAM, 40 MHZ, NONO WATT, TQFP, Projected EOL: 2035-12-01 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray In Stock: 12395 and Alternates Available
  • 1 $12.0900
  • 25 $11.7800
  • 100 $11.5000
  • 1,000 $10.5800
  • 5,000 $10.0600
$10.0600 / $12.0900 Buy Now
DISTI # 70045721
RS PIC MICROCONTROLLER, 8 BIT, 40MHZ,128KB,1024 B FLASH,80-PIN TQFP, PIC 18F SERIES Min Qty: 119 Package Multiple: 1 Lead time: 82 Weeks, 0 Days Container: Bulk 0
  • 119 $16.3800
  • 595 $15.5600
  • 1,190 $14.7400
$14.7400 / $16.3800 RFQ
Bristol Electronics   26
RFQ
DISTI # PIC18F8722-I/PT
TME IC: PIC microcontroller, 128kB, 40MHz, 4.2÷5.5VDC, SMD, TQFP80 Min Qty: 1 111
  • 1 $15.1000
  • 5 $14.3000
  • 25 $14.0000
$14.0000 / $15.1000 Buy Now
NAC 128 KB Flash, 4K RAM, 70 I/O. Package: 80 TQFP 12x12x1mm TRAY - PIC18 Flash High Pin Count Product Line RoHS: Compliant Min Qty: 1 Package Multiple: 119 Container: Tray 15827
  • 1 $15.6000
  • 100 $14.3700
  • 500 $13.6500
  • 800 $13.3200
$13.3200 / $15.6000 Buy Now
DISTI # PIC18F8722-I/PT
Avnet Silica 8 Bit MCU PIC18 Family PIC18F87xx Series Microcontrollers PIC18 40 MHz 128 KB 80 Pins TQFP (Alt: PIC18F8722-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC18F8722-I/PT
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tray 287
  • 1 $13.5000
  • 5 $13.2000
  • 10 $12.4000
  • 50 $11.5000
$11.5000 / $13.5000 Buy Now
Chip Stock RISCMicrocontroller,8-Bit,FLASH,PIC18CPU,40MHz,CMOS,PQFP80 21960
RFQ
DISTI # PIC18F8722-I/PT
EBV Elektronik 8 Bit MCU PIC18 Family PIC18F87xx Series Microcontrollers PIC18 40 MHz 128 KB 80 Pins TQFP (Alt: PIC18F8722-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
DISTI # PIC18F8722-I/PT
Maritex 8-bit MCU Microcontrollers, MICROCHIP, PIC18F8722-I/PT, PIC, 40 MHz, FLASH, 5 Min Qty: 1 Package Multiple: 1 6200
  • 1 $12.6200
$12.6200 Buy Now
Win Source Electronics IC MCU 8BIT 128KB FLASH 80TQFP 3545
  • 4 $13.9285
  • 9 $11.4286
  • 14 $11.0714
  • 19 $10.7143
  • 25 $10.3571
  • 33 $9.2857
$9.2857 / $13.9285 Buy Now

US Tariff Estimator: PIC18F8722-I/PT by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC18F8722-I/PT
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC18F8722-I/PT

PIC18F8722-I/PT CAD Models

  • Part Symbol

    schematic symbol

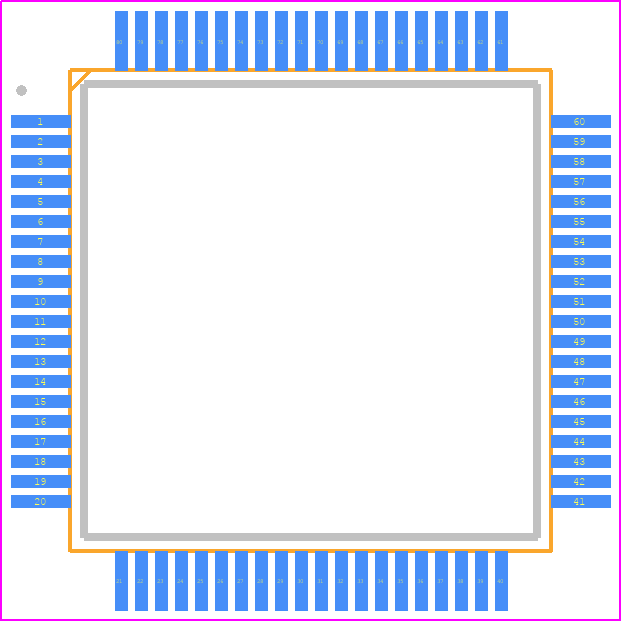

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC18F8722-I/PT Part Data Attributes

Parametric Data
PIC18F8722-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC18F8722-I/PT Microchip Technology Inc 80 PIN, 128 KB ENH FLASH, 3936 RAM, 40 MHZ, NONO WATT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code QFP
Package Description Tqfp, Tqfp80,.55sq
Pin Count 80
Manufacturer Package Code TQFP-80
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Has ADC Yes
Additional Feature Also Operates At Minimum 2v At 4mhz
Address Bus Width 20
Bit Size 8
Boundary Scan No
CPU Family Pic18
Clock Frequency-Max 40 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width 16
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQFP-G80
JESD-609 Code e3
Length 12 Mm
Low Power Mode No
Moisture Sensitivity Level 3
Number of External Interrupts 3
Number of I/O Lines 70
Number of Serial I/Os 2
Number of Terminals 80
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code TQFP
Package Equivalence Code TQFP80,.55SQ
Package Shape Square
Package Style Flatpack, Thin Profile
Qualification Status Not Qualified
RAM (bytes) 3936
ROM (words) 131072
ROM Programmability Flash
Seated Height-Max 1.2 Mm
Speed 40 Mhz
Supply Current-Max 1.4 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 5 V
Supply Voltage-Nom 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Width 12 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC18F8722-I/PT

This table gives cross-reference parts and alternative options found for PIC18F8722-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC18F8722-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC18F8722-E/PT Microchip Technology Inc $17.0900 80 Pin, 128 KB Enh Flash, 3936 RAM, 25 MHz, nanoWatt PIC18F8722-I/PT vs PIC18F8722-E/PT
PIC18LF8722-I/PT Microchip Technology Inc Check for Price 80 PIN, 128 KB ENH FLASH, 3936 RAM, 40 MHZ, NONO WATT PIC18F8722-I/PT vs PIC18LF8722-I/PT
PIC18F8722T-I/PT Microchip Technology Inc Check for Price 80 PIN, 128 KB ENH FLASH, 3936 RAM, 40 MHZ, NANO WATT PIC18F8722-I/PT vs PIC18F8722T-I/PT
equivalents icon

PIC18F8722-I/PT Related Parts

PIC18F8722-I/PT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC18F8722 is 40 MHz.

  • The PIC18F8722 has 128 KB of flash memory.

  • Yes, the PIC18F8722 is rated for operation in industrial temperature ranges (-40°C to +85°C) and can be used in harsh environments.

  • No, the PIC18F8722 does not have built-in USB support. However, it can be used with external USB controllers or implemented using bit-banging techniques.

  • The PIC18F8722 has 13 ADC channels.
