PIC24F04KA200-I/ST by: Microchip Technology Inc

4KB Flash, 512B RAM, 3V, Deep Sleep, 10-bit 500ksps ADC, nanoWatt XLP

Part Details for PIC24F04KA200-I/ST by Microchip Technology Inc

Results Overview of PIC24F04KA200-I/ST by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

PIC24F04KA200-I/ST Information

PIC24F04KA200-I/ST by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC24F04KA200-I/ST

Part # Distributor Description Stock Price Buy
DISTI # 26R2856
Newark 16 Bit Microcontroller, General Purpose, Pic24F, 32 Mhz, 4 Kb, 512 Byte, 14, Tssop Rohs Compliant: Yes |Microchip PIC24F04KA200-I/ST RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 5028
  • 1 $1.8700
  • 10 $1.7800
  • 25 $1.6800
  • 50 $1.6100
  • 192 $1.5400
$1.5400 / $1.8700 Buy Now
DISTI # PIC24F04KA200-I/ST
Avnet Americas 16 Bit Microcontroller, PIC24 Family PIC24 KA Series Microcontrollers, PIC24, 16 bit, 32 MHz - Rail/Tube (Alt: PIC24F04KA200-I/ST) COO: Thailand RoHS: Compliant Min Qty: 384 Package Multiple: 96 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 384 $1.8714
  • 576 $1.7703
  • 960 $1.7237
  • 1,920 $1.6795
  • 3,840 $1.6375
$1.6375 / $1.8714 Buy Now
DISTI # PIC24F04KA200-I/ST
Microchip Technology Inc 4KB Flash, 512B RAM, 3V, Deep Sleep, 10-bit 500ksps ADC, nanoWatt XLP, TSSOP, Projected EOL: 2034-06-05 COO: Malaysia, Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 960 and Alternates Available
Incoming: 21 expected 12/3/2025
  • 1 $1.8700
  • 25 $1.6800
  • 100 $1.5400
  • 1,000 $1.4200
  • 5,000 $1.3600
$1.3600 / $1.8700 Buy Now
DISTI # 70047247
RS PIC24F CORE, 4KB FLASH, 512B RAM, 3V, DEEP SLEEP, 10-BIT 500KSPS ADC, CTMU, UART Min Qty: 480 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 480 $1.8700
  • 2,400 $1.7800
  • 4,800 $1.6800
$1.6800 / $1.8700 RFQ
DISTI # 24F04KA200-I/ST
TME IC: PIC microcontroller, 4kB, I2C,IrDA,LIN,SPI,UART, 1.8÷3.6VDC Min Qty: 1 241
  • 1 $1.9000
  • 5 $1.8400
  • 25 $1.6700
  • 96 $1.6200
$1.6200 / $1.9000 Buy Now
NAC PIC24F Core, 4KB Flash, 512B RAM, 3V, Deep Sleep, 10-bit 500ksps ADC, CTMU, UART, SPI, I2C, Comparators, nanoWatt XLP. Package: 14 TSSOP 4.4mm TUBE - PIC24FJ 3V Family Products Product Line RoHS: Compliant Min Qty: 192 Package Multiple: 96 Container: Tube 0
  • 1 $2.0200
  • 100 $1.8200
  • 500 $1.6800
  • 1,000 $1.6400
$1.6400 / $2.0200 Buy Now
DISTI # PIC24F04KA200-I/ST
Avnet Silica 16 Bit Microcontroller PIC24 Family PIC24 KA Series Microcontrollers PIC24 16 bit 32 MHz (Alt: PIC24F04KA200-I/ST) RoHS: Compliant Min Qty: 384 Package Multiple: 96 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock 16BitMicrocontroller,PIC24FamilyPIC24KASeriesMicrocontrollers,PIC24,16bit,32MHz 3500
RFQ
DISTI # PIC24F04KA200-I/ST
EBV Elektronik 16 Bit Microcontroller PIC24 Family PIC24 KA Series Microcontrollers PIC24 16 bit 32 MHz (Alt: PIC24F04KA200-I/ST) RoHS: Compliant Min Qty: 384 Package Multiple: 96 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
LCSC PIC 32MHz 12 TSSOP-14 Microcontrollers RoHS 25
  • 1 $2.4817
  • 10 $2.4234
  • 30 $2.3835
  • 100 $2.3436
$2.3436 / $2.4817 Buy Now

US Tariff Estimator: PIC24F04KA200-I/ST by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC24F04KA200-I/ST
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC24F04KA200-I/ST

PIC24F04KA200-I/ST CAD Models

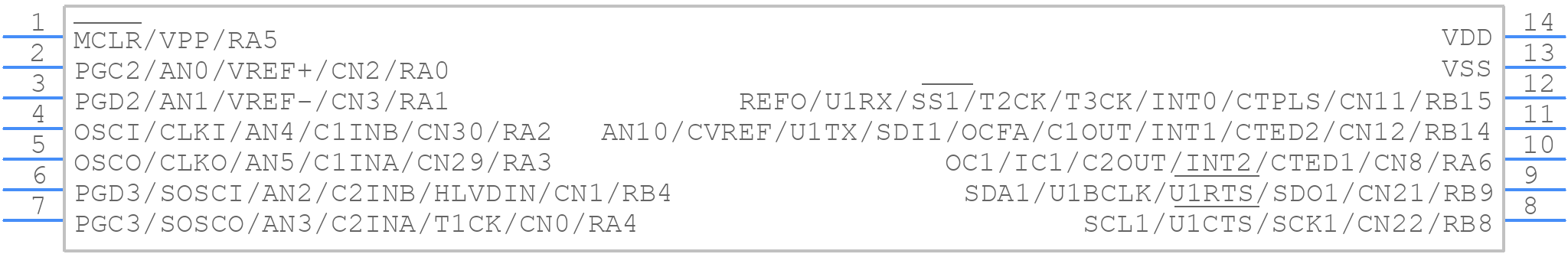

  • Part Symbol
