Microcontrollers and Processors / Microcontrollers / PIC24FJ128GA610-I/PT
Datasheets
PIC24FJ128GA610-I/PT by:
Microchip Technology Inc

16-bit PIC24F at 16MIPS, 128KB Flash, 32KB RAM, 100 pin, IC, OC, CTMU, CLC

Part Details for PIC24FJ128GA610-I/PT by Microchip Technology Inc

Results Overview of PIC24FJ128GA610-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC24FJ128GA610-I/PT Information

PIC24FJ128GA610-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC24FJ128GA610-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 72Y1514
Newark Mcu, 16Bit, 32Mhz, Tqfp-100, Product Range:Pic24 Family Pic24Fjga Series Microcontrollers, Device Core:Pic24, Data Bus Width:16 Bit, Operating Frequency Max:32Mhz, Program Memory Size:128Kb, No. Of Pins:100Pins, No. Of I/O S:85I/O S Rohs Compliant: Yes |Microchip PIC24FJ128GA610-I/PT RoHS: Compliant Min Qty: 238 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $4.5100
$4.5100 Buy Now
DISTI # PIC24FJ128GA610-I/PT
Avnet Americas 16-BIT 16 MIPS 128KB FLASH 32KB RAM DUAL PARTITION FLASH - Trays (Alt: PIC24FJ128GA610-I/PT) COO: Thailand RoHS: Compliant Min Qty: 238 Package Multiple: 119 Lead time: 5 Weeks, 0 Days Container: Tray 0
  • 238 $5.3143
  • 476 $5.0270
  • 952 $4.8947
  • 1,904 $4.7692
  • 3,808 $4.6500
$4.6500 / $5.3143 Buy Now
DISTI # PIC24FJ128GA610-I/PT
Microchip Technology Inc 16-bit PIC24F at 16MIPS, 128KB Flash, 32KB RAM, 100 pin, IC, OC, CTMU, CLC, TQFP, Projected EOL: 2040-11-02 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tray In Stock: 1761 and Alternates Available
  • 1 $5.2700
  • 25 $4.8400
  • 100 $4.3700
  • 1,000 $4.0200
  • 5,000 $3.8300
$3.8300 / $5.2700 Buy Now
DISTI # 24FJ128GA610-I/PT
TME IC: PIC microcontroller, 128kB, I2C x3,I2S x3,SPI x3,UART x6 Min Qty: 1 0
  • 1 $5.4900
  • 5 $4.9900
  • 25 $4.8500
  • 100 $4.5600
$4.5600 / $5.4900 RFQ
NAC 16-bit, 16 MIPS, 128KB Flash, 32KB RAM, Dual Partition Flash. Package: 100 TQFP 12x12x1mm TRAY - PIC24FJ 3V Family Products Product Line RoHS: Compliant Min Qty: 119 Package Multiple: 119 Container: Tray 0
  • 1 $5.4700
  • 100 $4.9600
  • 500 $4.6500
  • 1,000 $4.5400
$4.5400 / $5.4700 Buy Now
Chip Stock 16-bitMCU/DSC,128KB,32768Bytes,32MHz,2to3.6V,TQFP-100,RoHS 3000
RFQ
DISTI # PIC24FJ128GA610-I/PT
EBV Elektronik 16BIT 16 MIPS 128KB FLASH 32KB RAM DUAL PARTITION FLASH (Alt: PIC24FJ128GA610-I/PT) RoHS: Compliant Min Qty: 238 Package Multiple: 119 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PIC24FJ128GA610-I/PT by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC24FJ128GA610-I/PT
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC24FJ128GA610-I/PT

PIC24FJ128GA610-I/PT CAD Models

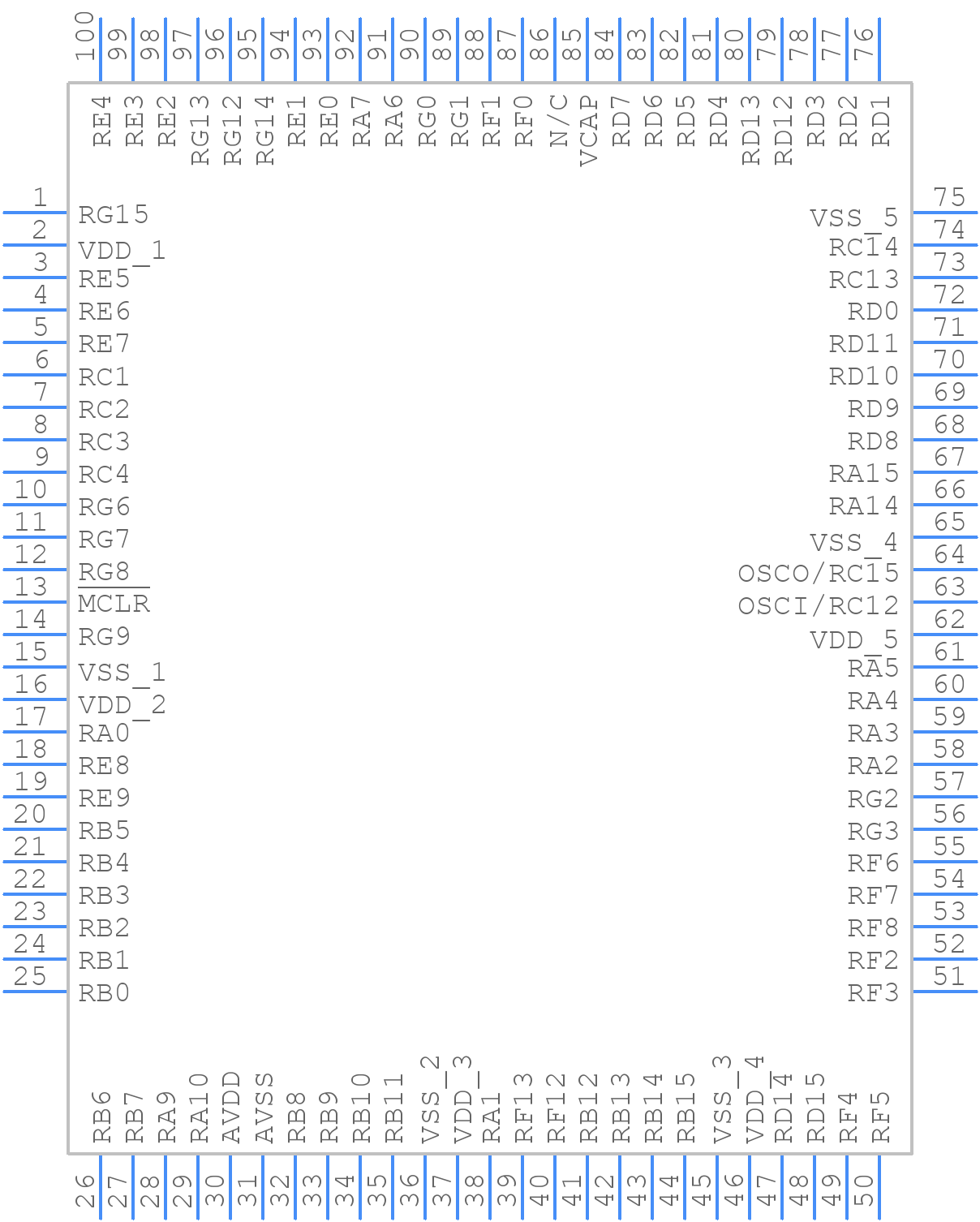

  • Part Symbol

    schematic symbol

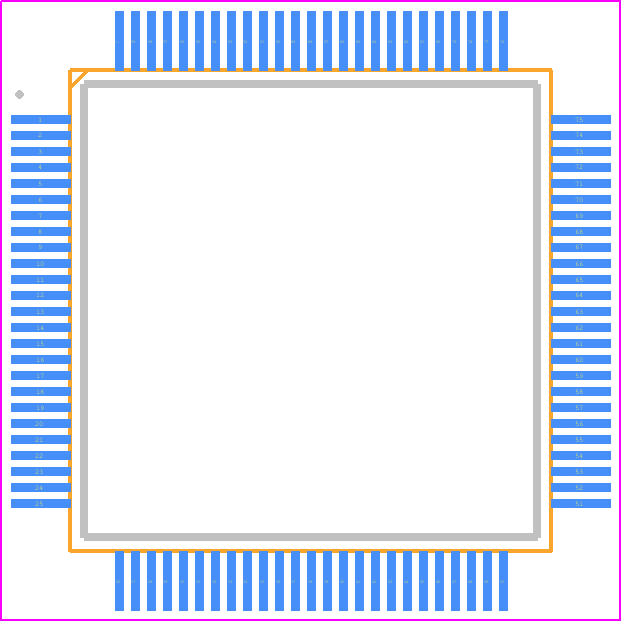

  • Footprint

    pcb footprint

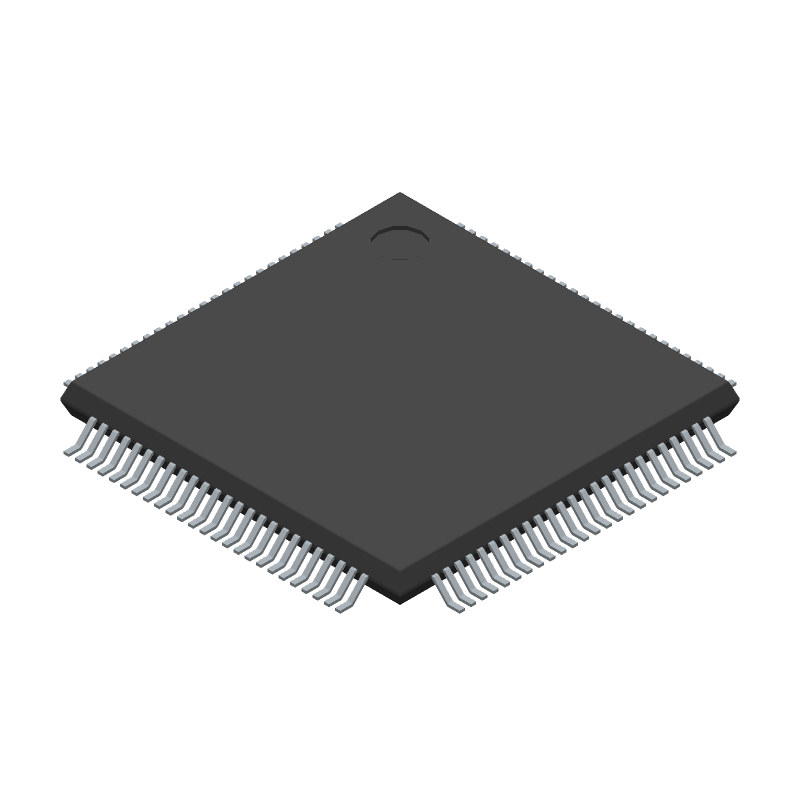

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC24FJ128GA610-I/PT Part Data Attributes

Parametric Data
PIC24FJ128GA610-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC24FJ128GA610-I/PT Microchip Technology Inc 16-bit PIC24F at 16MIPS, 128KB Flash, 32KB RAM, 100 pin, IC, OC, CTMU, CLC
Rohs Code Yes
Part Life Cycle Code Active
Package Description Tfqfp, Tqfp100,.55sq,16
Pin Count 100
Manufacturer Package Code TQFP-100
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Schedule B Code 8542.31.00.00
Factory Lead Time 5 Weeks
CAGE Code 60991, FA8G0, 0HSW3, 0J4Z0
UNSPSC 32101628
kg CO2e/kg 11.6
Average Weight (mg) 499.175
CO2e (mg) 5790.43
Samacsys Description 16-Bit Microcontrollers - Mcu 16-Bit Mcu, 16 Mips 128k Flash, 32k Ram
Samacsys Modified On 2023-03-07 16:10:32
Total Weight 391
Category CO2 Kg 465
CO2 181815
Compliance Temperature Grade Industrial: -40c To +85c
EU RoHS Version Rohs 2 (2015/863/Eu)
Candidate List Date 2025-06-25
CAS Accounted for Wt 88
CA Prop 65 Presence Yes
CA Prop 65 CAS Numbers 1333-86-4, 7440-02-0
EFUP E
Conflict Mineral Status Drc Conflict Free
Conflict Mineral Status Source Cmrt V6.22
Has ADC Yes
Additional Feature Its Also Available With 24-Ch 10-Bit
Address Bus Width 24
Bit Size 16
Boundary Scan Yes
CPU Family Pic24
Clock Frequency-Max 32 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width 16
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 12 Mm
Low Power Mode Yes
Moisture Sensitivity Level 3
Number of External Interrupts 5
Number of I/O Lines 85
Number of Serial I/Os 1
Number of Terminals 100
Number of Timers 7
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code TFQFP
Package Equivalence Code TQFP100,.55SQ,16
Package Shape Square
Package Style Flatpack, Thin Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
RAM (bytes) 32768
ROM (words) 131072
ROM Programmability Flash
Screening Level Iso/Ts-16949
Seated Height-Max 1.2 Mm
Speed 32 Mhz
Supply Current-Max 7.7 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.4 Mm
Terminal Position Quad
Width 12 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC24FJ128GA610-I/PT

This table gives cross-reference parts and alternative options found for PIC24FJ128GA610-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC24FJ128GA610-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC24FJ128GA610-I/BG Microchip Technology Inc $5.0098 16-bit PIC24F at 16MIPS, 128KB Flash, 32KB RAM, 100 pin, IC, OC, CTMU, CLC PIC24FJ128GA610-I/PT vs PIC24FJ128GA610-I/BG
PIC24FJ128GA610T-I/BG Microchip Technology Inc $5.6400 16-bit PIC24F at 16MIPS, 128KB Flash, 32KB RAM, 100 pin, IC, OC, CTMU, CLC PIC24FJ128GA610-I/PT vs PIC24FJ128GA610T-I/BG
PIC24FJ128GA610T-I/PT Microchip Technology Inc Check for Price 16-bit PIC24F at 16MIPS, 128KB Flash, 32KB RAM, 100 pin, IC, OC, CTMU, CLC PIC24FJ128GA610-I/PT vs PIC24FJ128GA610T-I/PT
equivalents icon

PIC24FJ128GA610-I/PT Related Parts

PIC24FJ128GA610-I/PT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC24FJ128GA610-I/PT is 32 MHz.

  • The PIC24FJ128GA610-I/PT has 128 KB of flash memory.

  • No, the PIC24FJ128GA610-I/PT is a 3.3V device and should not be operated at 5V.

  • No, the PIC24FJ128GA610-I/PT does not have a built-in USB interface. However, it can be used with an external USB transceiver chip.

  • The PIC24FJ128GA610-I/PT has two UARTs (UART1 and UART2).
