Microcontrollers and Processors / Microcontrollers / PIC32MK1024GPE100-I/PT
Datasheets
PIC32MK1024GPE100-I/PT by:
Microchip Technology Inc

32 Bit MCU, FPU, 1MB Flash, 256KB RAM, EEPROM, 120MHz, 100Pin, USB, CAN

Part Details for PIC32MK1024GPE100-I/PT by Microchip Technology Inc

Results Overview of PIC32MK1024GPE100-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC32MK1024GPE100-I/PT Information

PIC32MK1024GPE100-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC32MK1024GPE100-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 23AC8723
Newark Mcu, 32Bit, Pic32, 120Mhz, Tqfn, Product Range:Pic32 Family Pic32Mkgp Series Microcontrollers, Device Core:Pic32, Data Bus Width:32 Bit, Operating Frequency Max:120Mhz, Program Memory Size:1Mb, No. Of Pins:100Pins, Qualification:- Rohs Compliant: Yes |Microchip PIC32MK1024GPE100-I/PT RoHS: Compliant Min Qty: 119 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $8.9700
  • 357 $8.6600
$8.6600 / $8.9700 Buy Now
DISTI # PIC32MK1024GPE100-I/PT
Avnet Americas 32-bit General Purpose and Motor Control Application Microcontroller 1 Mbyte Flash 256 Kbyte SRAM 4 Kbyte EEPROM with FPU 100-Pin TQFP Tray - Trays (Alt: PIC32MK1024GPE100-I/PT) COO: Thailand RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 6 Weeks, 0 Days Container: Tray 0
  • 119 $10.5286
  • 238 $9.9595
  • 476 $9.6974
  • 714 $9.4487
  • 952 $9.2125
$9.2125 / $10.5286 Buy Now
DISTI # PIC32MK1024GPE100-I/PT
Microchip Technology Inc 32 Bit MCU, FPU, 1MB Flash, 256KB RAM, EEPROM, 120MHz, 100Pin, USB, CAN, TQFP, Projected EOL: 2044-04-18 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray In Stock: 748 and Alternates Available
  • 1 $10.4400
  • 25 $9.5800
  • 100 $8.6600
  • 1,000 $7.9700
  • 5,000 $7.5900
$7.5900 / $10.4400 Buy Now
Rochester Electronics RISC Microcontroller, 32-Bit, FLASH, PIC32 CPU, 120MHz, CMOS, PQFP100 RoHS: Compliant Status: Active Min Qty: 1 8
  • 25 $9.6700
  • 100 $9.1900
  • 500 $8.7000
  • 1,000 $8.2200
  • 10,000 $7.7400
$7.7400 / $9.6700 Buy Now
DISTI # PIC32MK1024GPE100-I/PT
IBS Electronics 32 BIT MCU FPU 1MB FLASH 256KB RAM EEPROM 120MHZ 100PIN USB CAN Min Qty: 5 Package Multiple: 1 476
  • 5 $11.1720
  • 25 $10.6540
  • 50 $10.4860
  • 119 $10.3320
  • 357 $10.1780
$10.1780 / $11.1720 Buy Now
NAC MCU32, 120MHz, 4 I2C, 6 I2S, USB FS, CAN 2.0B, 12-bit ADC. Package: 100 TQFP 12x12x1mm TRAY - PIC32 MX Series Product Line RoHS: Compliant Min Qty: 119 Package Multiple: 119 Container: Tray 0
  • 1 $10.8400
  • 100 $9.8300
  • 500 $9.2100
  • 1,000 $8.9900
$8.9900 / $10.8400 Buy Now
DISTI # PIC32MK1024GPE100-I/PT
Avnet Silica 32bit General Purpose and Motor Control Application Microcontroller 1 Mbyte Flash 256 Kbyte SRAM 4 Kbyte EEPROM with FPU 100Pin TQFP Tray (Alt: PIC32MK1024GPE100-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock 32BitMcu,Fpu,1MBFlash,256KBRam,EEPROM,120MHZ,100PIN,Usb,Can 10900
RFQ
DISTI # PIC32MK1024GPE100-I/PT
EBV Elektronik 32bit General Purpose and Motor Control Application Microcontroller 1 Mbyte Flash 256 Kbyte SRAM 4 Kbyte EEPROM with FPU 100Pin TQFP Tray (Alt: PIC32MK1024GPE100-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
DISTI # PIC32MK1024GPE100-I/PT
Maritex 32-bit MCU Microcontrollers, MICROCHIP, PIC32MK1024GPE100-I/PT, 1 MB, CAN, I2C, I2S, IrDA, LIN, SPI, UART, USB, FLASH, TQFP Min Qty: 1 Package Multiple: 1 3040
  • 1 $22.8860
$22.8860 Buy Now
Win Source Electronics IC MCU 32BIT 1MB FLASH 100TQFP / MIPS32® microAptiv™ series Microcontroller IC 32-Bit Single-Core 120MHz 1MB (1M x 8) FLASH 100-TQFP (12x12) 9400
  • 2 $29.3774
  • 5 $24.1049
  • 8 $23.3518
  • 11 $22.5987
  • 14 $21.8445
  • 18 $19.5853
$19.5853 / $29.3774 Buy Now

US Tariff Estimator: PIC32MK1024GPE100-I/PT by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC32MK1024GPE100-I/PT
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC32MK1024GPE100-I/PT

PIC32MK1024GPE100-I/PT CAD Models

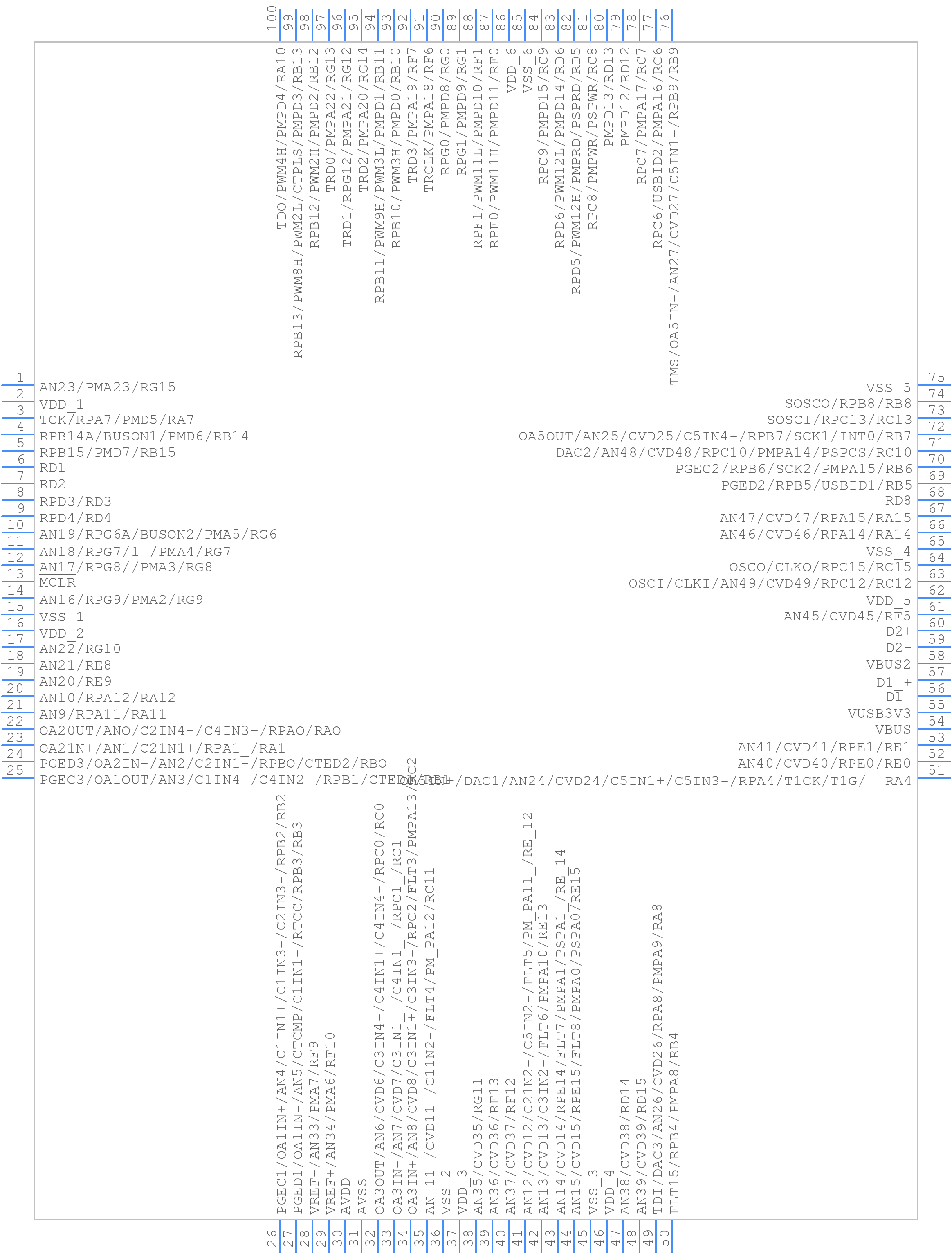

  • Part Symbol

    schematic symbol

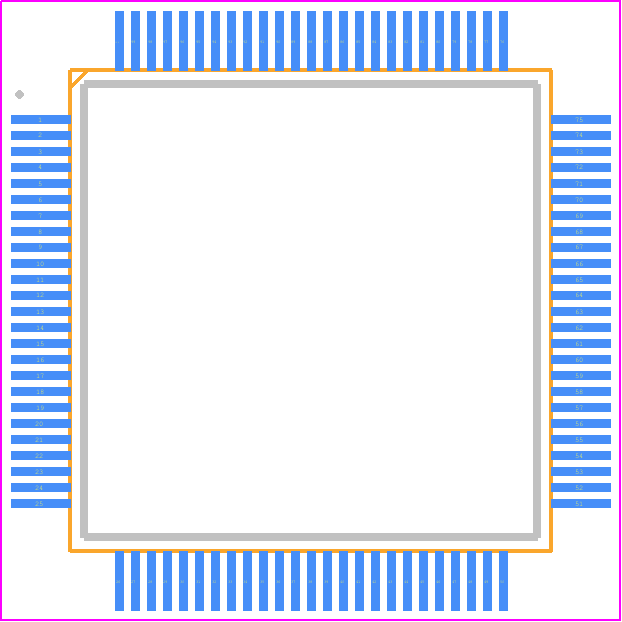

  • Footprint

    pcb footprint

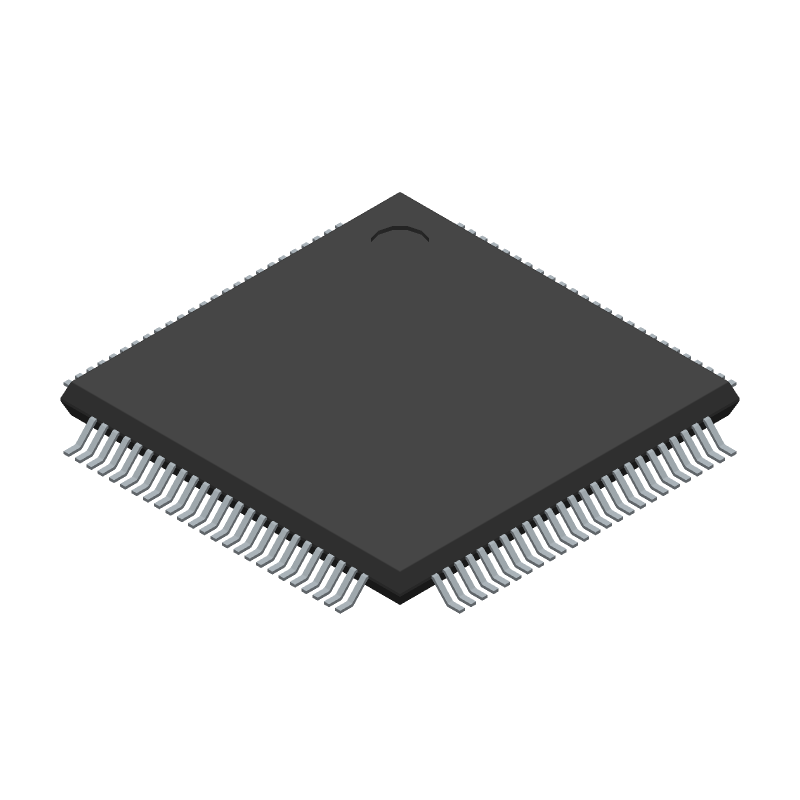

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC32MK1024GPE100-I/PT Part Data Attributes

Parametric Data
PIC32MK1024GPE100-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC32MK1024GPE100-I/PT Microchip Technology Inc 32 Bit MCU, FPU, 1MB Flash, 256KB RAM, EEPROM, 120MHz, 100Pin, USB, CAN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Tfqfp, Tqfp100,.55sq,16
Pin Count 100
Manufacturer Package Code TQFP-100
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan Yes
CPU Family Pic32
Clock Frequency-Max 64 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width
Format Floating Point
Integrated Cache Yes
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 12 Mm
Low Power Mode Yes
Moisture Sensitivity Level 3
Number of DMA Channels 8
Number of External Interrupts 5
Number of I/O Lines 77
Number of Serial I/Os 10
Number of Terminals 100
Number of Timers 12
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels No
Package Body Material Plastic/Epoxy
Package Code TFQFP
Package Equivalence Code TQFP100,.55SQ,16
Package Shape Square
Package Style Flatpack, Thin Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
RAM (bytes) 262144
ROM (words) 1048576
ROM Programmability Flash
Seated Height-Max 1.2 Mm
Speed 120 Mhz
Supply Current-Max 57 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.4 Mm
Terminal Position Quad
Width 12 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC32MK1024GPE100-I/PT

This table gives cross-reference parts and alternative options found for PIC32MK1024GPE100-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC32MK1024GPE100-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC32MK1024GPE100T-E/PT Microchip Technology Inc Check for Price 32 Bit MCU, FPU, 1MB Flash, 256KB RAM, EEPROM, 120MHz, 100Pin, USB, CAN PIC32MK1024GPE100-I/PT vs PIC32MK1024GPE100T-E/PT
PIC32MK1024GPE100T-I/PT Microchip Technology Inc Check for Price 32 Bit MCU, FPU, 1MB Flash, 256KB RAM, EEPROM, 120MHz, 100Pin, USB, CAN PIC32MK1024GPE100-I/PT vs PIC32MK1024GPE100T-I/PT
equivalents icon

PIC32MK1024GPE100-I/PT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC32MK1024GPE100-I/PT is 120 MHz.

  • The PIC32MK1024GPE100-I/PT has 1024 KB (1 MB) of flash memory.

  • The operating voltage range of the PIC32MK1024GPE100-I/PT is 2.2V to 3.6V.

  • Yes, the PIC32MK1024GPE100-I/PT has a built-in USB 2.0 OTG interface.

  • The PIC32MK1024GPE100-I/PT has 128 KB of RAM.
