PIC32MX270F256D-50I/PT by:
Microchip Technology Inc

32 Bit MCU, 256KB Flash, 64KB RAM, 50 MHz, 44 Pin, USB, 3 Comp, CTMU, RTCC

Part Details for PIC32MX270F256D-50I/PT by Microchip Technology Inc

Results Overview of PIC32MX270F256D-50I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC32MX270F256D-50I/PT Information

PIC32MX270F256D-50I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC32MX270F256D-50I/PT

Part # Distributor Description Stock Price Buy
DISTI # 94X2398
Newark 32 Bit Microcontroller, Audio And Graphics Interface, Pic32 Mx, 50 Mhz, 256 Kb, 64 Kb, 44, Tqfp Rohs Compliant: Yes |Microchip PIC32MX270F256D-50I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 157
  • 1 $5.9300
  • 10 $5.6900
  • 25 $5.4500
  • 50 $5.2000
  • 100 $4.9400
$4.9400 / $5.9300 Buy Now
DISTI # PIC32MX270F256D-50I/PT
Avnet Americas MCU 32-Bit PIC32 PIC RISC 256KB Flash 2.5V/3.3V 44-Pin TQFP Tray - Trays (Alt: PIC32MX270F256D-50I/PT) COO: Thailand RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 7 Weeks, 0 Days Container: Tray 0
  • 160 $5.9857
  • 320 $5.6622
  • 640 $5.5132
  • 1,280 $5.3718
  • 2,560 $5.2375
$5.2375 / $5.9857 Buy Now
DISTI # PIC32MX270F256D-50I/PT
Microchip Technology Inc 32 Bit MCU, 256KB Flash, 64KB RAM, 50 MHz, 44 Pin, USB, 3 Comp, CTMU, RTCC, TQFP, Projected EOL: 2039-06-12 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray In Stock: 655 and Alternates Available
  • 1 $5.9300
  • 25 $5.4500
  • 100 $4.9400
  • 1,000 $4.5400
  • 5,000 $4.3200
$4.3200 / $5.9300 Buy Now
DISTI # 70543193
RS 256KB FLASH, 64KB RAM, 50MHZ, 10-BIT ADC, UART, SPI/I2S, I2C, CTMU, USB Min Qty: 160 Package Multiple: 1 Lead time: 38 Weeks, 0 Days Container: Bulk 0
  • 160 $5.9300
  • 800 $5.6300
  • 1,600 $5.3400
$5.3400 / $5.9300 RFQ
DISTI # 32MX270F256D-50IPT
TME IC: PIC microcontroller, 256kB, 2.3÷3.6VDC, SMD, TQFP44, PIC32 Min Qty: 1 0
  • 1 $6.2800
  • 5 $5.9100
  • 25 $5.5500
  • 100 $5.2300
$5.2300 / $6.2800 RFQ
NAC 32 Bit MCU, 256KB Flash, 64KB RAM, 50 MHz, 44 Pin, USB, 3 Comp, CTMU, RTCC. Package: 44 TQFP 10x10x1mm TRAY - PIC32 MX Series Product Line RoHS: Compliant Min Qty: 160 Package Multiple: 160 Container: Tray 0
  • 1 $6.1600
  • 100 $5.5900
  • 500 $5.2400
  • 1,000 $5.1100
$5.1100 / $6.1600 Buy Now
DISTI # PIC32MX270F256D-50I/PT
Avnet Silica MCU 32Bit PIC32 PIC RISC 256KB Flash 25V33V 44Pin TQFP Tray (Alt: PIC32MX270F256D-50I/PT) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock 32BitMCU,256KBFlash,64KBRAM,50MHz,44Pin,USB,3Comp,CTMU,RTCC 591
RFQ
DISTI # PIC32MX270F256D-50I/PT
EBV Elektronik MCU 32Bit PIC32 PIC RISC 256KB Flash 25V33V 44Pin TQFP Tray (Alt: PIC32MX270F256D-50I/PT) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
LCSC Other Series 50MHz 33 TQFP-44(10x10) Microcontrollers RoHS 5
  • 1 $7.1055
  • 10 $6.9242
  • 30 $6.8028
  • 100 $6.6830
$6.6830 / $7.1055 Buy Now

US Tariff Estimator: PIC32MX270F256D-50I/PT by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC32MX270F256D-50I/PT
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC32MX270F256D-50I/PT

PIC32MX270F256D-50I/PT CAD Models

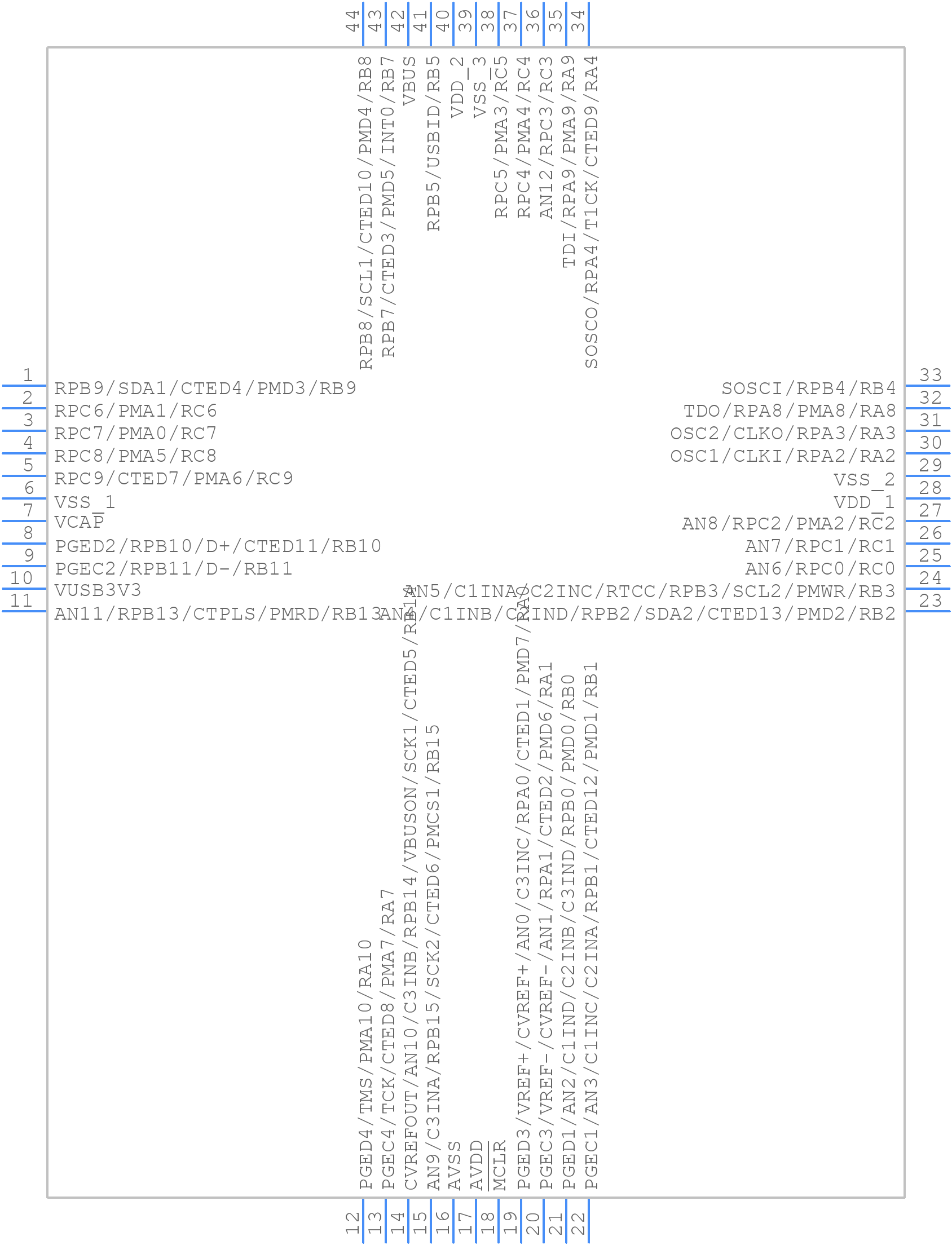

  • Part Symbol

    schematic symbol

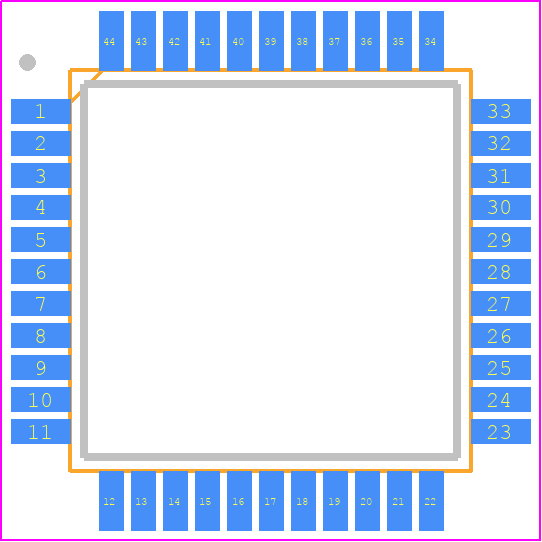

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC32MX270F256D-50I/PT Part Data Attributes

Parametric Data
PIC32MX270F256D-50I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC32MX270F256D-50I/PT Microchip Technology Inc 32 Bit MCU, 256KB Flash, 64KB RAM, 50 MHz, 44 Pin, USB, 3 Comp, CTMU, RTCC
Rohs Code Yes
Part Life Cycle Code Active
Package Description Tqfp, Tqfp44,.39sq,31
Pin Count 44
Manufacturer Package Code TQFP-44
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Has ADC Yes
Additional Feature This Device Features 3kbyte Of Boot Flash Memory
Address Bus Width
Bit Size 32
Boundary Scan Yes
CPU Family Pic32
Clock Frequency-Max 50 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width
Format Fixed Point
Integrated Cache Yes
JESD-30 Code S-PQFP-G44
JESD-609 Code e3
Length 10 Mm
Low Power Mode Yes
Number of DMA Channels 4
Number of External Interrupts 5
Number of I/O Lines 33
Number of Serial I/Os 4
Number of Terminals 44
Number of Timers 7
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code TQFP
Package Equivalence Code TQFP44,.39SQ,31
Package Shape Square
Package Style Flatpack, Thin Profile
RAM (bytes) 65536
ROM (words) 262144
ROM Programmability Flash
Screening Level Ts 16949
Seated Height-Max 1.2 Mm
Speed 50 Mhz
Supply Current-Max 37 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.8 Mm
Terminal Position Quad
Width 10 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC32MX270F256D-50I/PT

This table gives cross-reference parts and alternative options found for PIC32MX270F256D-50I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC32MX270F256D-50I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC32MX270F256D-50I/TL Microchip Technology Inc $4.0056 32 Bit MCU, 256KB Flash, 64KB RAM, 50 MHz, 44 Pin, USB, 3 Comp, CTMU, RTCC PIC32MX270F256D-50I/PT vs PIC32MX270F256D-50I/TL
PIC32MX270F256DT-50I/PT Microchip Technology Inc $6.1100 32 Bit MCU, 256KB Flash, 64KB RAM, 50 MHz, 44 Pin, USB, 3 Comp, CTMU, RTCC PIC32MX270F256D-50I/PT vs PIC32MX270F256DT-50I/PT
equivalents icon

PIC32MX270F256D-50I/PT Related Parts

PIC32MX270F256D-50I/PT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC32MX270F256D-50I/PT is 50 MHz.

  • The PIC32MX270F256D-50I/PT has 256 KB of flash memory.

  • The operating voltage range of the PIC32MX270F256D-50I/PT is 2.3V to 3.6V.

  • Yes, the PIC32MX270F256D-50I/PT has a built-in USB 2.0 OTG interface.

  • The PIC32MX270F256D-50I/PT has 4 UARTs.
