PIC32MX350F256L-I/PT by:
Microchip Technology Inc

32 Bit MCU, 256KB Flash, 64KB RAM, 100 MHz, 100 Pin, 2 Comp, CTMU, RTCC

Part Details for PIC32MX350F256L-I/PT by Microchip Technology Inc

Results Overview of PIC32MX350F256L-I/PT by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

PIC32MX350F256L-I/PT Information

PIC32MX350F256L-I/PT by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC32MX350F256L-I/PT

Part # Distributor Description Stock Price Buy
DISTI # 06X0654
Newark 32 Bit Microcontroller, General Performance, Pic32, 80 Mhz, 256 Kb, 64 Kb, 100, Tqfp Rohs Compliant: Yes |Microchip PIC32MX350F256L-I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2511
  • 1 $10.3800
  • 10 $10.0700
  • 25 $9.7600
  • 50 $9.4500
  • 100 $9.1400
$9.1400 / $10.3800 Buy Now
DISTI # PIC32MX350F256L-I/PT
Avnet Americas MCU 32-Bit PIC32 PIC RISC 256KB Flash 2.5V/3.3V 100-Pin TQFP Tray - Trays (Alt: PIC32MX350F256L-I/PT) COO: Thailand RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 7 Weeks, 0 Days Container: Tray 0
  • 119 $7.4143
  • 238 $7.0135
  • 476 $6.8289
  • 952 $6.6539
  • 1,904 $6.4875
$6.4875 / $7.4143 Buy Now
DISTI # PIC32MX350F256L-I/PT
Microchip Technology Inc 32 Bit MCU, 256KB Flash, 64KB RAM, 100 MHz, 100 Pin, 2 Comp, CTMU, RTCC, TQFP, Projected EOL: 2039-05-31 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray In Stock: 119 and Alternates Available
  • 1 $7.3600
  • 25 $6.7400
  • 100 $6.1200
  • 1,000 $5.6300
  • 5,000 $5.3400
$5.3400 / $7.3600 Buy Now
DISTI # 70453300
RS MCU 32-BIT PIC32 PIC RISC 256KB FLASH 2.5V/3.3V 100-PIN TQFP Min Qty: 119 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 119 $8.7800
$8.7800 RFQ
DISTI # 32MX350F256L-I/PT
TME IC: PIC microcontroller, 256kB, 80MHz, 2.3÷3.6VDC, SMD, TQFP100 Min Qty: 1 0
  • 1 $7.4600
  • 5 $7.2600
  • 25 $6.8600
  • 119 $6.3700
$6.3700 / $7.4600 RFQ
NAC 32 Bit MCU, 256KB Flash, 64KB RAM, 100 MHz, 100 Pin, 2 Comp, CTMU, RTCC. Package: 100 TQFP 12x12x1mm TRAY - PIC32 MX Series Product Line RoHS: Compliant Min Qty: 119 Package Multiple: 119 Container: Tray 0
  • 1 $7.6300
  • 100 $6.9200
  • 500 $6.4900
  • 1,000 $6.3300
$6.3300 / $7.6300 Buy Now
DISTI # PIC32MX350F256L-I/PT
Avnet Silica MCU 32Bit PIC32 PIC RISC 256KB Flash 25V33V 100Pin TQFP Tray (Alt: PIC32MX350F256L-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC32MX350F256L-I/PT
EBV Elektronik MCU 32Bit PIC32 PIC RISC 256KB Flash 25V33V 100Pin TQFP Tray (Alt: PIC32MX350F256L-I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 119 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
LCSC Other Series 80MHz 85 TQFP-100(12x12) Microcontrollers RoHS 31
  • 1 $12.7902
  • 10 $12.3433
$12.3433 / $12.7902 Buy Now

US Tariff Estimator: PIC32MX350F256L-I/PT by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC32MX350F256L-I/PT
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC32MX350F256L-I/PT

PIC32MX350F256L-I/PT CAD Models

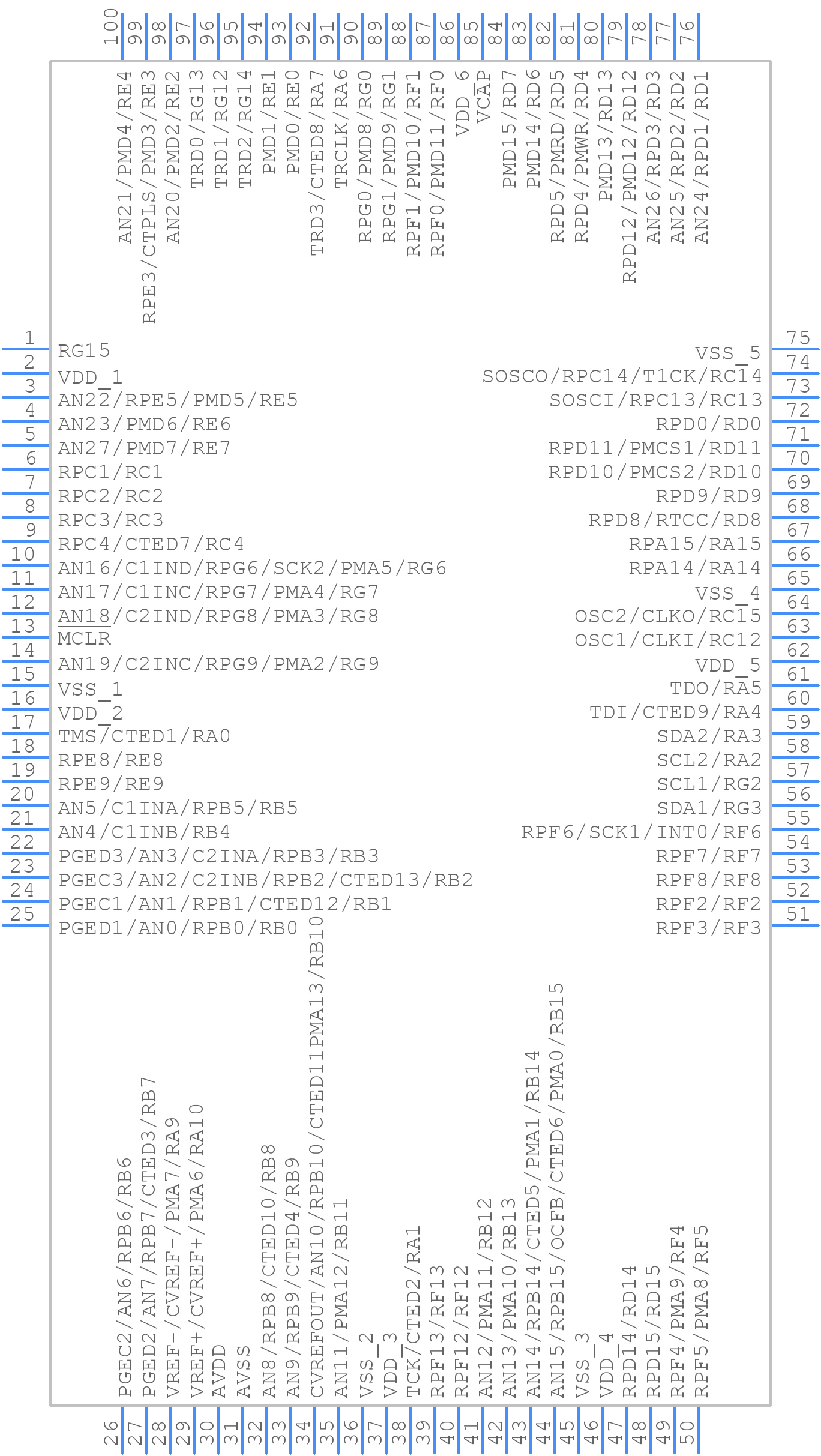

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC32MX350F256L-I/PT Part Data Attributes

Parametric Data
PIC32MX350F256L-I/PT Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC32MX350F256L-I/PT Microchip Technology Inc 32 Bit MCU, 256KB Flash, 64KB RAM, 100 MHz, 100 Pin, 2 Comp, CTMU, RTCC
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description TFQFP, TQFP100,.55SQ,16
Pin Count 100
Manufacturer Package Code TQFP-100
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature AEC-Q100 REVH (GRADE 2 -40 CEL TO +105 CEL) PLANNED
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family PIC32
Clock Frequency-Max 80 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G100
JESD-609 Code e3
Length 12 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 4
Number of External Interrupts 5
Number of I/O Lines 85
Number of Terminals 100
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TFQFP
Package Equivalence Code TQFP100,.55SQ,16
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 65536
RAM (words) 65536
ROM (words) 274432
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 1.2 mm
Speed 100 MHz
Supply Current-Max 75 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.4 mm
Terminal Position QUAD
Width 12 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC32MX350F256L-I/PT

This table gives cross-reference parts and alternative options found for PIC32MX350F256L-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC32MX350F256L-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC32MX350F256L-V/PT Microchip Technology Inc $7.0719 32 Bit MCU, 256KB Flash, 64KB RAM, 100 MHz, 100 Pin, 2 Comp, CTMU, RTCC PIC32MX350F256L-I/PT vs PIC32MX350F256L-V/PT
PIC32MX350F256L-V/PF Microchip Technology Inc $7.6661 32 Bit MCU, 256KB Flash, 64KB RAM, 100 MHz, 100 Pin, 2 Comp, CTMU, RTCC PIC32MX350F256L-I/PT vs PIC32MX350F256L-V/PF
PIC32MX350F256LT-V/PT Microchip Technology Inc $7.9500 32 Bit MCU, 256KB Flash, 64KB RAM, 100 MHz, 100 Pin, 2 Comp, CTMU, RTCC PIC32MX350F256L-I/PT vs PIC32MX350F256LT-V/PT
PIC32MX350F256LT-I/PF Microchip Technology Inc $8.2250 32 Bit MCU, 256KB Flash, 64KB RAM, 100 MHz, 100 Pin, 2 Comp, CTMU, RTCC PIC32MX350F256L-I/PT vs PIC32MX350F256LT-I/PF
PIC32MX350F256LT-V/PF Microchip Technology Inc $8.6050 32 Bit MCU, 256KB Flash, 64KB RAM, 100 MHz, 100 Pin, 2 Comp, CTMU, RTCC PIC32MX350F256L-I/PT vs PIC32MX350F256LT-V/PF
equivalents icon

PIC32MX350F256L-I/PT Related Parts

PIC32MX350F256L-I/PT Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC32MX350F256L-I/PT is 80 MHz.

  • The PIC32MX350F256L-I/PT has 256 KB of flash memory.

  • The PIC32MX350F256L-I/PT can operate at 3.3V, but not 5V. The recommended operating voltage is 3.0V to 3.6V.

  • Yes, the PIC32MX350F256L-I/PT has a built-in USB 2.0 OTG interface.

  • The PIC32MX350F256L-I/PT has 4 UARTs.
