PIC32MX370F512H-I/MR by: Microchip Technology Inc

32 Bit MCU, 512KB Flash, 128KB RAM, 100 MHz, 64 Pin, 2 Comp, CTMU, RTCC

Part Details for PIC32MX370F512H-I/MR by Microchip Technology Inc

Results Overview of PIC32MX370F512H-I/MR by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC32MX370F512H-I/MR Information

PIC32MX370F512H-I/MR by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC32MX370F512H-I/MR

Part # Distributor Description Stock Price Buy
DISTI # 70W0283
Newark Mcu, 32Bit, 100Mhz, Qfn-64, Product Range:Pic32 Family Pic32Mx Series Microcontrollers, Device Core:Pic32, Data Bus Width:32 Bit, Operating Frequency Max:100Mhz, Program Memory Size:512Kb, No. Of Pins:64Pins, Ic Case/Package:Qfn Rohs Compliant: Yes |Microchip PIC32MX370F512H-I/MR RoHS: Compliant Min Qty: 120 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $7.0500
$7.0500 Buy Now
DISTI # PIC32MX370F512H-I/MR
Avnet Americas MCU 32-Bit PIC32 PIC RISC 512KB Flash 2.5V/3.3V 64-Pin QFN EP Tube - Rail/Tube (Alt: PIC32MX370F512H-I/MR) COO: China RoHS: Compliant Min Qty: 120 Package Multiple: 40 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 120 $8.3000
  • 240 $7.8514
  • 480 $7.6447
  • 960 $7.4487
  • 1,920 $7.2625
$7.2625 / $8.3000 Buy Now
DISTI # PIC32MX370F512H-I/MR
Microchip Technology Inc 32 Bit MCU, 512KB Flash, 128KB RAM, 100 MHz, 64 Pin, 2 Comp, CTMU, RTCC, QFN, Projected EOL: 2040-10-22 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 37 and Alternates Available
  • 1 $8.2300
  • 25 $7.5700
  • 100 $6.8400
  • 1,000 $6.3000
  • 5,000 $6.0000
$6.0000 / $8.2300 Buy Now
DISTI # 70543348
RS 80MHZ, 2 ANALOG COMP., 2I2C, 2SPI/I2S, 28 CH. ADC, RTCC, DMA, PMP Min Qty: 120 Package Multiple: 1 Container: Bulk 0
  • 120 $8.3200
$8.3200 RFQ
DISTI # 32MX370F512H-I/MR
TME IC: PIC microcontroller, 512kB, 80MHz, 2.3÷3.6VDC, SMD, QFN64, tube Min Qty: 1 19
  • 1 $10.7200
  • 5 $10.3100
$10.3100 / $10.7200 Buy Now
NAC 32 Bit MCU, 512KB Flash, 128KB RAM, 100 MHz, 64 Pin, 2 Comp, CTMU, RTCC. Package: 64 QFN 9x9x0.9mm TUBE - PIC32 MX Series Product Line RoHS: Compliant Min Qty: 80 Package Multiple: 40 Container: Tube 0
  • 1 $8.5400
  • 100 $7.7500
  • 500 $7.2600
  • 1,000 $7.0900
$7.0900 / $8.5400 Buy Now
DISTI # PIC32MX370F512H-I/MR
Avnet Silica MCU 32Bit PIC32 PIC RISC 512KB Flash 25V33V 64Pin QFN EP Tube (Alt: PIC32MX370F512H-I/MR) RoHS: Compliant Min Qty: 120 Package Multiple: 40 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock MCU32-BitPIC32PICRISC512KBFlash2.5V/3.3V64-PinQFNEPTube-Rail/Tube 3226
RFQ
DISTI # PIC32MX370F512H-I/MR
EBV Elektronik MCU 32Bit PIC32 PIC RISC 512KB Flash 25V33V 64Pin QFN EP Tube (Alt: PIC32MX370F512H-I/MR) RoHS: Compliant Min Qty: 120 Package Multiple: 40 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: PIC32MX370F512H-I/MR by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC32MX370F512H-I/MR
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC32MX370F512H-I/MR

PIC32MX370F512H-I/MR CAD Models

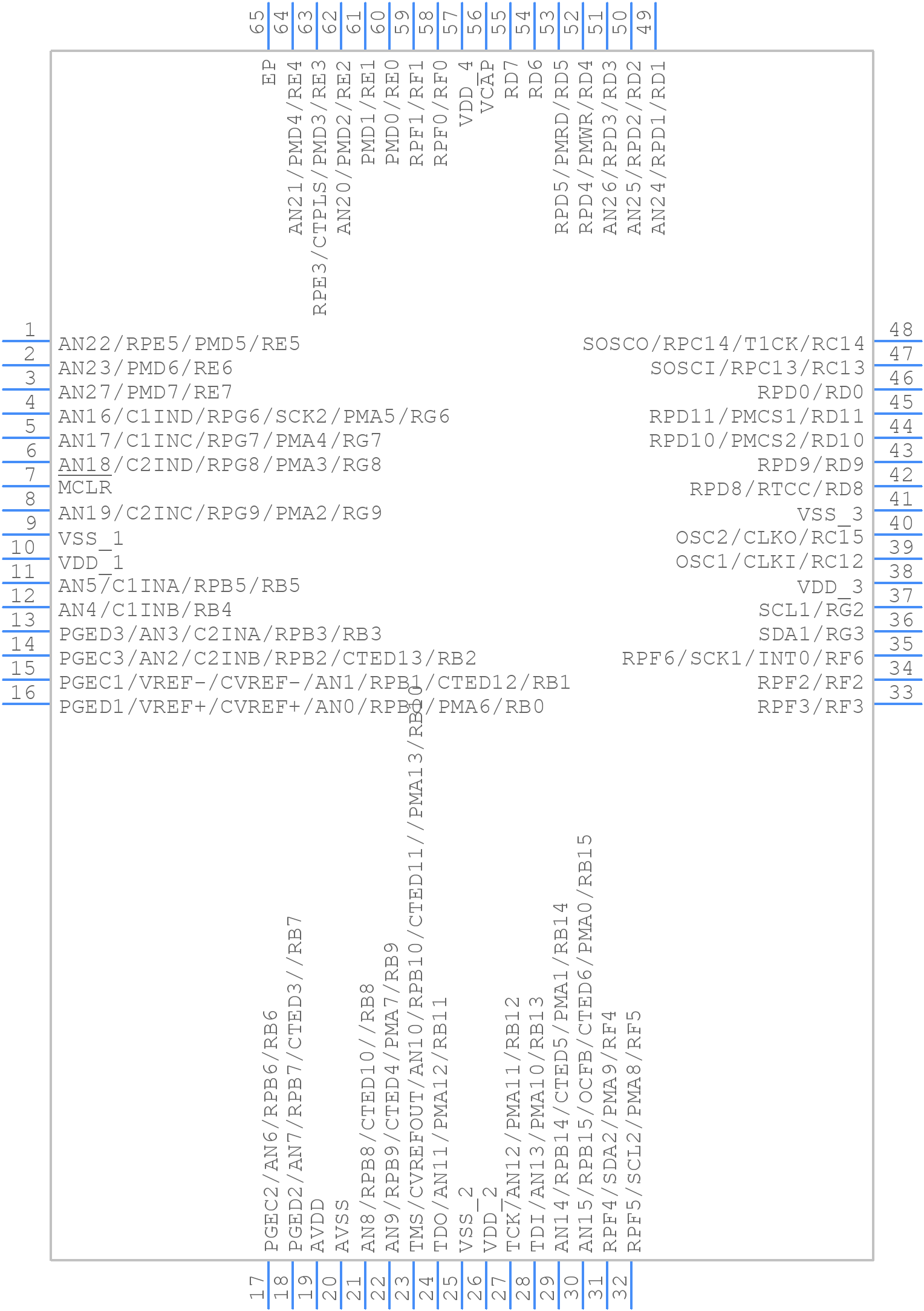

  • Part Symbol

    schematic symbol

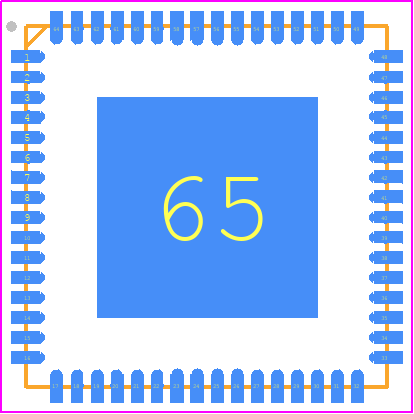

  • Footprint

    pcb footprint

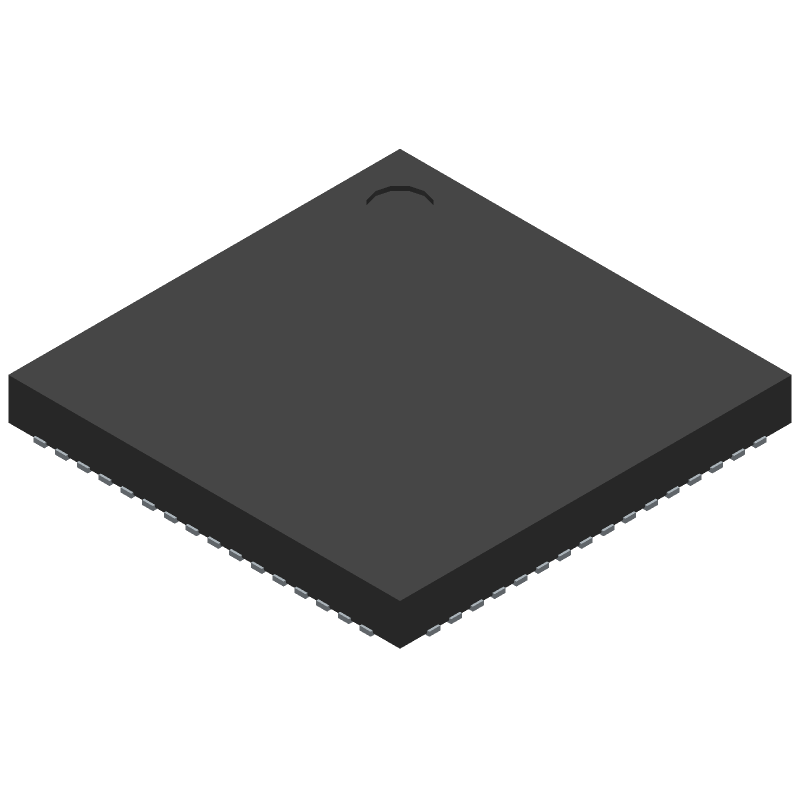

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC32MX370F512H-I/MR Part Data Attributes

Parametric Data
PIC32MX370F512H-I/MR Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC32MX370F512H-I/MR Microchip Technology Inc 32 Bit MCU, 512KB Flash, 128KB RAM, 100 MHz, 64 Pin, 2 Comp, CTMU, RTCC
Rohs Code Yes
Part Life Cycle Code Active
Package Description Hvqccn, Lcc64,.35sq,20
Pin Count 64
Manufacturer Package Code QFN-64
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Has ADC Yes
Additional Feature Aec-Q100 Revh (Grade 2 -40 Cel To +105 Cel) Planned
Address Bus Width
Bit Size 32
Boundary Scan Yes
CPU Family Pic32
Clock Frequency-Max 80 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQCC-N64
JESD-609 Code e3
Length 9 Mm
Low Power Mode Yes
Number of DMA Channels 4
Number of External Interrupts 5
Number of I/O Lines 53
Number of Terminals 64
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code HVQCCN
Package Equivalence Code LCC64,.35SQ,20
Package Shape Square
Package Style Chip Carrier, Heat Sink/Slug, Very Thin Profile
Qualification Status Not Qualified
RAM (bytes) 131072
RAM (words) 131072
ROM (words) 536576
ROM Programmability Flash
Screening Level Ts 16949
Seated Height-Max 1 Mm
Speed 100 Mhz
Supply Current-Max 75 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form No Lead
Terminal Pitch 0.5 Mm
Terminal Position Quad
Width 9 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC32MX370F512H-I/MR

This table gives cross-reference parts and alternative options found for PIC32MX370F512H-I/MR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC32MX370F512H-I/MR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC32MX370F512H-I/PT Microchip Technology Inc $6.4034 32 Bit MCU, 512KB Flash, 128KB RAM, 100 MHz, 64 Pin, 2 Comp, CTMU, RTCC PIC32MX370F512H-I/MR vs PIC32MX370F512H-I/PT
PIC32MX370F512H-V/PT Microchip Technology Inc $7.7803 32 Bit MCU, 512KB Flash, 128KB RAM, 100 MHz, 64 Pin, 2 Comp, CTMU, RTCC PIC32MX370F512H-I/MR vs PIC32MX370F512H-V/PT
PIC32MX370F512H-V/MR Microchip Technology Inc $7.9228 32 Bit MCU, 512KB Flash, 128KB RAM, 100 MHz, 64 Pin, 2 Comp, CTMU, RTCC PIC32MX370F512H-I/MR vs PIC32MX370F512H-V/MR
PIC32MX370F512HT-V/PT Microchip Technology Inc $8.7350 32 Bit MCU, 512KB Flash, 128KB RAM, 100 MHz, 64 Pin, 2 Comp, CTMU, RTCC PIC32MX370F512H-I/MR vs PIC32MX370F512HT-V/PT
PIC32MX370F512HT-V/MR Microchip Technology Inc $8.8950 32 Bit MCU, 512KB Flash, 128KB RAM, 100 MHz, 64 Pin, 2 Comp, CTMU, RTCC PIC32MX370F512H-I/MR vs PIC32MX370F512HT-V/MR
equivalents icon

PIC32MX370F512H-I/MR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC32MX370F512H-I/MR is 80 MHz.

  • The PIC32MX370F512H-I/MR has 512 KB of flash memory.

  • The PIC32MX370F512H-I/MR has 128 KB of RAM.

  • Yes, the PIC32MX370F512H-I/MR has a built-in USB 2.0 OTG interface.

  • The PIC32MX370F512H-I/MR can operate at 3.3V, but not 5V. The recommended operating voltage is 3.0V to 3.6V.
