PMEG2005CT,215 Information
PMEG2005CT,215 by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PMEG2005CT,215
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58T9943
|
Newark | Diode, Schottky Rectifier, Dual, 0.5A, Sot23, Repetitive Peak Reverse Voltage:20V, Average Forward Current:500Ma, Diode Configuration:Dual Common Cathode, Diode Case Style:To-236Ab, No. Of Pins:3Pins, Forward Voltage Max:390Mv Rohs Compliant: Yes |Nexperia PMEG2005CT,215 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 3624 |
|
$0.1050 / $0.2400 | Buy Now |
|
DISTI #
PMEG2005CT,215
|
Avnet Americas | Small Signal Schottky Diode, Dual Common Cathode, 20 V, 500 mA, 390 mV, 10 A, 150 ?C, SOT-23, 3 Pins - Tape and Reel (Alt: PMEG2005CT,215) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0560 / $0.0650 | Buy Now |
|
|
Rochester Electronics | Rectifier Diode, Schottky, 2 Element, 0.5A, 20V V(RRM), Silicon, TO-236AB RoHS: Compliant Status: Active Min Qty: 1 | 62100 |
|
$0.0799 / $0.1289 | Buy Now |
|
DISTI #
PMEG2005CT.215
|
TME | Diode: Schottky switching, SOT23, SMD, 20V, 0.5A, 22ns, reel,tape Min Qty: 1 | 715 |
|
$0.2030 / $0.3100 | Buy Now |
|
|
Chip Stock | PMEG2005Series20V10ALowVFMEGASchottkyBarrierRectifier-SOT-23 | 160000 |
|
RFQ |
US Tariff Estimator: PMEG2005CT,215 by Nexperia
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PMEG2005CT,215
PMEG2005CT,215 CAD Models
-
Part Symbol
-
Footprint
-

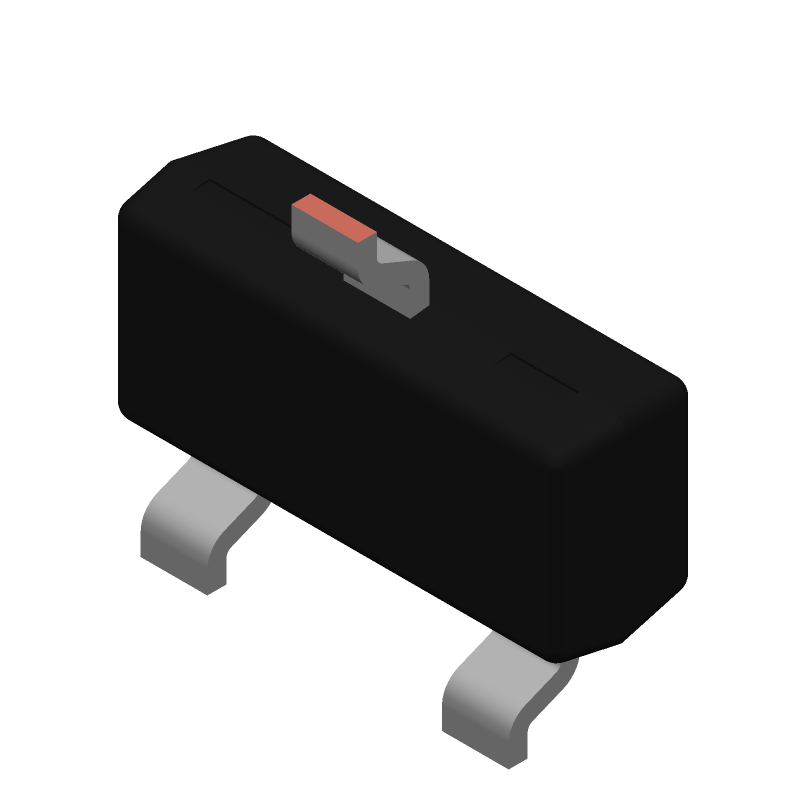

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
PMEG2005CT,215 Part Data Attributes
|
|
PMEG2005CT,215
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PMEG2005CT,215
Nexperia
PMEG2005CT - 20 V, 500 mA low VF dual Schottky barrier rectifier@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TO-236 | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 2017-02-01 | |
| Application | General Purpose | |
| Configuration | Common Cathode, 2 Elements | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.5 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.33 W | |
| Rep Pk Reverse Voltage-Max | 20 V | |
| Reverse Recovery Time-Max | 0.022 µS | |
| Surface Mount | Yes | |
| Technology | Schottky | |
| Terminal Finish | Tin | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for PMEG2005CT,215
This table gives cross-reference parts and alternative options found for PMEG2005CT,215. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PMEG2005CT,215, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PMEG2005CT | Nexperia | Check for Price | Rectifier Diode | PMEG2005CT,215 vs PMEG2005CT |
| PMEG2005CT,215 | NXP Semiconductors | Check for Price | PMEG2005CT - 500 mA low V_F dual MEGA Schottky barrier rectifier TO-236 3-Pin | PMEG2005CT,215 vs PMEG2005CT,215 |
