PPTC081LFBN-RC by: Sullins Connector Solutions

Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking

Part Details for PPTC081LFBN-RC by Sullins Connector Solutions

Results Overview of PPTC081LFBN-RC by Sullins Connector Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare Energy and Power Systems Medical Imaging Renewable Energy Automotive

PPTC081LFBN-RC Information

PPTC081LFBN-RC by Sullins Connector Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for PPTC081LFBN-RC

Part # Distributor Description Stock Price Buy
Bristol Electronics   386
RFQ
DISTI # PPTC081LFBN-RC
IBS Electronics FEMALE 8C STRAIGHT .100CC 3.20MM TAIL NO MT. 100U TIN PBT PHOS BRONZE 105 C Min Qty: 30 Package Multiple: 1 5417
  • 30 $0.4550
  • 100 $0.4410
  • 300 $0.4340
  • 1,000 $0.4270
  • 3,000 $0.4060
$0.4060 / $0.4550 Buy Now
New Advantage Corporation 8 Position Total Single Row 2.54 mm Pitch Straight Female Header RoHS: Compliant Min Qty: 1 Package Multiple: 400 4000
  • 400 $0.5583
  • 4,000 $0.5154
$0.5154 / $0.5583 Buy Now

US Tariff Estimator: PPTC081LFBN-RC by Sullins Connector Solutions

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PPTC081LFBN-RC
Sullins Connector Solutions
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PPTC081LFBN-RC

PPTC081LFBN-RC CAD Models

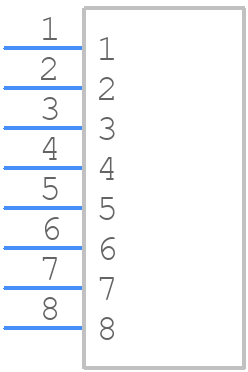

  • Part Symbol

    schematic symbol

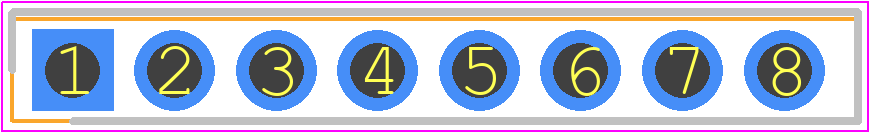

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PPTC081LFBN-RC Part Data Attributes

Parametric Data
PPTC081LFBN-RC Sullins Connector Solutions
Buy Now Datasheet
Compare Parts:
PPTC081LFBN-RC Sullins Connector Solutions Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Body Breadth 0.1 Inch
Body Depth 0.335 Inch
Body Length 0.82 Inch
Connector Type Board Connector
Contact Finish Mating Not Specified
Contact Finish Termination Gold Over Nickel
Contact Gender Female
Contact Material Phosphor Bronze
Contact Pattern Rectangular
Contact Style Sq Pin-Skt
Filter Feature No
Insulator Material Polyester
JESD-609 Code e4
Mating Contact Pitch 0.1 Inch
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option General Purpose
PCB Contact Pattern Rectangular
Plating Thickness 100u Inch
Polarization Key Polarized Housing
Rated Current (Signal) 3 A
Reference Standard Ul
Terminal Length 0.126 Inch
Terminal Pitch 2.54 Mm
Termination Type Solder
Total Number of Contacts 8
UL Flammability Code 94V-0

Alternate Parts for PPTC081LFBN-RC

This table gives cross-reference parts and alternative options found for PPTC081LFBN-RC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PPTC081LFBN-RC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
3-146139-7 TE's AMP Check for Price 38 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE PPTC081LFBN-RC vs 3-146139-7
89893-338 Amphenol FCi Check for Price Board Connector, 38 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug PPTC081LFBN-RC vs 89893-338
77424-338LF Amphenol FCi Check for Price Board Connector, 38 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Receptacle, ROHS COMPLIANT PPTC081LFBN-RC vs 77424-338LF
65001-238LF Amphenol FCi Check for Price Board Connector, 38 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, LEAD FREE PPTC081LFBN-RC vs 65001-238LF
65001-062LF Amphenol FCi Check for Price Board Connector, 38 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, LEAD FREE PPTC081LFBN-RC vs 65001-062LF
86653-438LF Amphenol FCi Check for Price Board Connector, 38 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, LEAD FREE PPTC081LFBN-RC vs 86653-438LF
89893-438LF Amphenol Communications Solutions Check for Price Board Connector, 38 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug, ROHS COMPLIANT PPTC081LFBN-RC vs 89893-438LF
89893-338 Amphenol Communications Solutions Check for Price Board Connector, 38 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug, PPTC081LFBN-RC vs 89893-338
86653-238 Amphenol Communications Solutions Check for Price Board Connector, 38 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, PPTC081LFBN-RC vs 86653-238
86653-438 Amphenol Communications Solutions Check for Price Board Connector, 38 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, PPTC081LFBN-RC vs 86653-438
equivalents icon

PPTC081LFBN-RC Related Parts

PPTC081LFBN-RC Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).

  • Yes, the connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, transportation, and aerospace.

  • Yes, the connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C and humidity resistance up to 95% RH.

  • The mating cycle life of the PPTC081LFBN-RC connector is 500 cycles minimum.

  • Yes, the PPTC081LFBN-RC connector is RoHS and REACH compliant, making it suitable for use in EU and other regions with similar regulations.
