Part Details for PTN78060WAH by Texas Instruments
Results Overview of PTN78060WAH by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PTN78060WAH Information
PTN78060WAH by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PTN78060WAH
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH4770
|
Newark | Ic, Switching Reg 3A Adj, 8060, Output Power Max:37.8W, Output Voltage Min:2.5V, Output Voltage Max:12.6V, Output Current Max:3A, Dc/Dc Converter Output Type:-, Dc/Dc Converter Type:Dip, Input Voltage Dc Min:7V, Input Voltage Dc Rohs Compliant: Yes |Texas Instruments PTN78060WAH RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$24.5600 / $29.3600 | Buy Now |
|
|
Bristol Electronics | 171 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 1 | 9 |
|
$16.8000 | Buy Now |
|
|
Chip Stock | 3-A,Wide-Input,AdjustableSwitchingegulatorModule7-Through-HoleModule-40to85 | 625 |
|
RFQ | |
|
|
LCSC | Buck DIP25.4x15.7mm DC DC Converters RoHS | 25 |
|
$16.6231 / $20.8681 | Buy Now |
|
|
MacroQuest Electronics | ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 | 135 |
|
$19.7100 / $20.0000 | Buy Now |
|
|
Win Source Electronics | Module DC-DC 1-OUT 2.5V to 12.6V 3A 7-Pin DIP Module Tray / REG SW 2.5-12.6V 3A HORZ T/H | 500 |
|
$15.1049 / $19.5104 | Buy Now |
US Tariff Estimator: PTN78060WAH by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PTN78060WAH
PTN78060WAH CAD Models
-

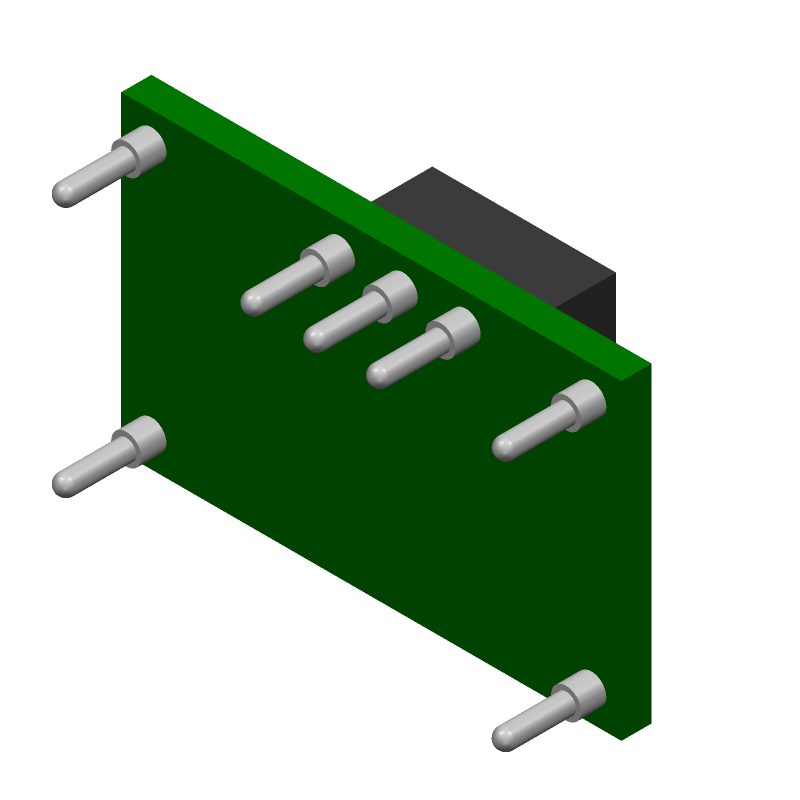

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
PTN78060WAH Part Data Attributes
|
|
PTN78060WAH
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
PTN78060WAH
Texas Instruments
3-A, Wide-Input, Adjustable Switching Regulator Module 7-Through-Hole Module -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dma, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.40.95.80 | |
| Analog IC - Other Type | Switching Regulator | |
| Approvals | Ul | |
| Control Technique | Pulse Width Modulation | |
| Efficiency (Main Output) | 82% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 7 V | |
| Input Voltage-Nom | 20 V | |
| JESD-30 Code | R-XDMA-P10 | |
| JESD-609 Code | e3 | |
| Length | 25.27 Mm | |
| Line Regulation-Max | 0.3% | |
| Load Regulation-Max | 0.3% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 3 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 2.5 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | Unspecified | |
| Package Code | DMA | |
| Package Shape | Rectangular | |
| Package Style | Microelectronic Assembly | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 9 Mm | |
| Surface Mount | No | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 660 Khz | |
| Technology | Hybrid | |
| Temperature Grade | Industrial | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | Pin/Peg | |
| Terminal Pitch | 3.175 Mm | |
| Terminal Position | Dual | |
| Total Power Output-Max | 45 W | |
| Width | 15.75 Mm |
Alternate Parts for PTN78060WAH
This table gives cross-reference parts and alternative options found for PTN78060WAH. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PTN78060WAH, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PTN78060WAZT | Texas Instruments | Check for Price | 3-A, Wide-Input, Adjustable Switching Regulator Module 7-Surface Mount Module -40 to 85 | PTN78060WAH vs PTN78060WAZT |
PTN78060WAH Frequently Asked Questions (FAQ)
-
The recommended input capacitor value is 10uF to 22uF, with an ESR of 0.1 ohms or less, to ensure stability and reduce input ripple.
-
To ensure the PTN78060WAH operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the device is not subjected to excessive voltage, current, or temperature stress.
-
The maximum recommended output capacitance is 100uF to prevent oscillations and ensure stability. However, the optimal value depends on the specific application and output voltage.
-
The PTN78060WAH is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's specifications accordingly.
-
To troubleshoot issues, check the input voltage, output voltage, and output current. Verify the device is properly connected and configured. Consult the datasheet and application notes for guidance on troubleshooting common issues.
