PVT422S-TPBF Information
PVT422S-TPBF by Infineon Technologies AG is a Solid State Relay.
Solid State Relays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for PVT422S-TPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58AJ2564
|
Newark | Mosfet Relay, Dpst, 400V, 0.12A, Smd Rohs Compliant: Yes |Infineon PVT422S-TPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 56 |
|
$5.1400 | Buy Now |
|
DISTI #
PVT422S-TPBF
|
Avnet Americas | Relay SSR 25mA DC-IN 0.12A 400V AC/DC-OUT 8-Pin PDIP SMT T/R - Tape and Reel (Alt: PVT422S-TPBF) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 32 Weeks, 0 Days Container: Reel | 0 |
|
$4.4064 / $4.7334 | Buy Now |
|
DISTI #
58AJ2564
|
Avnet Americas | Relay SSR 25mA DC-IN 0.12A 400V AC/DC-OUT 8-Pin PDIP SMT T/R (Alt: 58AJ2564) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 | 0 |
|
$6.6400 / $10.5800 | Buy Now |
|
DISTI #
70019178
|
RS | RELAY, SOLID STATE, DPST-NO, CTRL-V 1.25DC,0.12A,400V, PCB MNT, SMD,8PIN, PVT422 Min Qty: 750 Package Multiple: 1 Container: Bulk | 0 |
|
$4.5900 / $4.8300 | RFQ |
|
DISTI #
PVT422S-TPBF
|
IBS Electronics | PVT422 Series DPST 400 V 35 Ohm Surface Mount Photovoltaic Relay-SMD-8 Min Qty: 750 Package Multiple: 1 | 0 |
|
$7.0280 | Buy Now |
|
|
Chip Stock | RelaySsr25MADc-in0.12A400VAc/dc-out8-PINPDIPSMTT/r | 4088 |
|
RFQ | |
|
DISTI #
SP001546718
|
EBV Elektronik | Relay SSR 25mA DCIN 012A 400V ACDCOUT 8Pin PDIP SMT TR (Alt: SP001546718) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 33 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | SPST-NO(1 Form A) 4kV 400V ACDC SMD-8P Solid State Relays (SSR) RoHS | 18 |
|
$5.2849 | Buy Now |
|
|
Win Source Electronics | IC RELAY PHOTOVO 400V 120MA 8SMD | 2588 |
|
$4.3636 / $6.5454 | Buy Now |
US Tariff Estimator: PVT422S-TPBF by Infineon Technologies AG
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PVT422S-TPBF
PVT422S-TPBF CAD Models
-

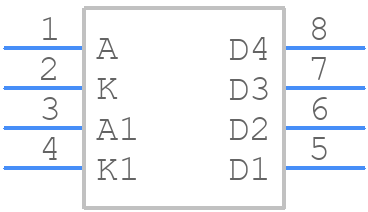

Part Symbol
-

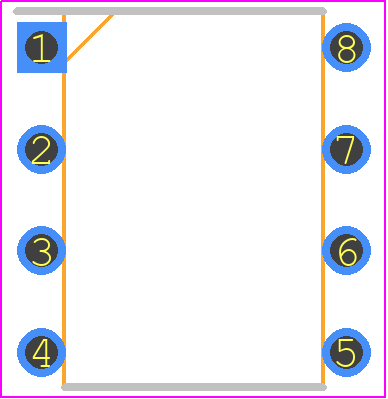

Footprint
-

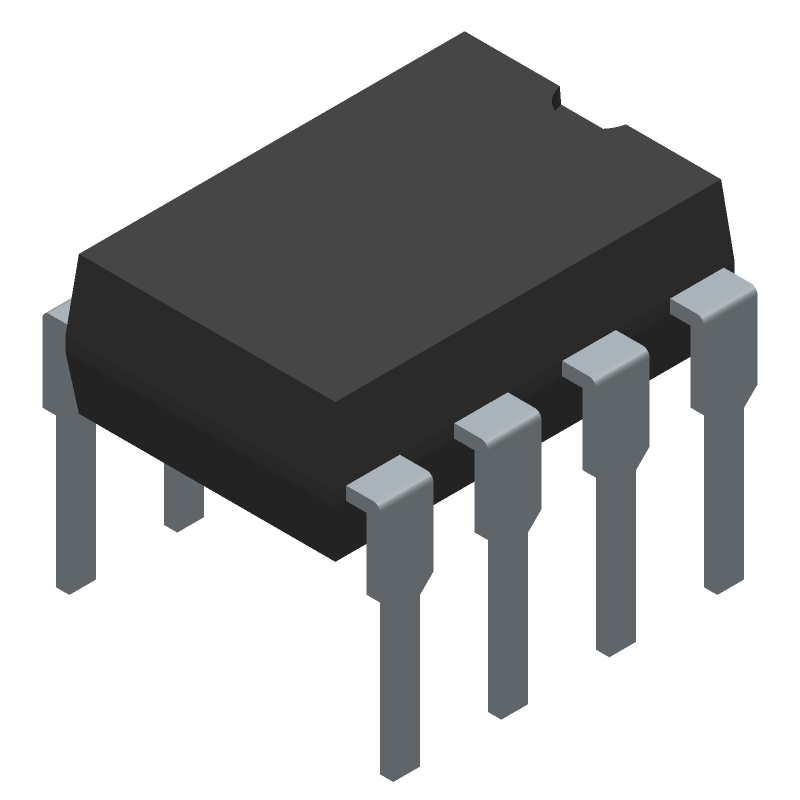

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
PVT422S-TPBF Part Data Attributes
|
|
PVT422S-TPBF
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
PVT422S-TPBF
Infineon Technologies AG
Transistor Output SSR, 2-Channel, 4000V Isolation, PLASTIC, SURFCAE MOUNT, DIP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Dip-8 | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8541.40.95.00 | |
| Factory Lead Time | 32 Weeks | |
| Additional Feature | Ul Recognized, High Reliability | |
| Configuration | Separate, 2 Elements | |
| Control Current | 0.002 A | |
| Forward Current-Max | 0.025 A | |
| Input Type | Dc | |
| Isolation Voltage-Max | 4000 V | |
| JESD-609 Code | e3 | |
| Number of Elements | 2 | |
| On-State Current-Max | 0.12 A | |
| On-state Resistance-Max | 35 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | Transistor Output Ssr | |
| Output Circuit Type | Mosfet | |
| Overall Height | 3.42 Mm | |
| Overall Length | 9.4 Mm | |
| Terminal Finish | Matte Tin (Sn) |
