QSH-060-01-L-D-A by: Samtec Inc

Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

Part Details for QSH-060-01-L-D-A by Samtec Inc

Results Overview of QSH-060-01-L-D-A by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

QSH-060-01-L-D-A Information

QSH-060-01-L-D-A by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DAO3W3P543M40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3W3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert UNC 4.40, Back: Metal Brackets.
DAL3V3P543G30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Harpoons for 1.6mm PCB Thickness.
DAV3V3P543H40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Harpoons for 2.4mm PCB Thickness.

Price & Stock for QSH-060-01-L-D-A

Part # Distributor Description Stock Price Buy
DISTI # 81H3791
Newark Stacking Connector, Receptacle, 120 Position, 0.5Mm, Mezzanine Connector Type:Receptacle, Pitch Spacing:0.5Mm, No. Of Rows:2Rows, No. Of Contacts:120Contacts, Connector Mounting:Surface Mount, Contact Material:Phosphor Bronze Rohs Compliant: Yes |Samtec QSH-060-01-L-D-A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 30
  • 1 $5.4700
  • 128 $5.1500
  • 256 $4.7300
  • 512 $4.4800
  • 1,024 $4.2000
$4.2000 / $5.4700 Buy Now
DISTI # QSH-060-01-L-D-A
Avnet Americas Conn Stacking Receptacle 120 POS 5mmStack Height 0.5mm Solder Straight Surface Mount - Trays (Alt: QSH-060-01-L-D-A) COO: United States of America (the) RoHS: Compliant Min Qty: 64 Package Multiple: 1 Lead time: 2 Weeks, 4 Days Container: Tray 63
3840 Factory Stock
  • 64 $4.8800
  • 256 $4.5150
  • 512 $4.3095
  • 2,560 $3.4563
  • 5,120 $3.3254
$3.3254 / $4.8800 Buy Now
Bristol Electronics   302
RFQ
DISTI # QSH-060-01-L-D-A
TME Connector: PCB to PCB, socket, female, PIN: 120, QSH, vertical, 2A Min Qty: 1 83
  • 1 $9.2500
  • 5 $8.4100
  • 15 $7.5600
  • 25 $6.7300
  • 40 $5.8900
$5.8900 / $9.2500 Buy Now
Powell Electronics 0.50 mm Q Pairs High-Speed Ground Plane Min Qty: 64 1859
  • 64 $5.8100
  • 128 $5.4700
  • 256 $5.0200
  • 512 $4.7500
  • 1,024 $4.4600
$4.4600 / $5.8100 Buy Now
DISTI # 000000000000750164
Sager Headers & Wire Housings 0.50 mm Q Strip High-Speed Ground Plane Socket Strip Min Qty: 64 768
  • 64 $5.8100
  • 128 $5.4700
  • 256 $5.0200
  • 512 $4.7500
  • 1,024 $4.4600
  • 2,560 $3.5600
$3.5600 / $5.8100 Buy Now
DISTI # QSH-060-01-L-D-A
Avnet Abacus Conn Stacking Receptacle 120 POS 5mmStack Height 05mm Solder Straight Surface Mount (Alt: QSH-060-01-L-D-A) RoHS: Compliant Min Qty: 64 Package Multiple: 64 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # QSH-060-01-L-D-A
Chip One Stop Interconnects RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk 59
  • 1 $5.7900
  • 10 $5.6900
  • 50 $5.3200
  • 128 $4.7100
  • 256 $4.5100
  • 512 $4.2700
  • 1,024 $4.0100
  • 2,048 $3.8800
$3.8800 / $5.7900 Buy Now
Chip Stock 0.5mm2StandingpasteSMD,P=0.5mmBoard-to-BoardandBackplaneConnectorROHS 5200
RFQ

US Tariff Estimator: QSH-060-01-L-D-A by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

QSH-060-01-L-D-A
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for QSH-060-01-L-D-A

QSH-060-01-L-D-A CAD Models

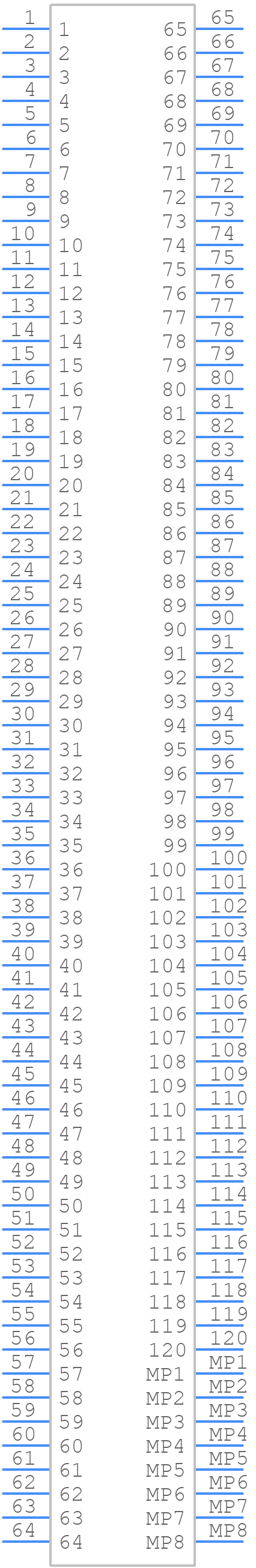

  • Part Symbol

    schematic symbol

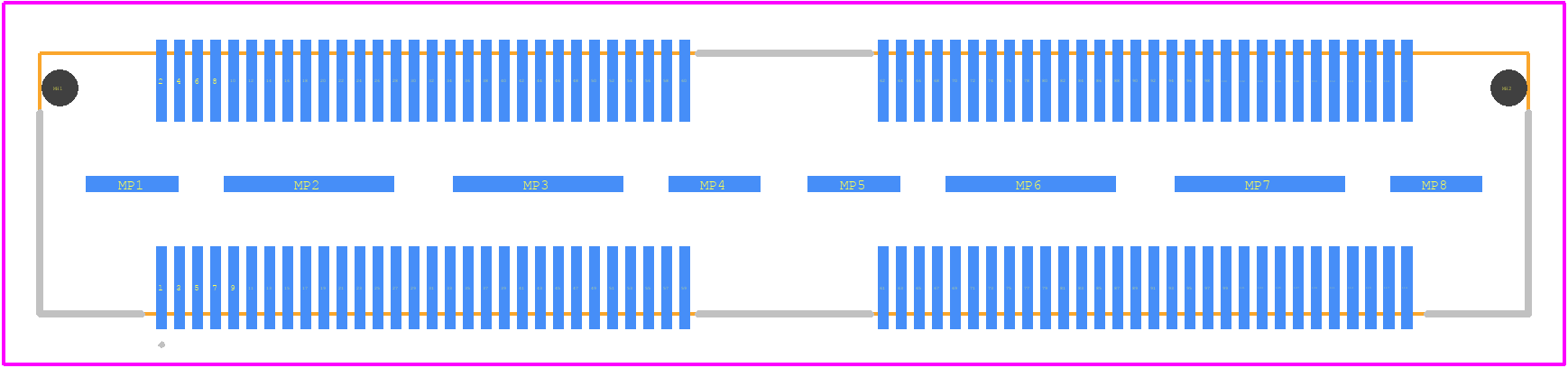

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

QSH-060-01-L-D-A Part Data Attributes

Parametric Data
QSH-060-01-L-D-A Samtec Inc
Buy Now Datasheet
Compare Parts:
QSH-060-01-L-D-A Samtec Inc Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 2 Weeks, 4 Days
Additional Feature Elp
Board Mounting Option Locating Posts
Body Breadth 0.285 Inch
Body Depth 0.128 Inch
Body Length 1.625 Inch
Body/Shell Style Socket
Connector Type Board Stacking Connector
Contact Finish Mating Gold (10) Over Nickel (50)
Contact Finish Termination Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender Female
Contact Material Phosphor Bronze
Contact Pattern Rectangular
Contact Style Centronic
DIN Conformance No
Dielectric Withstanding Voltage 375vac V
Durability 100 Cycles
Filter Feature No
IEC Conformance No
Insulation Resistance 5000000000 Ω
Insulator Color Black
Insulator Material Liquid Crystal Polymer
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.02 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option General Purpose
PCB Contact Pattern Rectangular
PCB Contact Row Spacing 5.7404 Mm
Plating Thickness 10u Inch
Polarization Key Polarized Housing
Rated Current (Signal) 1 A
Reference Standard Ul, Csa
Terminal Pitch 0.5 Mm
Termination Type Surface Mount
Total Number of Contacts 120

Alternate Parts for QSH-060-01-L-D-A

This table gives cross-reference parts and alternative options found for QSH-060-01-L-D-A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of QSH-060-01-L-D-A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
QSH-060-01-H-D-A Samtec Inc $14.4867 Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, QSH-060-01-L-D-A vs QSH-060-01-H-D-A
QSH-060-01-F-D-A Samtec Inc $4.8038 Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT QSH-060-01-L-D-A vs QSH-060-01-F-D-A
equivalents icon

QSH-060-01-L-D-A Related Parts

QSH-060-01-L-D-A Frequently Asked Questions (FAQ)

  • The recommended torque for the screws on the QSH-060-01-L-D-A connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).

  • Yes, the QSH-060-01-L-D-A connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, industrial, and automotive.

  • Yes, the QSH-060-01-L-D-A connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals.

  • The QSH-060-01-L-D-A connector has a mating cycle life of 500 cycles minimum.

  • Yes, the QSH-060-01-L-D-A connector is RoHS and REACH compliant, making it suitable for use in European Union countries.
