RC0603FR-07120RL by: YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP

Part Details for RC0603FR-07120RL by YAGEO Corporation

Results Overview of RC0603FR-07120RL by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RC0603FR-07120RL Information

RC0603FR-07120RL by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RC0603FR-07120RL

Part # Distributor Description Stock Price Buy
DISTI # 12AC2128
Newark Res, 120R, 1%, 0.1W, 0603, Thick Film, Resistor Case Style:0603 [1608 Metric], Resistance:120Ohm, Product Range:Rc Series, Voltage Rating:75V, Resistor Element Material:Thick Film, Power Rating:100Mw, Resistance Tolerance:± 1%, Rohs Compliant: Yes |Yageo RC0603FR-07120RL RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 45000
  • 5,000 $0.0050
$0.0050 Buy Now
DISTI # 98K7350
Newark Surface Mount Thick Film Resistor, Rc Series, 120 Ohm, 100 Mw, - 1%, 50 V, 0603 [1608 Metric] Rohs Compliant: Yes |Yageo RC0603FR-07120RL RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 27145
  • 10 $0.0070
$0.0070 Buy Now
DISTI # 68R0056
Newark Res, Thick Film, 120R, 1%, 0.1W, 0603, Resistance:120Ohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:75V Rohs Compliant: Yes |Yageo RC0603FR-07120RL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 4
  • 1 $0.0800
  • 25 $0.0400
  • 50 $0.0260
  • 100 $0.0180
  • 250 $0.0140
  • 500 $0.0110
  • 1,000 $0.0080
  • 2,500 $0.0060
$0.0060 / $0.0800 Buy Now
DISTI # RC0603FR-07120RL
Avnet Americas SMD Chip Resistor, 120 Ohm, ? 1%, 100 mW, 0603 [1608 Metric], Thick Film, General Purpose - Tape and Reel (Alt: RC0603FR-07120RL) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Container: Reel 195000
  • 5,000 $0.0014
  • 10,000 $0.0014
  • 20,000 $0.0014
  • 40,000 $0.0014
  • 80,000 $0.0013
$0.0013 / $0.0014 Buy Now
DISTI # 68R0056
Avnet Americas SMD Chip Resistor, 120 Ohm, ? 1%, 100 mW, 0603 [1608 Metric], Thick Film, General Purpose - Product that comes on tape, but is not reeled (Alt: 68R0056) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Ammo Pack 0
  • 1 $0.0080
$0.0080 Buy Now
Bristol Electronics   Min Qty: 278 115233
  • 278 $0.0180
  • 835 $0.0120
  • 2,918 $0.0030
  • 25,001 $0.0018
  • 69,446 $0.0015
$0.0015 / $0.0180 Buy Now
Bristol Electronics   9992
RFQ
DISTI # RC0603FR-07120RL
TME Resistor: thick film, SMD, 0603, 120Ω, 0.1W, ±1%, 75V, -55÷155°C Min Qty: 1 6810
  • 1 $0.0100
  • 50 $0.0094
  • 100 $0.0084
  • 500 $0.0049
  • 1,000 $0.0036
  • 2,500 $0.0034
$0.0034 / $0.0100 Buy Now
Ameya Holding Limited RC Series 0603 0.1 W 120 Ohms 1% ±100 ppm/°C SMT Thick Film Chip Resistor 50000
RFQ
DISTI # WRC32551
Rutronik RC0603 120R 1% 0,1W TK100 RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel Stock DE - 2395000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 5,000 $0.0014
  • 15,000 $0.0011
  • 25,000 $0.0011
  • 150,000 $0.0011
$0.0011 / $0.0014 Buy Now
DISTI # SMC-RC0603FR-07120RL
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: 1722 Container: Tape & Reel 29429
RFQ
DISTI # SMC-RC0603FR-07120RL
Sensible Micro Corporation 100Mw Thick Film Resistors 100Ppm/ 1% 120 0603 Chip Resistor Surface Mount Rohs RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: TBC Container: Tape & Reel 4983
RFQ
DISTI # RC0603FR-07120RL
Avnet Abacus SMD Chip Resistor 120 Ohm 1 100 mW 0603 1608 Metric Thick Film General Purpose - Tape and Reel (Alt: RC0603FR-07120RL) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Chip Stock ResGeneralPurposeThickFilm0603120Ohm1%1/10W±100ppm/°CMoldedSMDPaperT/R 1002500
RFQ
Component Electronics, Inc RES SMT 120R 1% 0603 TAPE 450
  • 1 $0.0800
  • 100 $0.0600
  • 1,000 $0.0500
$0.0500 / $0.0800 Buy Now
DISTI # RC0603FR-07120RL
Maritex Thick Film Resistors – SMD, YAGEO, RC0603FR-07120RL, 120 Ohm, 0603, 1 %, Thick Film Min Qty: 1 Package Multiple: 1 14250
  • 1 $0.0100
  • 50 $0.0080
  • 100 $0.0070
  • 500 $0.0040
  • 1,000 $0.0030
  • 2,500 $0.0030
$0.0030 / $0.0100 Buy Now
New Advantage Corporation RC Series 0603 0.1 W 120 Ohms 1% �100 ppm/�C SMT Thick Film Chip Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 5000 345000
  • 80,000 $0.0022
  • 345,000 $0.0020
$0.0020 / $0.0022 Buy Now
Win Source Electronics RES SMD 120 OHM 1% 1/10W 0603 766825
  • 41,670 $0.0012
  • 100,000 $0.0010
  • 150,000 $0.0010
  • 200,000 $0.0010
  • 277,780 $0.0009
  • 375,000 $0.0008
$0.0008 / $0.0012 Buy Now

US Tariff Estimator: RC0603FR-07120RL by YAGEO Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

RC0603FR-07120RL
YAGEO Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for RC0603FR-07120RL

RC0603FR-07120RL CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

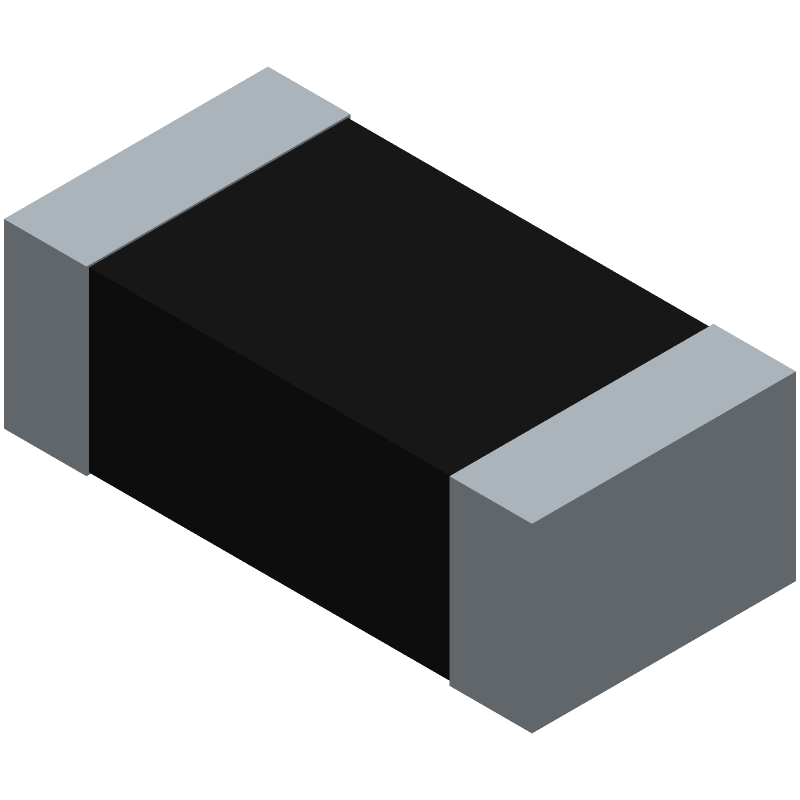

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RC0603FR-07120RL Part Data Attributes

Parametric Data
RC0603FR-07120RL YAGEO Corporation
Buy Now Datasheet
Compare Parts:
RC0603FR-07120RL YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer YAGEO
Additional Feature LASER TRIMMABLE
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.6 mm
Package Style SMT
Package Width 0.8 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Resistance 120 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 75 V

Alternate Parts for RC0603FR-07120RL

This table gives cross-reference parts and alternative options found for RC0603FR-07120RL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC0603FR-07120RL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CRCW0603120RFKTABC Vishay Intertechnologies $0.0198 Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 75V, 1% +/-Tol, -100,100ppm/Cel, 0603, RC0603FR-07120RL vs CRCW0603120RFKTABC
HASG03FTEX1200A Hitano Enterprise Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-07120RL vs HASG03FTEX1200A
SF06P1200FQP Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 120ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-07120RL vs SF06P1200FQP
HASG03FWEX1200A Hitano Enterprise Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-07120RL vs HASG03FWEX1200A
SR06X1200FTL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Film, 0.1W, 120ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-07120RL vs SR06X1200FTL
RCG0603100120R1%EB Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 75V, 1% +/-Tol, -100,100ppm/Cel, 0603, RC0603FR-07120RL vs RCG0603100120R1%EB
RMCS0603FT120R SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT RC0603FR-07120RL vs RMCS0603FT120R
CR-03FL7--120RAC Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-07120RL vs CR-03FL7--120RAC
WR06W1200FTLJ Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-07120RL vs WR06W1200FTLJ
AS03FWE1200A Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 120ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-07120RL vs AS03FWE1200A
equivalents icon

RC0603FR-07120RL Related Parts

RC0603FR-07120RL Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for RC0603FR-07120RL is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, RC0603FR-07120RL is compatible with lead-free soldering and is RoHS compliant.

  • The MSL of RC0603FR-07120RL is level 1, which means it can withstand a maximum of 30 days in a standard ambient environment before soldering.

  • Yes, RC0603FR-07120RL is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and inductance.

  • The operating temperature range of RC0603FR-07120RL is -55°C to 125°C.
