Resistors / Metal Glaze/Thick Film Resistors / RC0603FR-0757K6L
Datasheets
RC0603FR-0757K6L by: YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP

Part Details for RC0603FR-0757K6L by YAGEO Corporation

Results Overview of RC0603FR-0757K6L by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RC0603FR-0757K6L Information

RC0603FR-0757K6L by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RC0603FR-0757K6L

Part # Distributor Description Stock Price Buy
DISTI # 49AK2690
Newark Res, 57K6, 1%, 0.1W, Thick Film, 0603, Resistance:57.6Kohm, Resistance Tolerance:± 1%, Power Rating:100Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Voltage Rating:75V Rohs Compliant: Yes |Yageo RC0603FR-0757K6L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2857
  • 1 $0.0030
  • 25 $0.0030
  • 50 $0.0030
  • 100 $0.0030
$0.0030 Buy Now
DISTI # 68AK7369
Newark Res, 57K6, 1%, 0.1W, Thick Film, 0603 Rohs Compliant: Yes |Yageo RC0603FR-0757K6L RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 5,000 $0.0040
  • 10,000 $0.0030
$0.0030 / $0.0040 Buy Now
DISTI # 49AK2690
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 49AK2690) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 2857 Partner Stock
  • 1 $0.1000
  • 25 $0.0080
  • 50 $0.0070
  • 100 $0.0060
$0.0060 / $0.1000 Buy Now
DISTI # RC0603FR-0757K6L
Avnet Americas - Tape and Reel (Alt: RC0603FR-0757K6L) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0014
  • 10,000 $0.0013
  • 20,000 $0.0013
  • 30,000 $0.0013
  • 40,000 $0.0012
$0.0012 / $0.0014 Buy Now
Bristol Electronics   Min Qty: 371 34615
  • 371 $0.0135
  • 1,113 $0.0090
  • 3,890 $0.0023
  • 32,610 $0.0014
$0.0014 / $0.0135 Buy Now
DISTI # RC0603FR-0757K6L
TME Resistor: thick film, SMD, 0603, 57.6kΩ, 0.1W, ±1%, 50V, -55÷155°C Min Qty: 1 4869
  • 1 $0.1200
  • 50 $0.0076
  • 100 $0.0069
  • 500 $0.0053
  • 1,000 $0.0048
  • 5,000 $0.0036
  • 10,000 $0.0034
$0.0034 / $0.1200 Buy Now
DISTI # WRC37574
Rutronik RC0603 57,6K 1% 0,1W TK100 RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel Stock DE - 5000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 5,000 $0.0014
  • 15,000 $0.0011
  • 25,000 $0.0011
  • 150,000 $0.0011
$0.0011 / $0.0014 Buy Now
DISTI # SMC-RC0603FR-0757K6L
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: TBC 6696
RFQ
DISTI # RC0603FR-0757K6L
Avnet Abacus - Tape and Reel (Alt: RC0603FR-0757K6L) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Component Electronics, Inc RES SMT 57.6K 1% 0603 T/R PICK#246929 4450
  • 1 $0.0800
  • 100 $0.0600
  • 1,000 $0.0500
$0.0500 / $0.0800 Buy Now
DISTI # RC0603FR-0757K6L
Maritex Thick Film Resistors – SMD, YAGEO, RC0603FR-0757K6L, 57.6 kOhm, 0603, 1 %, Thick Film Min Qty: 1 Package Multiple: 1 147250
  • 1 $0.1150
  • 10 $0.0170
  • 100 $0.0090
  • 500 $0.0050
  • 1,000 $0.0040
  • 5,000 $0.0040
$0.0040 / $0.1150 Buy Now

US Tariff Estimator: RC0603FR-0757K6L by YAGEO Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

RC0603FR-0757K6L
YAGEO Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for RC0603FR-0757K6L

RC0603FR-0757K6L CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

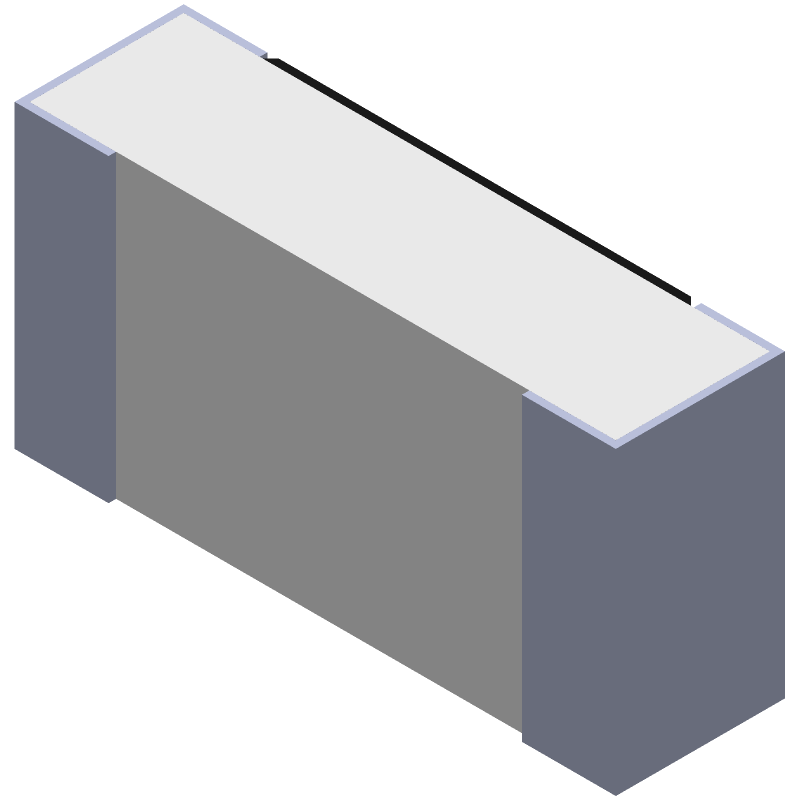

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RC0603FR-0757K6L Part Data Attributes

Parametric Data
RC0603FR-0757K6L YAGEO Corporation
Buy Now Datasheet
Compare Parts:
RC0603FR-0757K6L YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer YAGEO
Additional Feature LASER TRIMMABLE
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.6 mm
Package Style SMT
Package Width 0.8 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Resistance 57600 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 75 V

Alternate Parts for RC0603FR-0757K6L

This table gives cross-reference parts and alternative options found for RC0603FR-0757K6L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RC0603FR-0757K6L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RCG060357K6FKEA Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-0757K6L vs RCG060357K6FKEA
CR16-5762-FK ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-0757K6L vs CR16-5762-FK
RAT035762FH4 Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-0757K6L vs RAT035762FH4
CR0603-10W-5762FPT VENKEL LTD Check for Price Fixed Resistor, 0.1W, 57600ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, RC0603FR-0757K6L vs CR0603-10W-5762FPT
AC0603FR-0757K6L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-0757K6L vs AC0603FR-0757K6L
RCA060357K61%100ET6E3 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, RC0603FR-0757K6L vs RCA060357K61%100ET6E3
CRA0603T100X57.6K+/-1% Precision Resistive Products Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-0757K6L vs CRA0603T100X57.6K+/-1%
RMCF0603FT57K6 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-0757K6L vs RMCF0603FT57K6
MR06X5762FBL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 57600ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP RC0603FR-0757K6L vs MR06X5762FBL
RTT035762FBA Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 57600ohm, 75V, 1% +/-Tol, -100,100ppm/Cel, 0603, RC0603FR-0757K6L vs RTT035762FBA
equivalents icon

RC0603FR-0757K6L Related Parts

RC0603FR-0757K6L Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for RC0603FR-0757K6L is 250°C for 1-2 seconds, with a peak temperature of 260°C for 3-5 seconds. However, it's recommended to consult the YAGEO application note for specific soldering guidelines.

  • Yes, RC0603FR-0757K6L is compatible with lead-free soldering processes. YAGEO Corporation ensures that their products meet the requirements of the RoHS directive and are suitable for lead-free soldering.

  • The moisture sensitivity level (MSL) of RC0603FR-0757K6L is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.

  • While RC0603FR-0757K6L is a general-purpose resistor, it's not recommended for high-frequency applications above 100 MHz due to its construction and materials. For high-frequency applications, YAGEO offers specialized resistors with optimized designs and materials.

  • The operating temperature range of RC0603FR-0757K6L is -55°C to 155°C. However, the power rating is derated above 70°C, and the resistor's performance may degrade at extreme temperatures.
