Part Details for RCC040215K0FKED by Vishay Intertechnologies
Results Overview of RCC040215K0FKED by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RCC040215K0FKED Information
RCC040215K0FKED by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for RCC040215K0FKED
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3975486RL
|
Farnell | RES, 15K, 1%, 0.125W, THICK FILM, 0402 COO: IL RoHS: Compliant Min Qty: 10 Lead time: 14 Weeks, 0 Days Container: Reel | 4360 |
|
$0.0170 / $0.0594 | Buy Now |
|
DISTI #
3975486
|
Farnell | RES, 15K, 1%, 0.125W, THICK FILM, 0402 COO: IL RoHS: Compliant Min Qty: 10 Lead time: 14 Weeks, 0 Days Container: Cut Tape | 4360 |
|
$0.0170 / $0.0594 | Buy Now |
|
DISTI #
RCC040215K0FKED
|
Avnet Americas | - Tape and Reel (Alt: RCC040215K0FKED) COO: Israel RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0115 / $0.0118 | Buy Now |
|
DISTI #
RCC040215K0FKED
|
Avnet Abacus | (Alt: RCC040215K0FKED) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: RCC040215K0FKED by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for RCC040215K0FKED
RCC040215K0FKED CAD Models
-
Part Symbol
-
Footprint
-

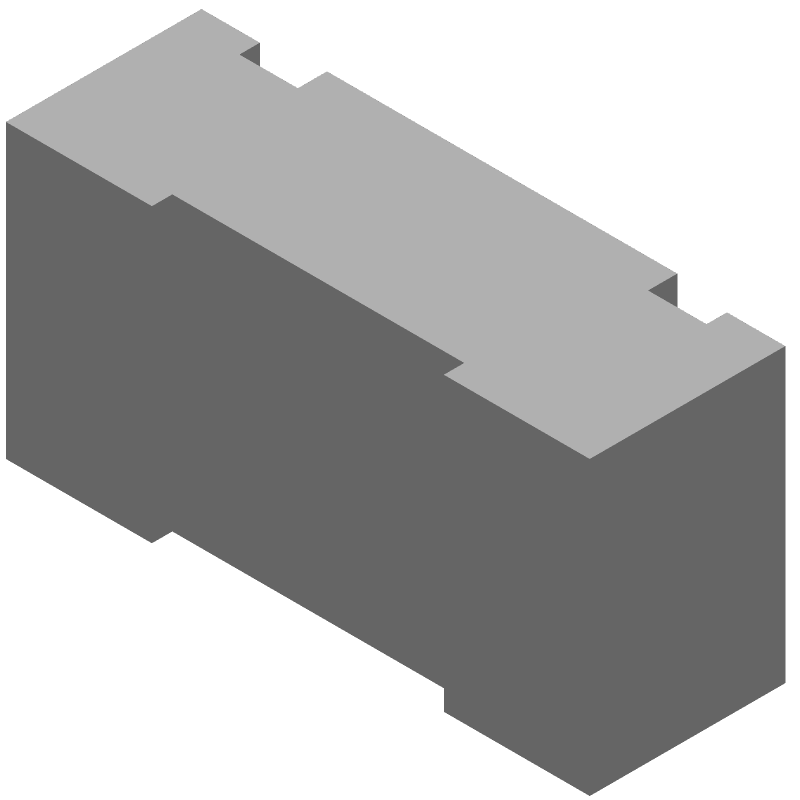

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
RCC040215K0FKED Part Data Attributes
|
|
RCC040215K0FKED
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
RCC040215K0FKED
Vishay Intertechnologies
Fixed Resistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 12 Weeks | |
| Additional Feature | Laser Trimmable, Rated Ac Voltage (V): 75 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.35 Mm | |
| Package Length | 1 Mm | |
| Package Style | Smt | |
| Package Width | 0.5 Mm | |
| Packing Method | Tr, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.125 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | Aec-Q200 | |
| Resistance | 15000 Ω | |
| Resistor Type | Fixed Resistor | |
| Size Code | 0402 | |
| Surface Mount | Yes | |
| Technology | Metal Glaze/Thick Film | |
| Temperature Coefficient | 100 Ppm/°C | |
| Terminal Finish | Tin (Sn) - With Nickel (Ni) Barrier | |
| Terminal Shape | Wraparound | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
Alternate Parts for RCC040215K0FKED
This table gives cross-reference parts and alternative options found for RCC040215K0FKED. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RCC040215K0FKED, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCR01SMQPF1502 | ROHM Semiconductor | $0.0188 | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 15000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP | RCC040215K0FKED vs MCR01SMQPF1502 |
| AF0402FR-7W15KL | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.125W, 15000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP | RCC040215K0FKED vs AF0402FR-7W15KL |
| RK73H1ERTTPD1502F | KOA Corporation | Check for Price | RES,SMT,THICK FILM,15K OHMS,50WV,1% +/-TOL,-100,100PPM TC,0402 CASE | RCC040215K0FKED vs RK73H1ERTTPD1502F |
| RK73H1EGBK1502F | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 15000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP | RCC040215K0FKED vs RK73H1EGBK1502F |
| SR0402FR-0715KL | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 15000ohm, 50V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0402, CHIP | RCC040215K0FKED vs SR0402FR-0715KL |
| RK73H1ELTPL1502F | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 15000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP | RCC040215K0FKED vs RK73H1ELTPL1502F |
| RK73H1ERTTPD1502F | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 15000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, | RCC040215K0FKED vs RK73H1ERTTPD1502F |
| RK73H1ELBK1502F | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 15000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP | RCC040215K0FKED vs RK73H1ELBK1502F |
| RK73H1EATTPL1502F | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 15000ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP | RCC040215K0FKED vs RK73H1EATTPL1502F |
| RK73H1ETTPL1502F | KOA Speer Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 15000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP | RCC040215K0FKED vs RK73H1ETTPL1502F |
RCC040215K0FKED Frequently Asked Questions (FAQ)
-
The thermal resistance of the RCC040215K0FKED is typically around 250°C/W, but it's recommended to consult the manufacturer's documentation or contact Vishay Intertechnologies directly for the most up-to-date and accurate information.
-
The RCC040215K0FKED is a general-purpose thick-film resistor, and its frequency response is not optimized for high-frequency applications. For high-frequency applications, it's recommended to use specialized resistors designed for high-frequency use, such as thin-film or wirewound resistors.
-
The RCC040215K0FKED has a maximum operating temperature of 155°C. While it can tolerate high temperatures, it's essential to ensure that the resistor is not exposed to temperatures above its rated maximum. Prolonged exposure to high temperatures can affect the resistor's performance and lifespan.
-
The RCC040215K0FKED has a power rating of 0.25W. While it can handle moderate power levels, it's not suitable for high-power applications. For high-power applications, it's recommended to use resistors with higher power ratings or to consider using multiple resistors in parallel or series configurations.
-
The recommended soldering temperature for the RCC040215K0FKED is between 260°C to 280°C, with a maximum soldering time of 3 seconds. It's essential to follow the manufacturer's recommended soldering guidelines to ensure reliable connections and prevent damage to the resistor.
