RCS12061K30FKEA by: Vishay Intertechnologies

Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP

Part Details for RCS12061K30FKEA by Vishay Intertechnologies

Results Overview of RCS12061K30FKEA by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

RCS12061K30FKEA Information

RCS12061K30FKEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RCS12061K30FKEA

Part # Distributor Description Stock Price Buy
DISTI # 41AH5193
Newark Res, 1K3, 1%, 0.5W, 1206, Thick Film, Resistance:1.3Kohm, Resistance Tolerance:± 1%, Power Rating:500Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thick Film, Resistor Type:Anti-Surge, Voltage Rating:200V Rohs Compliant: Yes |Vishay RCS12061K30FKEA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 4704
  • 1 $0.0120
  • 25 $0.0120
  • 50 $0.0120
  • 100 $0.0120
  • 250 $0.0120
  • 500 $0.0120
  • 1,000 $0.0120
  • 2,500 $0.0120
$0.0120 Buy Now
DISTI # RCS12061K30FKEA
Avnet Americas - Tape and Reel (Alt: RCS12061K30FKEA) COO: Israel RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0324
  • 10,000 $0.0311
  • 20,000 $0.0303
  • 30,000 $0.0247
  • 40,000 $0.0232
$0.0232 / $0.0324 Buy Now
DISTI # 41AH5193
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 41AH5193) COO: Israel RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 0
  • 1 $0.2300
  • 25 $0.1170
  • 50 $0.0940
  • 100 $0.0700
  • 250 $0.0630
$0.0630 / $0.2300 Buy Now
DISTI # RCS12061K30FKEA
Avnet Abacus (Alt: RCS12061K30FKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now

US Tariff Estimator: RCS12061K30FKEA by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

RCS12061K30FKEA
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for RCS12061K30FKEA

RCS12061K30FKEA CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

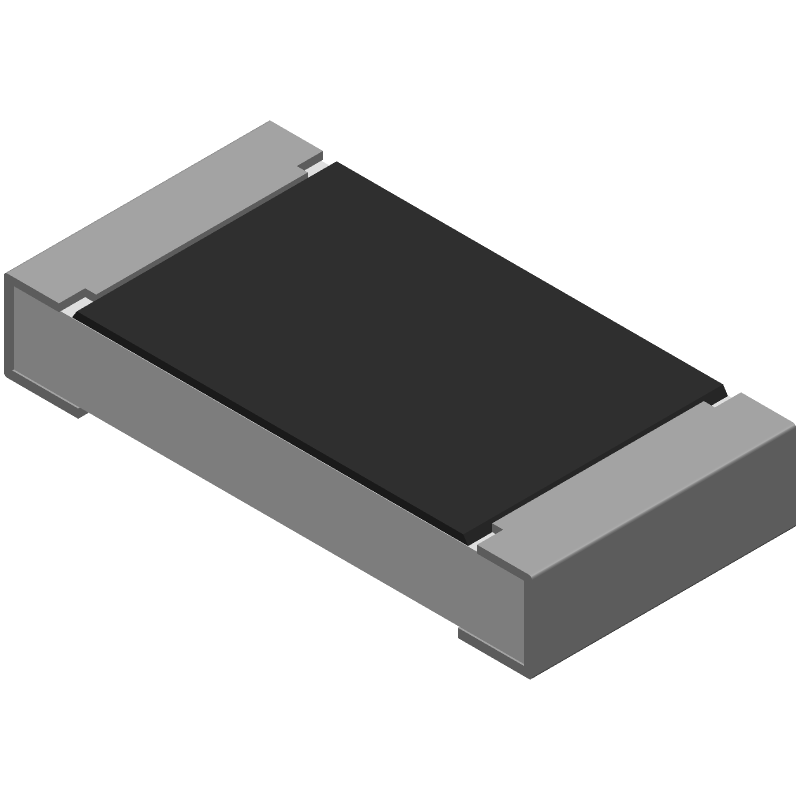

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RCS12061K30FKEA Part Data Attributes

Parametric Data
RCS12061K30FKEA Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
RCS12061K30FKEA Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer Vishay
Additional Feature LASER TRIMMABLE, RATED AC VOLTAGE (V): 200
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 3.2 mm
Package Style SMT
Package Width 1.6 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.5 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 1300 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 200 V

Alternate Parts for RCS12061K30FKEA

This table gives cross-reference parts and alternative options found for RCS12061K30FKEA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RCS12061K30FKEA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CR-06FCA---1K3 Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RCS12061K30FKEA vs CR-06FCA---1K3
SF12P1301FGP Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RCS12061K30FKEA vs SF12P1301FGP
FPF06FW-1301 Prosperity Dielectrics Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, RCS12061K30FKEA vs FPF06FW-1301
RMH12R-1K3-F RFE International Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, RCS12061K30FKEA vs RMH12R-1K3-F
RAG06K132FCG Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RCS12061K30FKEA vs RAG06K132FCG
AF1206FR-7W1K3L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RCS12061K30FKEA vs AF1206FR-7W1K3L
CR1206F1K3P050.5W Ever Ohms Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206, RCS12061K30FKEA vs CR1206F1K3P050.5W
MP001537 SPC Multicomp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RCS12061K30FKEA vs MP001537
ASV06FH1301E Ohmite Mfg Co Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RCS12061K30FKEA vs ASV06FH1301E
SF12P1301FBP Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 1300ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP RCS12061K30FKEA vs SF12P1301FBP
equivalents icon

RCS12061K30FKEA Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for RCS12061K30FKEA is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.

  • Yes, the RCS12061K30FKEA is a thick-film resistor designed for high-frequency applications up to 50 GHz, making it suitable for RF and microwave circuits.

  • The power rating of the RCS12061K30FKEA at 70°C is 1206W, which is lower than the maximum power rating of 1.3W at 25°C due to derating.

  • Yes, the RCS12061K30FKEA resistor is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications.

  • The MSL of the RCS12061K30FKEA is 1, which means it can withstand exposure to moisture without damage during the soldering process.
