Part Details for REF3450SQDBVRQ1 by Texas Instruments
Results Overview of REF3450SQDBVRQ1 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
REF3450SQDBVRQ1 Information
REF3450SQDBVRQ1 by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| REF3450SQDBVRQ1 | Texas Instruments | Automotive, low-drift, low-power, small-footprint series voltage reference 5-SOT-23 -40 to 125 |
Price & Stock for REF3450SQDBVRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
REF3450SQDBVRQ1-0
|
TME | IC: voltage reference source, ±0.05%, SOT23-5, 10mA Min Qty: 3000 | 3000 |
|
$2.3078 | Buy Now |
|
|
Ameya Holding Limited | 69699 |
|
RFQ | ||
|
|
LCSC | 5V 0.05% 5.5V12V 10mA Fixed SOT-23-5 Voltage Reference RoHS | 4 |
|
$5.4264 / $5.7336 | Buy Now |
US Tariff Estimator: REF3450SQDBVRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for REF3450SQDBVRQ1
REF3450SQDBVRQ1 CAD Models
-

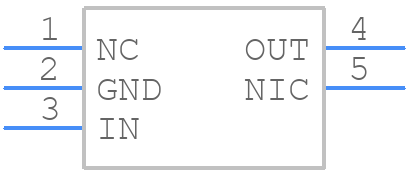

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
REF3450SQDBVRQ1 Part Data Attributes
|
|
REF3450SQDBVRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
REF3450SQDBVRQ1
Texas Instruments
Automotive, low-drift, low-power, small-footprint series voltage reference 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | VSSOP, TSOP5/6,.11,37 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2020-08-22 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 2.55 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 10 A | |
| Output Voltage-Max | 5.0025 V | |
| Output Voltage-Min | 4.9975 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max (Vsup) | 12 V | |
| Supply Voltage-Min (Vsup) | 5.05 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temp Coef of Voltage-Max | 6 ppm/°C | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | NO | |
| Voltage Tolerance-Max | 0.05% | |
| Width | 1.6 mm |
Alternate Parts for REF3450SQDBVRQ1
This table gives cross-reference parts and alternative options found for REF3450SQDBVRQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of REF3450SQDBVRQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX6070AAUT50+ | Analog Devices Inc | Check for Price | Low-Noise, High-Precision Series Voltage References, 6-SOT_23-N/A, 6 Pins, -40 to 125C | REF3450SQDBVRQ1 vs MAX6070AAUT50+ |
| MAX6070AAUT50/V+T | Analog Devices Inc | Check for Price | Low-Noise, High-Precision Series Voltage References, 6-SOT_23-N/A, 6 Pins, -40 to 125C | REF3450SQDBVRQ1 vs MAX6070AAUT50/V+T |
| PREF3450TQDBVR | Texas Instruments | Check for Price | 5-V, low-drift, low-power, small-footprint series voltage reference 6-SOT-23 -40 to 125 | REF3450SQDBVRQ1 vs PREF3450TQDBVR |
| MAX6071AAUT50+T | Analog Devices Inc | Check for Price | Low-Noise, High-Precision Series Voltage References, 6-SOT_23-N/A, 6 Pins, -40 to 125C | REF3450SQDBVRQ1 vs MAX6071AAUT50+T |
| MAX6071AAUT50+ | Analog Devices Inc | Check for Price | Low-Noise, High-Precision Series Voltage References, 6-SOT_23-N/A, 6 Pins, -40 to 125C | REF3450SQDBVRQ1 vs MAX6071AAUT50+ |
| MAX6070AAUT50+T | Analog Devices Inc | Check for Price | Low-Noise, High-Precision Series Voltage References, 6-SOT_23-N/A, 6 Pins, -40 to 125C | REF3450SQDBVRQ1 vs MAX6070AAUT50+T |
| REF3450QDGKRQ1 | Texas Instruments | Check for Price | Automotive, low-drift, low-power, small-footprint series voltage reference 8-VSSOP -40 to 125 | REF3450SQDBVRQ1 vs REF3450QDGKRQ1 |
| REF3450TIDBVR | Texas Instruments | Check for Price | 5-V, low-drift, low-power, small-footprint series voltage reference 6-SOT-23 -40 to 125 | REF3450SQDBVRQ1 vs REF3450TIDBVR |
| REF3450IDBVR | Texas Instruments | Check for Price | 5-V, low-drift, low-power, small-footprint series voltage reference 6-SOT-23 -40 to 125 | REF3450SQDBVRQ1 vs REF3450IDBVR |
| MAX6070AAUT50+ | Maxim Integrated Products | Check for Price | Three Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO6, SOT-23, 6 PIN | REF3450SQDBVRQ1 vs MAX6070AAUT50+ |
REF3450SQDBVRQ1 Frequently Asked Questions (FAQ)
-
A good PCB layout for the REF3450SQDBVRQ1 involves keeping the input and output pins as close as possible to minimize noise and parasitic inductance. Additionally, use a solid ground plane and decouple the input with a 10uF capacitor to reduce noise and ripple.
-
To ensure accurate voltage output over temperature, it's essential to consider the temperature coefficient (TC) of the REF3450SQDBVRQ1. The TC is specified as 2ppm/°C. You can use external components, such as thermistors or thermocouples, to compensate for temperature variations and maintain accurate output.
-
The recommended input voltage range for the REF3450SQDBVRQ1 is between 4.5V and 18V. Operating outside this range may affect the device's accuracy, stability, and long-term reliability.
-
To protect the REF3450SQDBVRQ1 from power-on surges and ESD, use a voltage clamp, such as a TVS diode, on the input pin. Additionally, consider adding a series resistor and a capacitor to filter out high-frequency noise and transients.
-
The recommended output capacitor value for stability is 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable output voltage. However, the optimal value may vary depending on the specific application and PCB layout.
