Part Details for REG1117A/2K5 by Texas Instruments
Results Overview of REG1117A/2K5 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (4 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
REG1117A/2K5 Information
REG1117A/2K5 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for REG1117A/2K5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Adjustable Positive LDO Regulator, 1.25V Min, 13.8V Max, 1.55V Dropout, BIPolar, PDSO4 RoHS: Compliant Status: Active Min Qty: 1 | 23907 |
|
$1.2400 / $1.5500 | Buy Now |
|
DISTI #
REG1117A/2K5
|
TME | IC: voltage regulator, LDO,adjustable, 1.238÷1.262V, 1A, SOT223 Min Qty: 1 | 0 |
|
$1.5000 / $2.6400 | RFQ |
|
|
Chip Stock | LDORegulatorPos1.25Vto13.5V1A4-Pin(3+Tab)SOT-223T/R | 48000 |
|
RFQ | |
|
|
LCSC | 62dB(120Hz) Positive Adjustable 1.25V13.5V SOT-223-4 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 20 |
|
$3.8921 / $4.1156 | Buy Now |
|
|
Win Source Electronics | IC REG LDO ADJ 1A SOT223 | 44500 |
|
$1.2058 / $1.5569 | Buy Now |
US Tariff Estimator: REG1117A/2K5 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for REG1117A/2K5
REG1117A/2K5 CAD Models
-

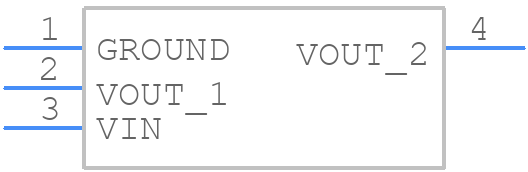

Part Symbol
-

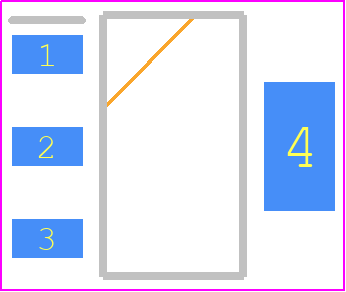

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
REG1117A/2K5 Part Data Attributes
|
|
REG1117A/2K5
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
REG1117A/2K5
Texas Instruments
1-A, 15-V, linear voltage regulator from -40°C to +125°C 4-SOT-223 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-223 | |
| Package Description | Sot-223-4 | |
| Pin Count | 4 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Adjustability | Adjustable | |
| Dropout Voltage1-Max | 1.55 V | |
| Dropout Voltage1-Nom | 1.2 V | |
| Input Voltage-Max | 15 V | |
| Input Voltage-Min | 3.7 V | |
| Input-Output Voltage Differential-Max | 13.75 V | |
| Input-Output Voltage Differential-Min | 1.5 V | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e4 | |
| Length | 6.5 Mm | |
| Line Regulation-Max (%/V) | 0.32 | |
| Load Regulation-Max(%) | 0.4% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 13.8 V | |
| Output Voltage1-Min | 1.25 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Adjustable Positive Single Output Ldo Regulator | |
| Seated Height-Max | 1.8 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 2.3 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 3.5 Mm |
Alternate Parts for REG1117A/2K5
This table gives cross-reference parts and alternative options found for REG1117A/2K5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of REG1117A/2K5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| REG1117A | Burr-Brown Corp | Check for Price | Adjustable Positive LDO Regulator, 1.25V Min, 15V Max, 1.55V Dropout, BIPolar, PDSO4, PLASTIC, SOT-223 | REG1117A/2K5 vs REG1117A |
REG1117A/2K5 Frequently Asked Questions (FAQ)
-
The maximum input voltage for the REG1117A/2K5 is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
-
To ensure a stable and accurate output voltage, make sure to use a suitable output capacitor (e.g., 10uF) and a minimum of 1uF input capacitor. Also, keep the input voltage at least 2V higher than the output voltage.
-
The maximum output current for the REG1117A/2K5 is 1.5A, but it's recommended to keep it below 1A for optimal performance and to prevent overheating.
-
To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
-
The thermal shutdown temperature for the REG1117A/2K5 is around 150°C. If the junction temperature exceeds this value, the regulator will shut down to prevent damage.
