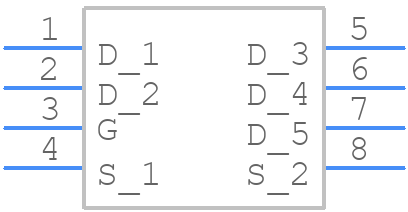

Part Symbol
-
Footprint
-

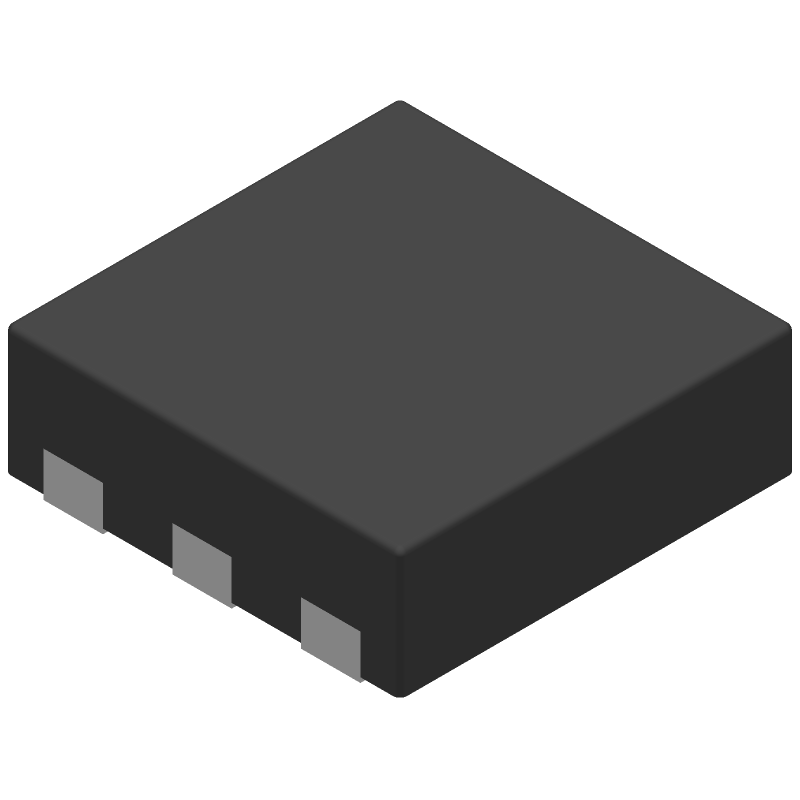

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RF4C100BCTCR by ROHM Semiconductor
Results Overview of RF4C100BCTCR by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Medical Imaging
Telecommunications
RF4C100BCTCR Information
RF4C100BCTCR by ROHM Semiconductor is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for RF4C100BCTCR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
RF4C100BCTCR
|
TME | Transistor: P-MOSFET, unipolar, -20V, -10A, Idm: -36A, 2W Min Qty: 1 | 0 |
|
$0.2540 / $1.0000 | RFQ |
|
|
Ameya Holding Limited | Min Qty: 1 | 580-Authorized Distributor |
|
$0.2587 / $0.4397 | Buy Now |
|
DISTI #
RF4C100BCTCR
|
Avnet Asia | (Alt: RF4C100BCTCR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
RF4C100BCTCR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 4610 |
|
$0.2750 / $1.0400 | Buy Now |
|
|
LCSC | 20V 10A 2W 15.6m4.5V10A 1.2V 1 P-Channel DFNWB-6-EP(2x2) Single FETs MOSFETs RoHS | 82 |
|
$0.0298 / $0.0570 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 15000 |
|
$0.1989 / $0.2138 | Buy Now |
Part Details for RF4C100BCTCR
RF4C100BCTCR CAD Models
RF4C100BCTCR Part Data Attributes
|
|
RF4C100BCTCR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
RF4C100BCTCR
ROHM Semiconductor
Power Field-Effect Transistor, 10A I(D), 20V, 0.02ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, HALOGEN FREE AND ROHS COMPLIANT, HUML2020L8, 6 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT, HUML2020L8, 6 PIN | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Avalanche Energy Rating (Eas) | 15.2 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 20 V | |
| Drain Current-Max (ID) | 10 A | |
| Drain-source On Resistance-Max | 0.02 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | S-PDSO-N6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 36 A | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
