Resistors / Fixed Resistors / RGC0603DTC5K10
Datasheets

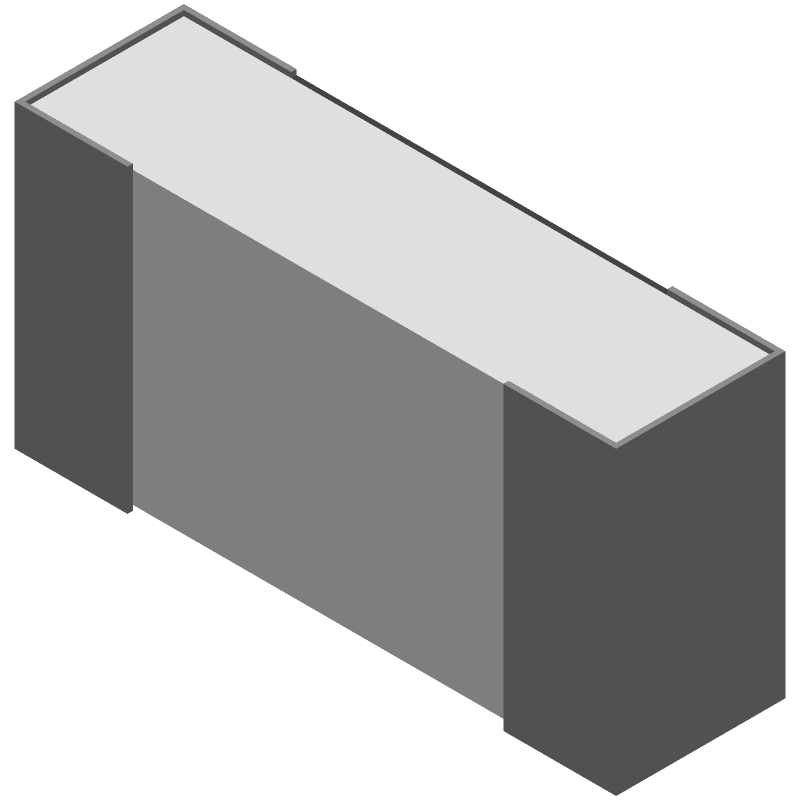

RGC0603DTC5K10 by: SEI Stackpole Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 50V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

Part Details for RGC0603DTC5K10 by SEI Stackpole Electronics Inc

Results Overview of RGC0603DTC5K10 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RGC0603DTC5K10 Information

RGC0603DTC5K10 by SEI Stackpole Electronics Inc is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RGC0603DTC5K10

Part # Distributor Description Stock Price Buy
DISTI # RGC0603DTC5K10
Avnet Americas - Tape and Reel (Alt: RGC0603DTC5K10) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0158
  • 10,000 $0.0158
  • 20,000 $0.0158
  • 30,000 $0.0158
  • 40,000 $0.0158
$0.0158 Buy Now
NAC RESISTOR, 0603, 5.1 Kohm, 0.5%, 50 ppm, 0.1W - Thick Film - Precision RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 0
  • 5,000 $0.0250
  • 25,000 $0.0170
  • 125,000 $0.0150
$0.0150 / $0.0250 Buy Now

US Tariff Estimator: RGC0603DTC5K10 by SEI Stackpole Electronics Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

RGC0603DTC5K10
SEI Stackpole Electronics Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for RGC0603DTC5K10

RGC0603DTC5K10 Part Data Attributes

Parametric Data
RGC0603DTC5K10 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RGC0603DTC5K10 SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 50V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 14 Weeks
Additional Feature Precision
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 Mm
Package Length 1.6 Mm
Package Style Smt
Package Width 0.8 Mm
Packing Method Tr, Paper, 7 Inch
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Reference Standard Aec-Q200
Resistance 5100 Ω
Resistor Type Fixed Resistor
Size Code 0603
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 50 Ppm/°C
Terminal Finish Matte Tin Over Nickel
Terminal Shape Wraparound
Tolerance 0.5%
Working Voltage 75 V

Alternate Parts for RGC0603DTC5K10

This table gives cross-reference parts and alternative options found for RGC0603DTC5K10. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RGC0603DTC5K10, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RK73G1JRTTED5K10D KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP RGC0603DTC5K10 vs RK73G1JRTTED5K10D
CRCW06035K10DHEDP Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP RGC0603DTC5K10 vs CRCW06035K10DHEDP
RK73G1JTTDD5101D KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT RGC0603DTC5K10 vs RK73G1JTTDD5101D
AC0603DRE135K1L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP RGC0603DTC5K10 vs AC0603DRE135K1L
RK73G1JATTD5101D KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP RGC0603DTC5K10 vs RK73G1JATTD5101D
AF0603DRE075K1L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP RGC0603DTC5K10 vs AF0603DRE075K1L
CRTC03DWDX5101A Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP RGC0603DTC5K10 vs CRTC03DWDX5101A
RCA06035K10DHEA Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP RGC0603DTC5K10 vs RCA06035K10DHEA
CRCW06035K10DHECP Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP RGC0603DTC5K10 vs CRCW06035K10DHECP
D11/CRCW0603-P505K10.5%ET8E3 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5100ohm, 75V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT RGC0603DTC5K10 vs D11/CRCW0603-P505K10.5%ET8E3
