Resistors / Metal Glaze/Thick Film Resistors / RK73B2BTTD512J
Datasheets
RK73B2BTTD512J by: KOA Speer Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT

Part Details for RK73B2BTTD512J by KOA Speer Electronics Inc

Results Overview of RK73B2BTTD512J by KOA Speer Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

RK73B2BTTD512J Information

RK73B2BTTD512J by KOA Speer Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RK73B2BTTD512J

Part # Distributor Description Stock Price Buy
Bristol Electronics   13635
RFQ
Bristol Electronics   9867
RFQ
DISTI # SMC-RK73B2BTTD512J
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: TBC 4316
RFQ
Component Electronics, Inc RES SMT 5.1K 5% 1206 T/R 500
  • 1 $0.1200
  • 100 $0.0900
  • 1,000 $0.0800
$0.0800 / $0.1200 Buy Now

US Tariff Estimator: RK73B2BTTD512J by KOA Speer Electronics Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

RK73B2BTTD512J
KOA Speer Electronics Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for RK73B2BTTD512J

RK73B2BTTD512J CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

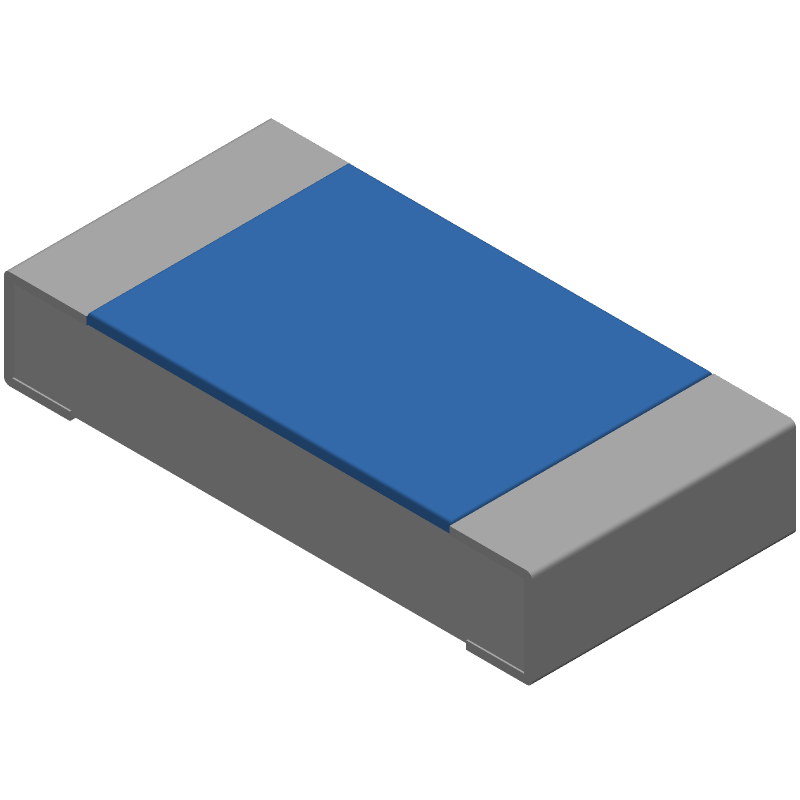

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RK73B2BTTD512J Part Data Attributes

Parametric Data
RK73B2BTTD512J KOA Speer Electronics Inc
Buy Now Datasheet
Compare Parts:
RK73B2BTTD512J KOA Speer Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KOA SPEER ELECTRONICS INC
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer KOA Speer
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.6 mm
Package Length 3.2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.6 mm
Packing Method TR, Punched Paper, 7 Inch
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Reference Standard AEC-Q200, IEC60115-8
Resistance 5100 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 200 V

Alternate Parts for RK73B2BTTD512J

This table gives cross-reference parts and alternative options found for RK73B2BTTD512J. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RK73B2BTTD512J, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1206S4J0512TAE Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 1206, RK73B2BTTD512J vs 1206S4J0512TAE
CRCW12065K10JNEAC Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP RK73B2BTTD512J vs CRCW12065K10JNEAC
MC1206P-512-JB201W RCD Components Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT RK73B2BTTD512J vs MC1206P-512-JB201W
D25/CRCW12062005K15%ET5E3 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, RK73B2BTTD512J vs D25/CRCW12062005K15%ET5E3
RK73B2BRTTEB512J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 1206, RK73B2BTTD512J vs RK73B2BRTTEB512J
RM12J512CTDK-H Cal-Chip Electronics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.33W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP RK73B2BTTD512J vs RM12J512CTDK-H
RK73B2BXTED512J KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP RK73B2BTTD512J vs RK73B2BXTED512J
CR1206AJW-512EAS Bourns Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP RK73B2BTTD512J vs CR1206AJW-512EAS
RMC32-512JTP Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP RK73B2BTTD512J vs RMC32-512JTP
WR12X512JBR Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 5100ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT RK73B2BTTD512J vs WR12X512JBR
equivalents icon

RK73B2BTTD512J Related Parts

RK73B2BTTD512J Frequently Asked Questions (FAQ)

  • The operating temperature range of the RK73B2BTTD512J is -55°C to 155°C.

  • Yes, the RK73B2BTTD512J is suitable for high-frequency applications due to its low inductance and high-frequency characteristics.

  • The power rating of the RK73B2BTTD512J is 0.5W.

  • Yes, the RK73B2BTTD512J is AEC-Q200 qualified, making it suitable for automotive applications.

  • The tolerance of the RK73B2BTTD512J is ±1%.
