Part Details for RM46L852CPGET by Texas Instruments
Results Overview of RM46L852CPGET by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
RM46L852CPGET Information
RM46L852CPGET by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| RM46L852CPGET | Texas Instruments | 16/32 Bit RISC Flash MCU, Cortex R4F, EMAC, USB 144-LQFP -40 to 105 |
Price & Stock for RM46L852CPGET
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | 15 |
|
RFQ | ||
|
|
Chip Stock | MCU16-Bit/32-BitHerculesRMARMCortexR4FRISC1280KBFlash1.2V/3.3V144-PinLQFP | 3037 |
|
RFQ | |
|
|
LCSC | ARM Cortex-R Series 220MHz 64 LQFP-144(20x20) Microcontrollers RoHS | 2 |
|
$33.6905 / $34.9717 | Buy Now |
|
|
Win Source Electronics | IC MCU 32BIT 1.25MB FLASH 144QFP / MCU 16-bit/32-bit ARM Cortex R4F RISC 1280KB Flash 1.2V/3.3V 144-Pin LQFP | 1537 |
|
$33.0166 / $49.5248 | Buy Now |
US Tariff Estimator: RM46L852CPGET by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for RM46L852CPGET
RM46L852CPGET CAD Models
-

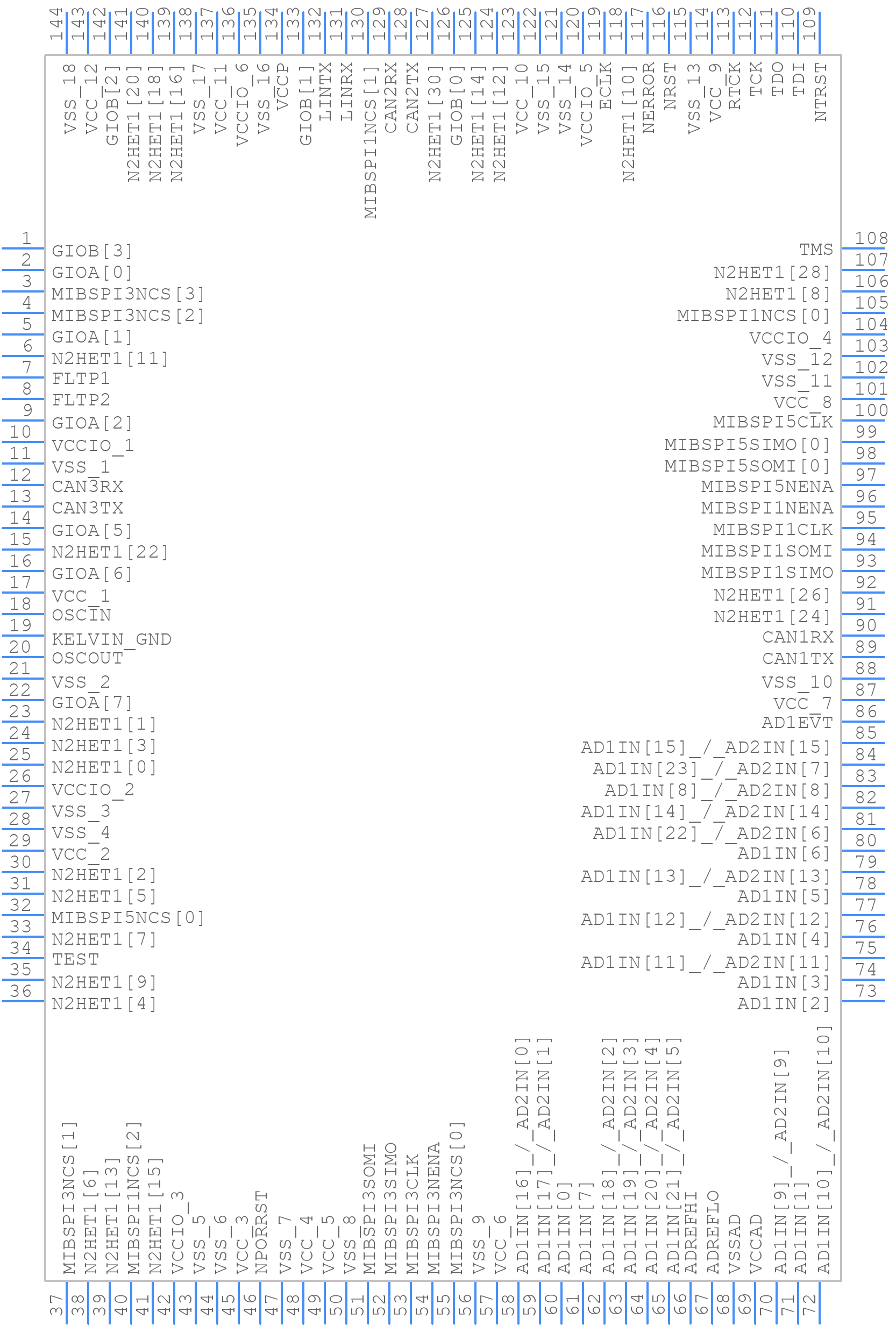

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
RM46L852CPGET Part Data Attributes
|
|
RM46L852CPGET
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
RM46L852CPGET
Texas Instruments
16/32 Bit RISC Flash MCU, Cortex R4F, EMAC, USB 144-LQFP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lfqfp, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.30 | |
| Has ADC | Yes | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | Yes | |
| CPU Family | Cortex-R4f | |
| Clock Frequency-Max | 80 Mhz | |
| DAC Channels | No | |
| DMA Channels | Yes | |
| External Data Bus Width | ||
| Format | Floating Point | |
| Integrated Cache | No | |
| JESD-30 Code | S-PQFP-G144 | |
| JESD-609 Code | e4 | |
| Length | 20 Mm | |
| Low Power Mode | Yes | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 16 | |
| Number of External Interrupts | 10 | |
| Number of I/O Lines | 101 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 144 | |
| Number of Timers | 2 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LFQFP | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 196608 | |
| RAM (words) | 192 | |
| ROM (words) | 1310720 | |
| ROM Programmability | Flash | |
| Seated Height-Max | 1.6 Mm | |
| Speed | 220 Mhz | |
| Supply Current-Max | 360 Ma | |
| Supply Voltage-Max | 1.32 V | |
| Supply Voltage-Min | 1.2 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 20 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller, Risc |
Alternate Parts for RM46L852CPGET
This table gives cross-reference parts and alternative options found for RM46L852CPGET. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RM46L852CPGET, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RM46L840CPGET | Texas Instruments | Check for Price | 16/32 Bit RISC Flash MCU, Cortex R4F, EMAC 144-LQFP -40 to 105 | RM46L852CPGET vs RM46L840CPGET |
RM46L852CPGET Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the RM46L852CPGET datasheet, but it's also recommended to follow the guidelines in the TI application note 'PCB Layout Guidelines for TI Microcontrollers' (SLUA271) for optimal performance.
-
To ensure reliable communication with the RM46L852CPGET's UART interface, make sure to use the correct baud rate, data bits, parity, and stop bits. Also, ensure that the UART clock is properly configured and that the transmit and receive lines are properly terminated.
-
The RM46L852CPGET has an operating temperature range of -40°C to 105°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
-
The RM46L852CPGET has several power modes, including active, sleep, and shutdown modes. Implement power management by using the device's power modes, configuring the clock system, and using the device's low-power peripherals. Refer to the datasheet and the TI application note 'Power Management for TI Microcontrollers' (SLUA272) for more information.
-
To ensure EMC compliance, follow the guidelines in the TI application note 'Electromagnetic Compatibility (EMC) Design Considerations for TI Microcontrollers' (SLUA273). This includes using proper shielding, grounding, and filtering, as well as following good PCB layout practices.
