Resistors / Fixed Resistors / RMCF0805FT100R
Datasheets
RMCF0805FT100R by:
SEI Stackpole Electronics Inc

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP

Part Details for RMCF0805FT100R by SEI Stackpole Electronics Inc

Results Overview of RMCF0805FT100R by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

RMCF0805FT100R Information

RMCF0805FT100R by SEI Stackpole Electronics Inc is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for RMCF0805FT100R

Part # Distributor Description Stock Price Buy
DISTI # RMCF0805FT100R
Avnet Americas - Tape and Reel (Alt: RMCF0805FT100R) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel 120000
1835000 Factory Stock
  • 5,000 $0.0024
  • 10,000 $0.0024
  • 20,000 $0.0024
  • 40,000 $0.0023
  • 80,000 $0.0023
$0.0023 / $0.0024 Buy Now
Bristol Electronics   6093
RFQ
Bristol Electronics   4964
RFQ
DISTI # RMCF0805FT100R
IBS Electronics RES THICK FILM 0805 100 OHM 1% 0.125W &#xB1, 100PPM/&#xB0, C MOLDED SMD PAPER T/R Min Qty: 5000 Package Multiple: 1 440000
  • 5,000 $0.0034
  • 10,000 $0.0032
  • 25,000 $0.0028
$0.0028 / $0.0034 Buy Now
NAC RESISTOR, 0805, 100 ohm, 1%, 0.125W - Thick film - General Purpose RoHS: Compliant Min Qty: 1 Package Multiple: 5000 1335000
  • 5,000 $0.0050
  • 25,000 $0.0030
  • 125,000 $0.0026
$0.0026 / $0.0050 Buy Now
DISTI # RMCF0805FT100R
Avnet Asia (Alt: RMCF0805FT100R) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days 0
  • 5,000 $0.0028
  • 25,000 $0.0024
  • 125,000 $0.0018
  • 250,000 $0.0018
  • 500,000 $0.0017
  • 1,000,000 $0.0017
  • 2,500,000 $0.0016
$0.0016 / $0.0028 Buy Now
LCSC 125mW 100 150V 100ppm/ Thick Film Resistor 1% 0805 Chip Resistor - Surface Mount RoHS 55400
  • 100 $0.0071
  • 1,000 $0.0055
  • 5,000 $0.0047
  • 10,000 $0.0041
  • 50,000 $0.0037
  • 100,000 $0.0035
$0.0035 / $0.0071 Buy Now

US Tariff Estimator: RMCF0805FT100R by SEI Stackpole Electronics Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

RMCF0805FT100R
SEI Stackpole Electronics Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for RMCF0805FT100R

RMCF0805FT100R CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

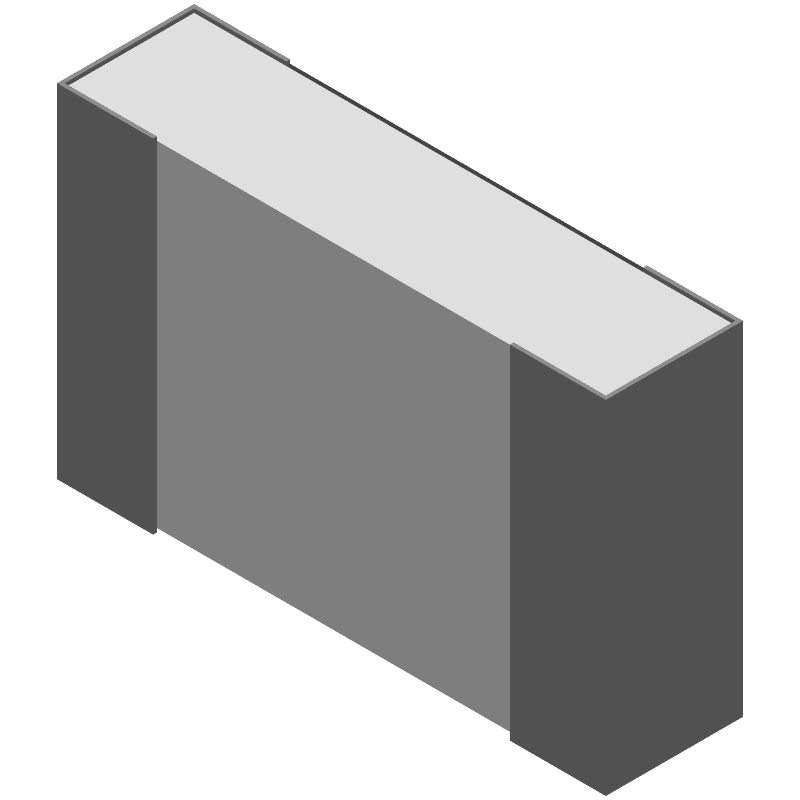

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

RMCF0805FT100R Part Data Attributes

Parametric Data
RMCF0805FT100R SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
RMCF0805FT100R SEI Stackpole Electronics Inc Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 16 Weeks
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 Mm
Package Length 2 Mm
Package Shape Rectangular Package
Package Style Smt
Package Width 1.25 Mm
Packing Method Tr, Paper, 7 Inch
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Reference Standard Aec-Q200
Resistance 100 Ω
Resistor Type Fixed Resistor
Size Code 0805
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 100 Ppm/°C
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 150 V

Alternate Parts for RMCF0805FT100R

This table gives cross-reference parts and alternative options found for RMCF0805FT100R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of RMCF0805FT100R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CRCW0805100RFKEA Vishay Intertechnologies $0.0180 Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT RMCF0805FT100R vs CRCW0805100RFKEA
RK73H2AXBK1000F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, RMCF0805FT100R vs RK73H2AXBK1000F
RC2012F1000ES Samsung Electro-Mechanics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT RMCF0805FT100R vs RC2012F1000ES
CR-05FA7--100R Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP RMCF0805FT100R vs CR-05FA7--100R
TSR6GTF1000V Tateyama Kagaku Group Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, RMCF0805FT100R vs TSR6GTF1000V
WR08X1000FBR Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT RMCF0805FT100R vs WR08X1000FBR
ASAS21-1000-FL ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP RMCF0805FT100R vs ASAS21-1000-FL
RC0805FRF07100R YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP RMCF0805FT100R vs RC0805FRF07100R
NMCT0805FT100R SEI Stackpole Electronics Inc Check for Price RESISTOR, 0.125W, 1%, 100ppm, 100ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT RMCF0805FT100R vs NMCT0805FT100R
CR0805-10W-1000FPT VENKEL LTD Check for Price Fixed Resistor, 0.1W, 100ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, RMCF0805FT100R vs CR0805-10W-1000FPT
equivalents icon

RMCF0805FT100R Related Parts

RMCF0805FT100R Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for RMCF0805FT100R is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, RMCF0805FT100R is compatible with lead-free soldering and is RoHS compliant.

  • The power rating of RMCF0805FT100R is 0.125W.

  • Yes, RMCF0805FT100R is suitable for high-frequency applications up to 1 GHz due to its low inductance and high self-resonant frequency.

  • Yes, RMCF0805FT100R is available in tape and reel packaging for automated assembly.
