RT424024 Information

RT424024 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for RT424024

Part # Distributor Description Stock Price Buy
DISTI # 75AC1672
Newark Power/Signal Relay 2 Form C Dpdt Momentary |Potter&brumfield Te Connectivity RT424024 RoHS: Not Compliant Min Qty: 40 Package Multiple: 1 Date Code: 0 Container: Bulk 38967
  • 25 $2.4900
  • 50 $2.2900
  • 100 $2.1000
  • 500 $1.9400
  • 1,000 $1.8600
$1.8600 / $2.4900 Buy Now
DISTI # 28AC1889
Newark Em Rly Dpdt 8A 24Vdc 1.44Kohm Th Rohs Compliant: Yes |Schrack Te Connectivity RT424024 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 6048
  • 1 $3.0400
  • 10 $2.9400
  • 25 $2.8200
  • 50 $2.5600
  • 100 $2.3700
  • 500 $2.2000
  • 1,000 $2.1200
$2.1200 / $3.0400 Buy Now
DISTI # 16F393
Newark Relay, Dpdt, 250Vac, 8A, Contact Configuration:Dpdt, Coil Voltage:24Vdc, Contact Current:8A, Product Range:Rt2 Series, Relay Mounting:Through Hole, Coil Type:Non Latching, Contact Voltage Vac:250V, Relay Terminals:Solder Rohs Compliant: Yes |Schrack Te Connectivity RT424024 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2101
  • 1 $3.0400
  • 10 $2.9400
  • 25 $2.8200
  • 50 $2.6200
  • 100 $2.4300
  • 500 $2.2600
  • 1,000 $2.1800
$2.1800 / $3.0400 Buy Now
DISTI # 6-1393243-8
Avnet Americas Power Relay DPDT 400VAC 24VDC Through Hole Box/Tube - Bulk (Alt: 6-1393243-8) COO: Austria RoHS: Compliant Min Qty: 20 Package Multiple: 1 Lead time: 13 Weeks, 5 Days Container: Bulk 6048
  • 1 $2.8182
  • 2,500 $2.1756
  • 5,000 $1.8602
  • 10,000 $1.6048
  • 25,000 $1.4418
$1.4418 / $2.8182 Buy Now
DISTI # 16F393
Avnet Americas Power Relay DPDT 400VAC 24VDC Through Hole Box/Tube - Bulk (Alt: 16F393) COO: Austria RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 2502 Partner Stock
  • 1 $2.9800
  • 10 $2.8800
  • 25 $2.7600
  • 50 $2.5600
  • 100 $2.3700
  • 500 $2.2000
  • 1,000 $2.1200
$2.1200 / $2.9800 Buy Now
TE Connectivity RT424024 Relay & Contactor Type: General Purpose Power Relay Current Type: DC Coil Magnetic System: Monostable Contact Arrangement: 2 Form C DPDT-CO Contact Current Rating: 8 A General Purpose Power Relay DC Monostable 2 Form C DPDT-CO | Electromechanical Relay | Part Number: RT424024 | Internal Number: 6-1393243-8 | Alias Number: AMPS-6-1393243-8 | TE Connectivity RoHS: Compliant Min Qty: 1 70340
  • 1 $6.3300
  • 10 $6.1700
  • 25 $6.0100
  • 50 $5.8500
  • 100 $5.6900
  • 250 $5.5300
  • 500 $5.3800
  • 1,000 $5.2200
$5.2200 / $6.3300 Buy Now
DISTI # AMP6-1393243-8
Heilind Electronics SCHRACK POWER PCB RELAY RT2 RT424024 Americas - 69681 in Stock
  • 1 $1.4247
  • 25 $1.3866
  • 50 $1.3506
$1.3506 / $1.4247 Buy Now
Bristol Electronics   Min Qty: 1 2
  • 1 $5.6000
$5.6000 Buy Now
DISTI # RT424024
TME Relay: electromagnetic, DPDT, Ucoil: 24VDC, 8A, 8A/250VAC, 8A/30VDC Min Qty: 1 64590
  • 1 $1.6800
  • 20 $1.5600
  • 40 $1.5000
  • 100 $1.3800
$1.3800 / $1.6800 Buy Now
DISTI # RT424024
IBS Electronics RT424024 BY TE CONNECTIVITY P&amp, B IS A RT2 SERIES POWER RELAY WITH 2 FORM C DPDT CONTACTS 24V DC COIL VOLTAGE 8A CONTACT RATING 250V AC MAX SWITCHING VOLTAGE PLUG-IN MOUNTING FOR GENERAL PURPOSE APPLICATIONS Min Qty: 20 Package Multiple: 1 29987
  • 20 $2.8280
  • 60 $1.8760
  • 260 $1.8480
$1.8480 / $2.8280 Buy Now
DISTI # AMP6-1393243-8
Interstate Connecting Components SCHRACK POWER PCB RELAY RT2 RT424024 16259
  • 1 $1.4247
  • 25 $1.3866
  • 50 $1.3506
$1.3506 / $1.4247 Buy Now
DISTI # 000000000000048986
Sager General Purpose Relays DPDT 8A 24VDC PCB Min Qty: 1 605
  • 1 $2.6900
  • 55 $2.6100
  • 137 $2.5400
  • 273 $2.4400
  • 546 $2.3600
  • 1,366 $2.2900
$2.2900 / $2.6900 Buy Now
Chip 1 Exchange INSTOCK 122918
RFQ
LCSC 250VAC 24V Through Hole29x12.7mm Power Relays RoHS 1254
  • 1 $1.4921
  • 10 $1.2357
  • 40 $1.0952
  • 100 $0.9361
$0.9361 / $1.4921 Buy Now
Win Source Electronics RELAY GEN PURPOSE DPDT 8A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole 25670
  • 60 $0.8635
  • 125 $0.8078
  • 195 $0.7800
  • 280 $0.7243
  • 360 $0.6964
  • 450 $0.6686
$0.6686 / $0.8635 Buy Now

US Tariff Estimator: RT424024 by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

RT424024
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for RT424024

RT424024 CAD Models

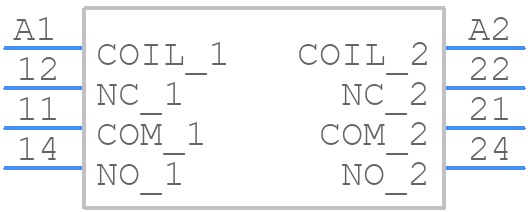

  • Part Symbol

    schematic symbol

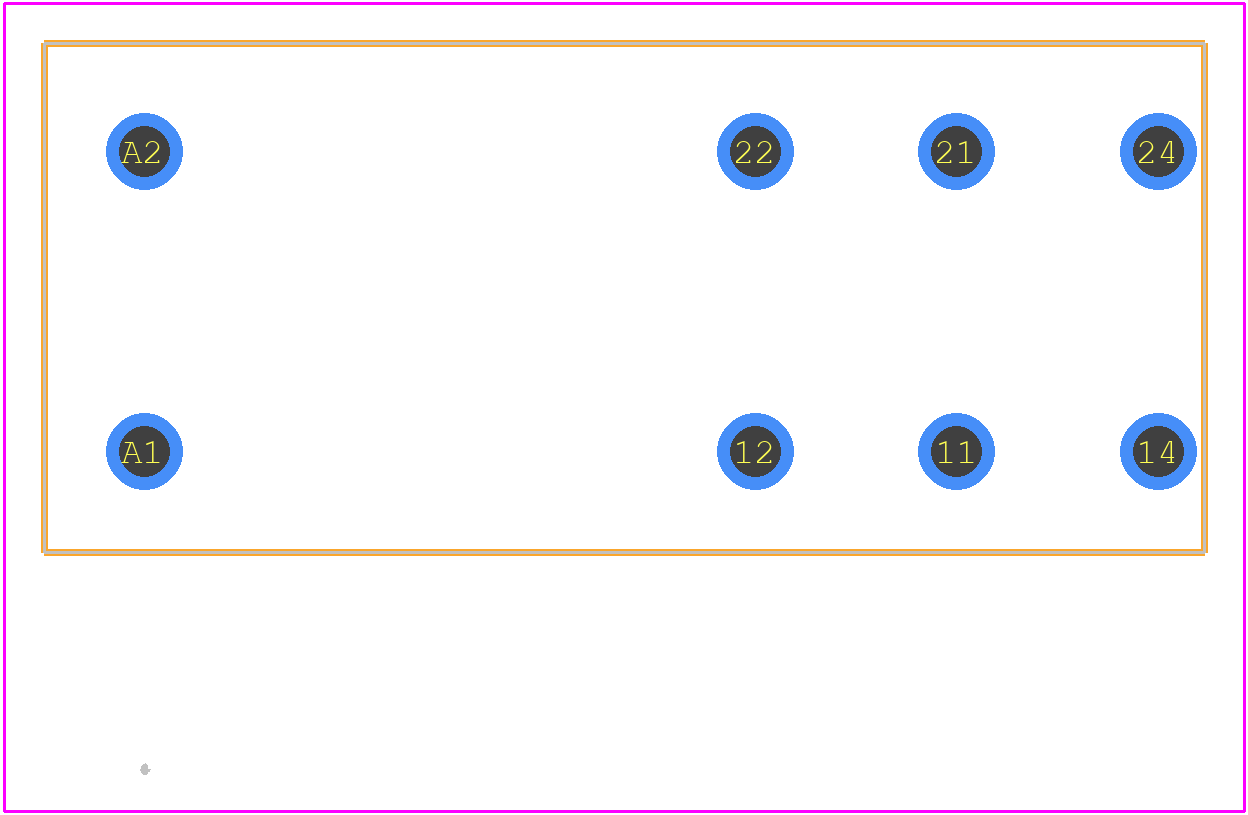

  • Footprint
