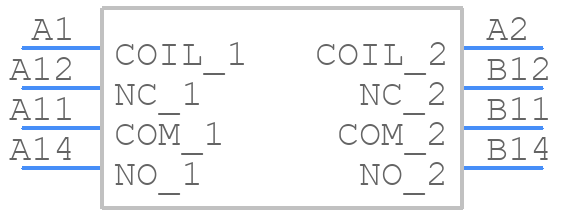

Part Symbol
-

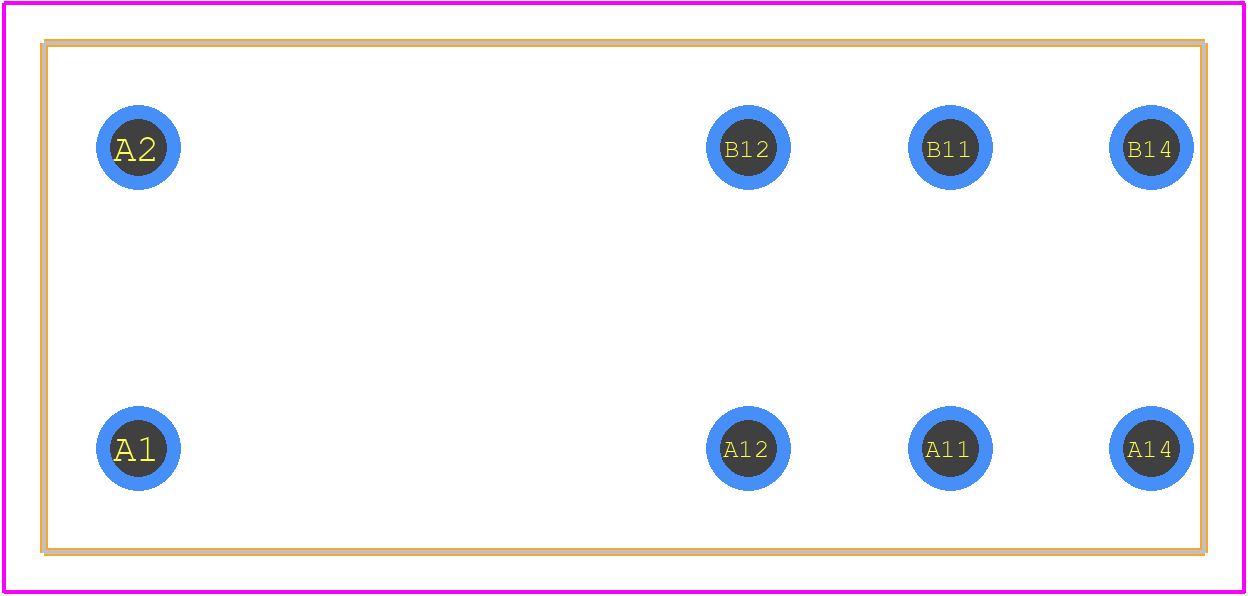

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.033A (COIL), 12VDC (COIL), 400mW (COIL), 20A (CONTACT), 24VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
48M7880
|
Newark | Rtd14012 Rohs Compliant: Yes |Schrack Te Connectivity RTD14012 Min Qty: 30 Package Multiple: 1 Date Code: 0 Container: Bulk | 1920 |
|
$2.6600 / $3.4200 | Buy Now |
DISTI #
16F388
|
Newark | General Purpose Power Relay, Contact Configuration:Spdt, Coil Voltage:12Vdc, Contact Current:16A, Product Range:Rtd Series, Relay Mounting:Pcb, Coil Type:Dc Monostable, Contact Voltage Vac:250V, Relay Terminals:Through Hole Rohs Compliant: Yes |Schrack Te Connectivity RTD14012 Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.5600 | Buy Now |
DISTI #
2266-RTD14012-ND
|
DigiKey | Power/Signal Relay, 1 Form C, SP Min Qty: 25 Container: Bulk MARKETPLACE PRODUCT |
1920 In Stock |
|
$2.7400 / $2.9000 | Buy Now |
DISTI #
6-1393238-2
|
Avnet Americas | Electromechanical Relay SPDT 16A 12VDC 360Ohm Through Hole - Rail/Tube (Alt: 6-1393238-2) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 14 Weeks, 6 Days Container: Tube | 0 |
|
$2.3560 / $2.6600 | Buy Now |
DISTI #
655-RTD14012
|
Mouser Electronics | General Purpose Relays SPDT 16 A 12VDC RoHS: Compliant | 7121 |
|
$2.5900 / $4.6000 | Buy Now |
|
Onlinecomponents.com | Power Relay 12VDC 16A SPDT(29x12.7x15.7)mm THT |
29758 In Stock 10000 On Order |
|
$2.5200 / $3.3500 | Buy Now |
DISTI #
74510986
|
Verical | Power Relay 12VDC 16A SPDT(29x12.7x15.7)mm THT Min Qty: 20 Package Multiple: 10 Date Code: 1905 | Americas - 27830 |
|
$3.1936 / $4.4371 | Buy Now |
DISTI #
66422957
|
Verical | Power Relay 12VDC 16A SPDT(29x12.7x15.7)mm THT Min Qty: 23 Package Multiple: 1 | Americas - 1681 |
|
$2.7200 | Buy Now |
DISTI #
27171345
|
Verical | Power Relay 12VDC 16A SPDT(29x12.7x15.7)mm THT Min Qty: 23 Package Multiple: 1 | Americas - 239 |
|
$2.5700 / $2.7200 | Buy Now |
|
Quest Components | POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.033A (COIL), 12VDC (COIL), 400mW (COIL), 20A (CONTACT), 24VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT | 1 |
|
$8.6649 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
RTD14012
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
RTD14012
TE Connectivity
POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.033A (COIL), 12VDC (COIL), 400mW (COIL), 20A (CONTACT), 24VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
|
Rohs Code | Yes | |
Part Life Cycle Code | Transferred | |
Ihs Manufacturer | TYCO ELECTRONICS ELCON | |
Package Description | ROHS COMPLIANT | |
Reach Compliance Code | unknown | |
ECCN Code | EAR99 | |
HTS Code | 8536.41.00.50 | |
Factory Lead Time | 14 Weeks, 6 Days | |
Samacsys Manufacturer | TE Connectivity | |
Body Breadth | 12.7 mm | |
Body Height | 15.7 mm | |
Body Length or Diameter | 29 mm | |
Coil Current(DC)-Max | 0.033 A | |
Coil Operate Voltage(DC) | 8.4 V | |
Coil Power | 400 mW | |
Coil Release Voltage(DC) | 1.2 V | |
Coil Resistance | 360 Ω | |
Coil Voltage(DC)-Max | 12 V | |
Coil/Input Supply Type | DC | |
Contact (AC) Max Rating R Load | 16A@400VAC | |
Contact Current(AC)-Max | 16 A | |
Contact Current(DC)-Max | 20 A | |
Contact (DC) Max Rating R Load | 20A@24VDC | |
Contact Voltage(AC)-Max | 400 V | |
Contact Voltage(DC)-Max | 24 V | |
Contact/Output Supply Type | AC/DC | |
Electrical Life | 6000 Cycle(s) | |
Mounting Feature | THROUGH HOLE-STRAIGHT MOUNT | |
Operate Time | 14 ms | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | -40 °C | |
Packing Method | BULK | |
Physical Dimension | 29mm X 12.7mm X 15.7mm | |
Reference Standard | BEAB; CSA; UL; VDE | |
Relay Action | MOMENTARY | |
Relay Function | SPDT | |
Relay Type | POWER/SIGNAL RELAY | |
Release Time | 12 ms | |
Sealing | RT3 | |
Surface Mount | NO | |
Termination Type | SOLDER |
