SC16IS750IPW,112 Information
SC16IS750IPW,112 by NXP Semiconductors is a Serial IO/Communication Controller.
Serial IO/Communication Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for SC16IS750IPW,112
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | SC16IS750 - Single UART with I2C-bus/SPI interface RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 10 |
|
$1.9100 / $2.3900 | Buy Now |
|
|
Vyrian | Peripheral ICs | 307 |
|
RFQ |
US Tariff Estimator: SC16IS750IPW,112 by NXP Semiconductors
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SC16IS750IPW,112
SC16IS750IPW,112 CAD Models
-

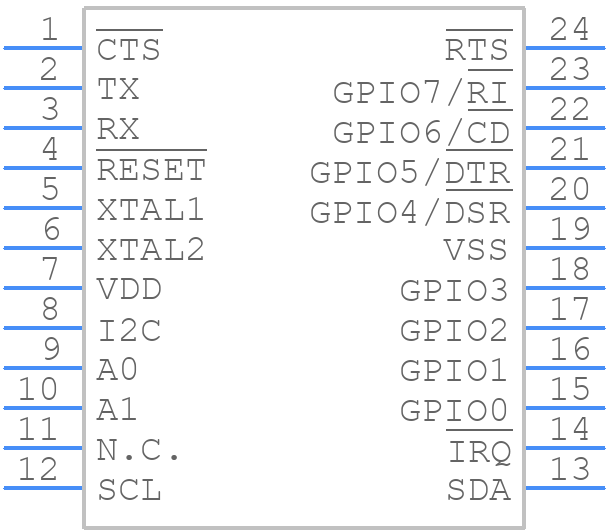

Part Symbol
-

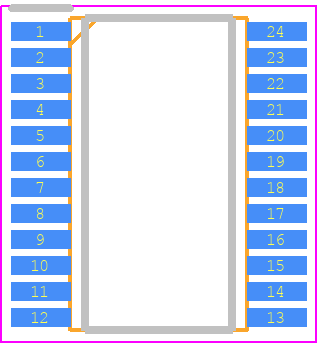

Footprint
-

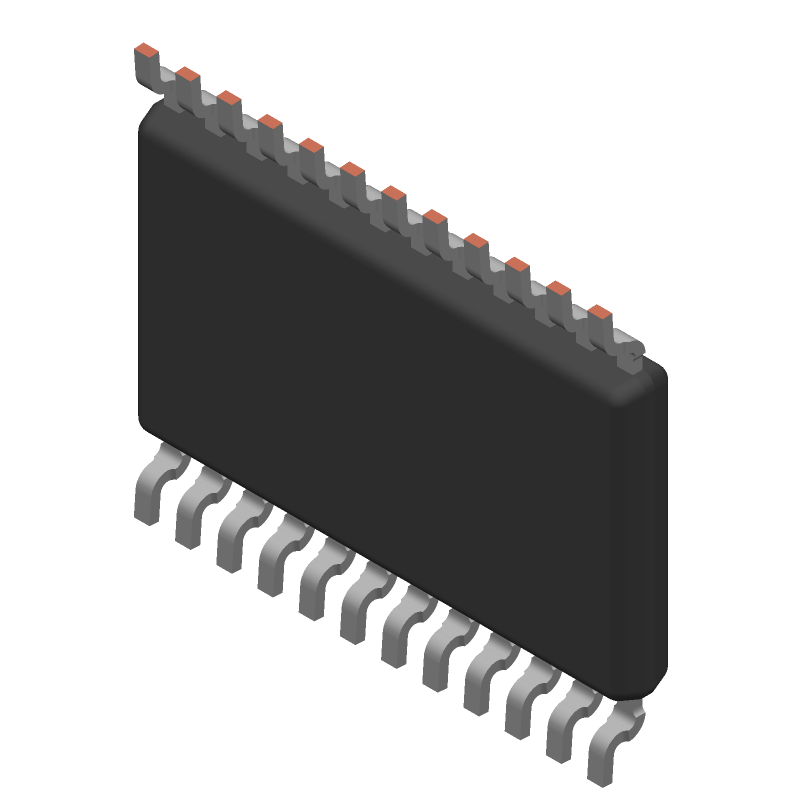

3D Model
