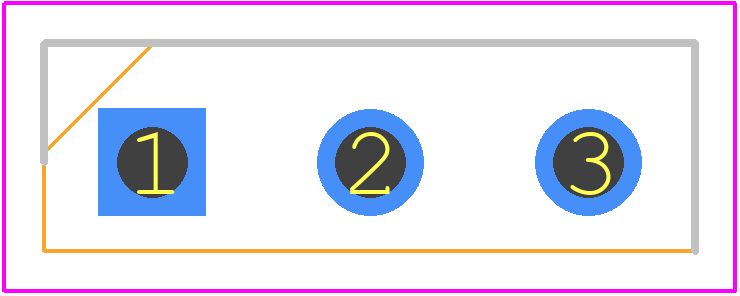

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SCT3080KLHRC11 by ROHM Semiconductor
Results Overview of SCT3080KLHRC11 by ROHM Semiconductor
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (3 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SCT3080KLHRC11 Information
SCT3080KLHRC11 by ROHM Semiconductor is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SCT3080KLHRC11
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AH4686
|
Newark | Sic Mosfet, N-Ch, 1.2Kv, 31A, To-247N-3, Mosfet Module Configuration:Single, Channel Type:N Channel, Continuous Drain Current Id:31A, Drain Source Voltage Vds:1.2Kv, No. Of Pins:3Pins, Rds(On) Test Voltage:18V, Power Dissipation:165Wrohs Compliant: Yes |Rohm SCT3080KLHRC11 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 172 |
|
$17.5200 / $22.0400 | Buy Now |
|
DISTI #
SCT3080KLHRC11
|
TME | Transistor: N-MOSFET, SiC, unipolar, 1.2kV, 31A, Idm: 77A, 165W Min Qty: 1 | 0 |
|
$17.3000 / $20.8400 | RFQ |
|
DISTI #
SCT3080KLHRC11
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 333 |
|
$12.3000 / $21.9000 | Buy Now |
|
|
LCSC | 1.2kV 31A 165W TO-247-3 Single FETs MOSFETs RoHS | 26 |
|
$22.2800 / $23.0796 | Buy Now |
Part Details for SCT3080KLHRC11
SCT3080KLHRC11 CAD Models
SCT3080KLHRC11 Part Data Attributes
|
|
SCT3080KLHRC11
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
SCT3080KLHRC11
ROHM Semiconductor
Power Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 27 Weeks | |
| Date Of Intro | 2018-12-11 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 1200 V | |
| Drain Current-Max (ID) | 31 A | |
| Drain-source On Resistance-Max | 0.104 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 35 pF | |
| JEDEC-95 Code | TO-247 | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 265 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 165 W | |
| Pulsed Drain Current-Max (IDM) | 77 A | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON CARBIDE |
