SDL-109-T-10 by: Samtec Inc

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

Part Details for SDL-109-T-10 by Samtec Inc

Results Overview of SDL-109-T-10 by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

SDL-109-T-10 Information

SDL-109-T-10 by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for SDL-109-T-10

Part # Distributor Description Stock Price Buy
DISTI # 11P6241
Newark ".100" Low Profile Double Row Screw Machine Socket Strip" |Samtec SDL-109-T-10 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 192
  • 1 $3.8600
  • 25 $3.4800
  • 50 $3.2400
  • 100 $3.0800
  • 500 $2.3500
$2.3500 / $3.8600 Buy Now
DISTI # SDL-109-T-10
Avnet Americas - Rail/Tube (Alt: SDL-109-T-10) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube 192 Factory Stock
  • 1 $3.8906
  • 500 $3.8708
  • 1,000 $3.0846
  • 2,500 $3.0687
  • 5,000 $3.0528
$3.0528 / $3.8906 Buy Now
Powell Electronics .100 High-Temp Variable Post Height Term Min Qty: 1 127
  • 1 $3.9700
  • 25 $3.5900
  • 50 $3.3400
  • 100 $3.1800
  • 500 $2.4200
$2.4200 / $3.9700 Buy Now
DISTI # 000000000000145196
Sager IC & Component Sockets .100 Low Profile Double Row Screw Machine Socket Strip Min Qty: 1 192
  • 1 $3.9700
  • 25 $3.5900
  • 50 $3.3400
  • 100 $3.1800
  • 500 $2.4200
  • 1,000 $2.1700
$2.1700 / $3.9700 Buy Now

US Tariff Estimator: SDL-109-T-10 by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SDL-109-T-10
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SDL-109-T-10

SDL-109-T-10 CAD Models

  • Part Symbol

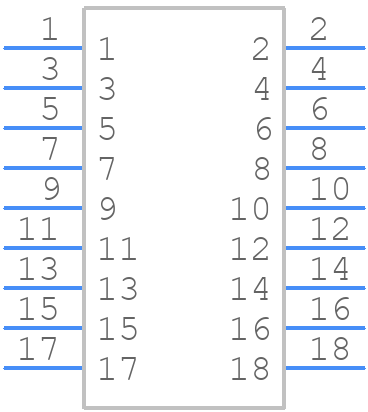

    schematic symbol

  • Footprint

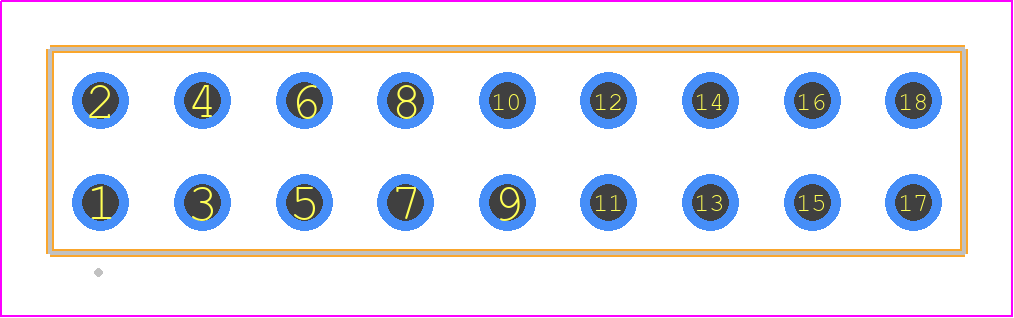

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SDL-109-T-10 Part Data Attributes

Parametric Data
SDL-109-T-10 Samtec Inc
Buy Now Datasheet
Compare Parts:
SDL-109-T-10 Samtec Inc Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer SAMTEC
Additional Feature LOW PROFILE
Body/Shell Style SOCKET
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (30) OVER NICKEL (50)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material BERYLLIUM COPPER
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
JESD-609 Code e3
MIL Conformance NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number of Rows Loaded 2
Option GENERAL PURPOSE
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 18
