Part Details for SER1390-333MLD by Coilcraft Inc
Results Overview of SER1390-333MLD by Coilcraft Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
SER1390-333MLD Information
SER1390-333MLD by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for SER1390-333MLD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 2 | 900 |
|
$1.0433 / $2.5446 | Buy Now |
|
|
Coilcraft Direct | Power inductor, high current, 20% tol, SMT, RoHS RoHS: Compliant pbFree: No Min Qty: 1 | 1662 |
|
$0.8600 / $1.8700 | Buy Now |
US Tariff Estimator: SER1390-333MLD by Coilcraft Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SER1390-333MLD
SER1390-333MLD CAD Models
-

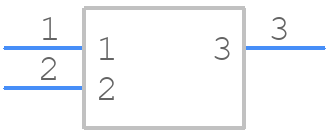

Part Symbol
-

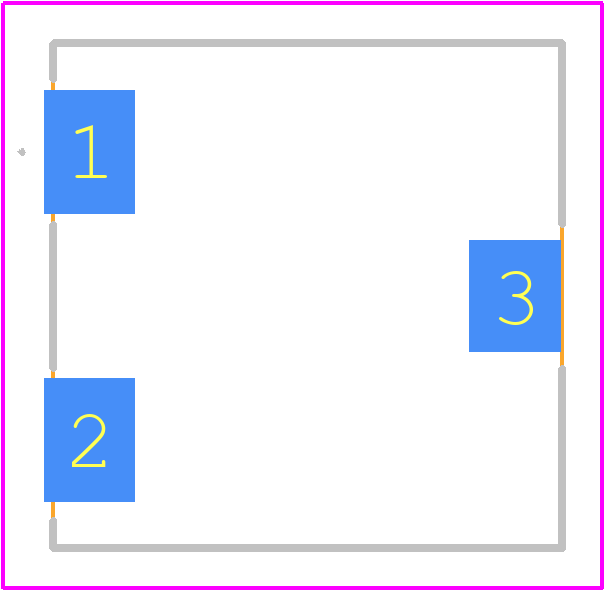

Footprint
-

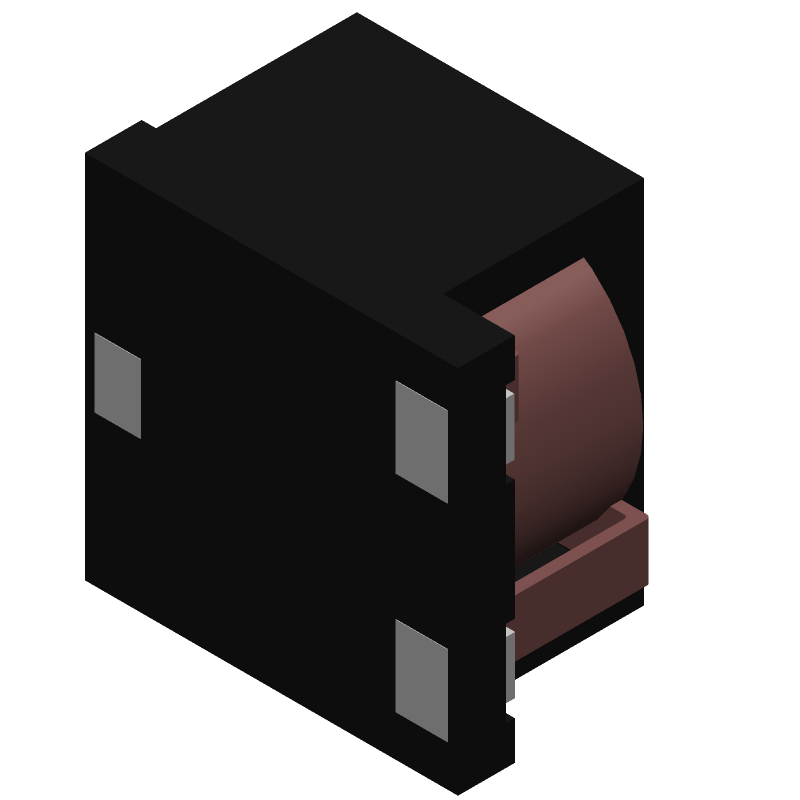

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SER1390-333MLD Part Data Attributes
|
|
SER1390-333MLD
Coilcraft Inc
Buy Now
Datasheet
|
Compare Parts:
SER1390-333MLD
Coilcraft Inc
General Purpose Inductor, 33uH, 20%, Ferrite-Core, 5353,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Case/Size Code | 5050 | |
| Core Material | Ferrite | |
| DC Resistance | 0.0231 Ω | |
| Inductance-Nom (L) | 33 µH | |
| Inductor Application | Power Inductor | |
| Inductor Type | General Purpose Inductor | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 9 Mm | |
| Package Length | 12.7 Mm | |
| Package Style | Smt | |
| Package Width | 12.6 Mm | |
| Packing Method | Tr, Embossed Plastic, 13 Inch | |
| Rated Current-Max | 7.7 A | |
| Reference Standard | Aec-Q200 | |
| Self Resonance Frequency | 15.7 Mhz | |
| Shape/Size Description | Rectangular Package | |
| Shielded | Yes | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - With Nickel (Ni) Barrier | |
| Terminal Placement | Dual In-Line | |
| Terminal Shape | Wraparound | |
| Test Frequency | 0.1 Mhz | |
| Tolerance | 20% |
Alternate Parts for SER1390-333MLD
This table gives cross-reference parts and alternative options found for SER1390-333MLD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SER1390-333MLD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SER1390-333MLB | Coilcraft Inc | Check for Price | General Purpose Inductor, 33uH, 20%, Ferrite-Core, 5353, | SER1390-333MLD vs SER1390-333MLB |
| SER1390-333MTB | Coilcraft Inc | Check for Price | General Purpose Inductor, | SER1390-333MLD vs SER1390-333MTB |
SER1390-333MLD Frequently Asked Questions (FAQ)
-
The recommended land pattern for the SER1390-333MLD can be found in the Coilcraft Land Pattern Recommendation document, which provides a detailed layout and footprint design for optimal performance and reliability.
-
The SER1390-333MLD is rated for operation up to 125°C, but its performance may degrade at higher temperatures. For high-temperature applications, consider using a high-reliability version of the inductor or consulting with Coilcraft's application engineers for customized solutions.
-
While the SER1390-333MLD is designed for general-purpose use, it can be used in high-frequency applications up to several hundred kHz. However, for frequencies above 1 MHz, consider using a specialized high-frequency inductor from Coilcraft's HF series.
-
The SRF of the SER1390-333MLD is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. For a more accurate calculation, consult with Coilcraft's application engineers or use their online SRF calculator tool.
-
Yes, the SER1390-333MLD is compatible with lead-free soldering processes and meets the requirements of the RoHS directive. However, it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly and operation.
