SLA7078MPR Information
SLA7078MPR by Sanken Electric Co Ltd is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for SLA7078MPR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | PowerMOSFETTubeALSOREQUIRESA10VTO44VSUPPLYGeneralPurposemotorcontroller5V3A-20C~150CTJ | 18500 |
|
RFQ | |
|
|
Win Source Electronics | IC MOTOR DRIVER PAR 23SLA | 15000 |
|
$8.7052 / $13.0573 | Buy Now |
US Tariff Estimator: SLA7078MPR by Sanken Electric Co Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SLA7078MPR
SLA7078MPR CAD Models
-

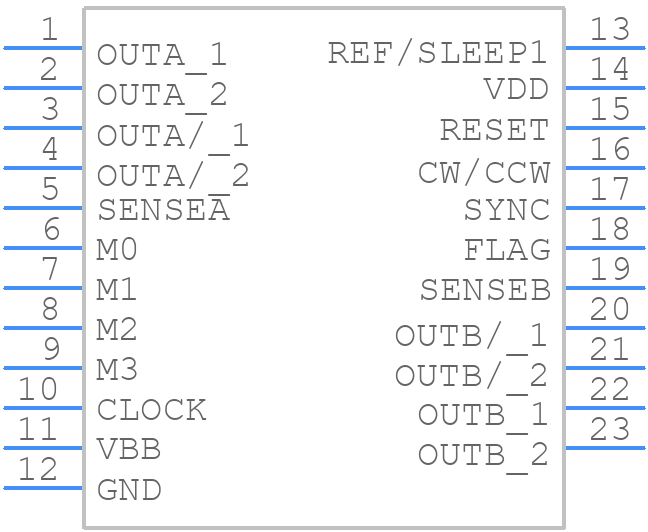

Part Symbol
-

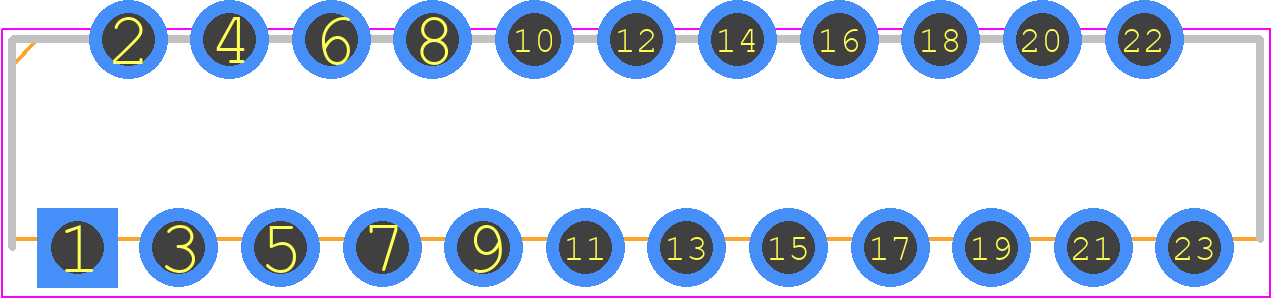

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SLA7078MPR Part Data Attributes
|
|
SLA7078MPR
Sanken Electric Co Ltd
Buy Now
Datasheet
|
Compare Parts:
SLA7078MPR
Sanken Electric Co Ltd
Stepper Motor Controller, 3A, SLA-23
|
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | SANKEN ELECTRIC CO LTD | |
| Part Package Code | ZFM | |
| Package Description | SLA-23 | |
| Pin Count | 23 | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | SANKEN ELECTRIC CO. | |
| Additional Feature | ALSO REQUIRES A 10V TO 44V SUPPLY | |
| Analog IC - Other Type | STEPPER MOTOR CONTROLLER | |
| JESD-30 Code | R-XZFM-T23 | |
| Number of Functions | 1 | |
| Number of Terminals | 23 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | UNSPECIFIED | |
| Package Code | ZFM | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | ZIG-ZAG |
