SM15T15A Information
SM15T15A by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SM15T15A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
94W9508
|
Newark | Transient Voltage Suppressor, Tvs, Transil Sm15T Series, Unidirectional, 12.8 V, Do-214Ab, 2 Rohs Compliant: Yes |Stmicroelectronics SM15T15A RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 2500 |
|
$0.3830 | Buy Now |
|
DISTI #
26M3177
|
Newark | Diode, Tvs, 15V, 1.5Kw, Product Range:Transil Sm15T Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:12.8V, Clamping Voltage Max:27.2V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Minimum Breakdown Voltage:14.3V Rohs Compliant: Yes |Stmicroelectronics SM15T15A RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 735 |
|
$0.4600 | Buy Now |
|
DISTI #
SM15T15A
|
Avnet Americas | TVS Diode, SM15T, Unidirectional, 12.8 V, 27.2 V, DO-214AB (SMC), 2 Pins - Tape and Reel (Alt: SM15T15A) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel | 5000 |
|
$0.2852 | Buy Now |
|
|
STMicroelectronics | 1500 W, 12.8 V TVS in SMC COO: France RoHS: Compliant Min Qty: 1 | 13753 |
|
$0.3900 | Buy Now |
|
|
Bristol Electronics | Min Qty: 6 | 4174 |
|
$0.2241 / $0.8618 | Buy Now |
|
DISTI #
SM15T15A
|
TME | Diode: TVS, 1.5kW, 15V, 71A, unidirectional, SMC, reel,tape Min Qty: 1 | 1167 |
|
$0.2220 / $0.3900 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 1337 |
|
RFQ | |
|
|
ComSIT USA | 1500 W TVS IN SMC Trans Voltage Suppressor Diode, 1500W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
SM15T15A
|
Avnet Silica | TVS Diode SM15T Unidirectional 128 V 272 V DO214AB SMC 2 Pins (Alt: SM15T15A) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | Silica - 340000 |
|
Buy Now | |
|
DISTI #
SM15T15A
|
EBV Elektronik | TVS Diode SM15T Unidirectional 128 V 272 V DO214AB SMC 2 Pins (Alt: SM15T15A) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days | EBV - 55000 |
|
Buy Now |
US Tariff Estimator: SM15T15A by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SM15T15A
SM15T15A CAD Models
-
Part Symbol
-

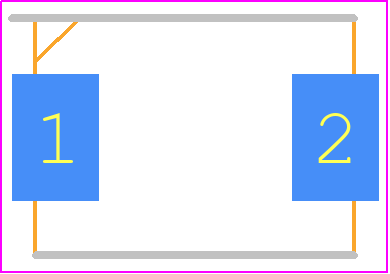

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SM15T15A Part Data Attributes
|
|
SM15T15A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SM15T15A
STMicroelectronics
1500 W, 12.8 V TVS in SMC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AB | |
| Package Description | SMC, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | UL RECOGNIZED | |
| Breakdown Voltage-Max | 15.8 V | |
| Breakdown Voltage-Min | 14.3 V | |
| Breakdown Voltage-Nom | 15 V | |
| Clamping Voltage-Max | 27.2 V | |
| Configuration | SINGLE, 1 CHANNEL | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-4, 4-5; MIL-STD-750; MIL-STD-883 | |
| Rep Pk Reverse Voltage-Max | 12.8 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Test Voltage | 12.8 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
