SM15T27A Information
SM15T27A by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SM15T27A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34M8596
|
Newark | Diode, Tvs, 27V, 1.5Kw, Product Range:Transil Sm15T Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:23.1V, Clamping Voltage Max:48.3V, Diode Case Style:Smd, No. Of Pins:2Pins, Minimum Breakdown Voltage:25.7V Rohs Compliant: Yes |Stmicroelectronics SM15T27A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 714 |
|
$0.3400 / $0.3800 | Buy Now |
|
DISTI #
SM15T27A
|
Avnet Americas | TVS Diode, Transil SM15T Series, Unidirectional, 23.1 V, 48.3 V, SMD, 2 Pins - Tape and Reel (Alt: SM15T27A) COO: France RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$0.2985 / $0.3280 | Buy Now |
|
|
STMicroelectronics | 1500 W, 23.1 V TVS in SMC COO: France RoHS: Compliant Min Qty: 1 | 4191 |
|
$0.3300 / $0.3700 | Buy Now |
|
|
Bristol Electronics | 2484 |
|
RFQ | ||
|
DISTI #
SM15T27A
|
TME | Diode: TVS, 1.5kW, 27V, 40A, unidirectional, SMC, reel,tape Min Qty: 1 | 0 |
|
$0.2790 / $0.5100 | RFQ |
|
|
Chip 1 Exchange | INSTOCK | 2500 |
|
RFQ | |
|
DISTI #
SM15T27A
|
Avnet Silica | TVS Diode Transil SM15T Series Unidirectional 231 V 483 V SMD 2 Pins (Alt: SM15T27A) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | Silica - 25000 |
|
Buy Now | |
|
DISTI #
SM15T27A
|
EBV Elektronik | TVS Diode Transil SM15T Series Unidirectional 231 V 483 V SMD 2 Pins (Alt: SM15T27A) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days | EBV - 30000 |
|
Buy Now | |
|
|
LCSC | 207A8/20us 1.5kW 48.3V 25.7V Unidirectional 23.1V DO-214AB TVS Diodes RoHS | 447 |
|
$0.4162 / $0.8324 | Buy Now |
US Tariff Estimator: SM15T27A by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SM15T27A
SM15T27A CAD Models
-
Part Symbol
-

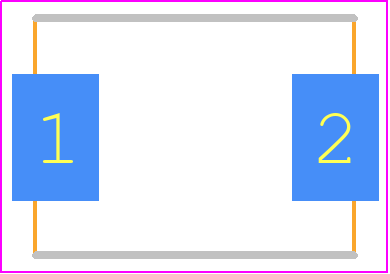

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SM15T27A Part Data Attributes
|
|
SM15T27A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SM15T27A
STMicroelectronics
1500 W, 23.1 V TVS in SMC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AB | |
| Package Description | SMC, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 53 Weeks, 1 Day | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | UL RECOGNIZED | |
| Breakdown Voltage-Max | 28.4 V | |
| Breakdown Voltage-Min | 25.7 V | |
| Breakdown Voltage-Nom | 27 V | |
| Clamping Voltage-Max | 48.3 V | |
| Configuration | SINGLE, 1 CHANNEL | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-4, 4-5; MIL-STD-750; MIL-STD-883 | |
| Rep Pk Reverse Voltage-Max | 23 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Test Voltage | 23 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SM15T27A
This table gives cross-reference parts and alternative options found for SM15T27A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SM15T27A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMCJ24A-E3/57T | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 1500W, 24V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN | SM15T27A vs SMCJ24A-E3/57T |
| SM15T27A | General Instrument Corp | Check for Price | Trans Voltage Suppressor Diode, 23.1V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, | SM15T27A vs SM15T27A |
| SMCJ24A | Square D by Schneider Electric | Check for Price | Trans Voltage Suppressor Diode, 24V V(RWM), Unidirectional, | SM15T27A vs SMCJ24A |
| SMCJ24-E3/57T | Vishay Semiconductors | Check for Price | Trans Voltage Suppressor Diode, 1500W, 24V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMCJ, 2 PIN | SM15T27A vs SMCJ24-E3/57T |
| SMCJ24 | Telefunken Microelectronics Gmbh | Check for Price | Transient Suppressor, | SM15T27A vs SMCJ24 |
| SMCJ24AHM3_A/H | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, | SM15T27A vs SMCJ24AHM3_A/H |
| SMCJ24A/57T | Vishay Semiconductors | Check for Price | Trans Voltage Suppressor Diode, 1500W, Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN | SM15T27A vs SMCJ24A/57T |
SM15T27A Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad, and to use thermal vias to dissipate heat to the other side of the board. A minimum of 2oz copper thickness is recommended.
-
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Also, ensure good thermal design, and consider using a heat sink or thermal interface material if necessary.
-
The maximum allowed voltage on the input pins is the voltage rating of the device, which is 27V. Exceeding this voltage can cause damage to the device.
-
To protect the device from ESD and overvoltage, use ESD protection devices such as TVS diodes or ESD arrays on the input lines. Also, consider using overvoltage protection devices such as voltage regulators or overvoltage protection ICs.
-
The recommended soldering profile for the SM15T27A is a peak temperature of 260°C, with a dwell time of 30-60 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
