SMAJ15A Information
SMAJ15A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMAJ15A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH8455
|
Newark | Tvs Diode, 400W, 15V, Unidir, Do-214Ac, Product Range:Smaj Series, Tvs Polarity:Unidirectional, Reverse Stand-Off Voltage Vrwm:15V, Clamping Voltage Vc Max:24.4V, Diode Case Style:Do-214Ac, No. Of Pins:2Pins, Breakdown Voltage Rohs Compliant: Yes |Littelfuse SMAJ15A RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel | 5000 |
|
$0.1530 / $0.1730 | Buy Now |
|
DISTI #
06R1847
|
Newark | Tvs Diode, 400W, 15V, Do-214Ac, Product Range:Smaj Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:15V, Clamping Voltage Max:24.4V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Minimum Breakdown Voltage:16.7V Rohs Compliant: Yes |Littelfuse SMAJ15A RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1480 | Buy Now |
|
DISTI #
70519309
|
RS | SMAJ15A, UNI-DIRECTIONAL TVS DIODE, 400W, 2-PIN DO-214AC Min Qty: 1 Package Multiple: 1 Container: Bulk | 363 |
|
$0.2390 / $0.2650 | Buy Now |
|
|
Bristol Electronics | 4103 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 12 | 95 |
|
$0.2250 / $0.4500 | Buy Now |
|
DISTI #
SMAJ15A-LF
|
TME | Diode: TVS, 400W, 17.6V, 16.4A, unidirectional, ±5%, DO214AC, SMAJ Min Qty: 1 | 3647 |
|
$0.0610 / $0.2900 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 3467 |
|
RFQ | |
|
DISTI #
DTRL9062
|
Rutronik | TVS-DIODE UNI 0,4KW 18V SMA RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Stock DE - 20000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.0532 / $0.0631 | Buy Now |
|
DISTI #
SMAJ15A
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: No Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2981 |
|
$0.0902 / $0.0932 | Buy Now |
|
|
Chip Stock | SMAJSeries24.4V400WSurfaceMountUni-DirectionalTVSDiode-DO-214AC | 36388 |
|
RFQ |
US Tariff Estimator: SMAJ15A by Littelfuse Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SMAJ15A
SMAJ15A CAD Models
-
Part Symbol
-

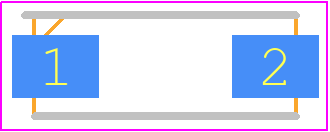

Footprint
-
