SMAJ40CA-TR Information
SMAJ40CA-TR by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMAJ40CA-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1467643
|
Farnell | DIODE, TVS, 40V, 400W, SMD COO: MA RoHS: Compliant Min Qty: 5 Lead time: 18 Weeks, 6 Days Container: Cut Tape | 1984 |
|
$0.1313 / $0.2219 | Buy Now |
|
DISTI #
1467643RL
|
Farnell | DIODE, TVS, 40V, 400W, SMD COO: MA RoHS: Compliant Min Qty: 50 Lead time: 18 Weeks, 6 Days Container: Reel | 1984 |
|
$0.1313 / $0.2074 | Buy Now |
|
DISTI #
2252458
|
Farnell | DIODE, TVS, 40V, 400W, BI, SMA, RL COO: MA RoHS: Compliant Min Qty: 5000 Lead time: 18 Weeks, 1 Days Container: Reel | 0 |
|
$0.1097 / $0.1120 | Buy Now |
|
DISTI #
SMAJ40CA-TR
|
Avnet Americas | Diode TVS Single Bi-Dir 40V 400W 2-Pin SMA T/R - Tape and Reel (Alt: SMAJ40CA-TR) COO: China RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Reel | 75000 |
|
$0.0557 | Buy Now |
|
DISTI #
70014010
|
RS | TVSS, DIODE, FOR INDUSTRIAL EQUIP,27A, SMD, SOLDER TERM,4.6MMLX2.95MMWX2.03MMH Min Qty: 25 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1240 / $0.1460 | RFQ |
|
|
STMicroelectronics | 400 W, 40 V TVS in SMA COO: France RoHS: Compliant Min Qty: 1 | 15216 |
|
$0.1400 / $0.2000 | Buy Now |
|
|
Bristol Electronics | 8021 |
|
RFQ | ||
|
DISTI #
SMAJ40CA-TR
|
TME | Diode: TVS, 400W, 44.4V, 27A, bidirectional, SMA, reel,tape Min Qty: 1 | 5073 |
|
$0.1020 / $0.2000 | Buy Now |
|
DISTI #
SMAJ40CA-TR
|
Avnet Silica | Diode TVS Single BiDir 40V 400W 2Pin SMA TR (Alt: SMAJ40CA-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days | Silica - 490000 |
|
Buy Now | |
|
|
Chip Stock | SMAJSeries400W40VBiDirectionalSMTTVSDiode-DO-214AC | 112500 |
|
RFQ |
US Tariff Estimator: SMAJ40CA-TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SMAJ40CA-TR
SMAJ40CA-TR CAD Models
-
Part Symbol
-
Footprint
-

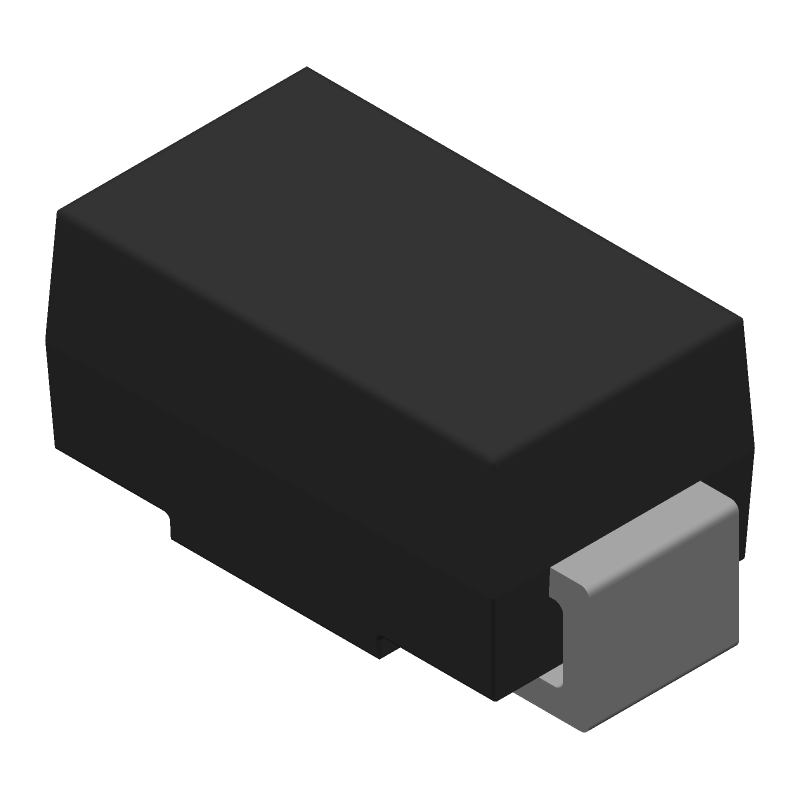

3D Model
