SMAJ48CA by:
Littelfuse Inc

Trans Voltage Suppressor Diode, 400W, 48V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMA, 2 PIN

Part Details for SMAJ48CA by Littelfuse Inc

Results Overview of SMAJ48CA by Littelfuse Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SMAJ48CA Information

SMAJ48CA by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SMAJ48CA

Part # Distributor Description Stock Price Buy
DISTI # 06R1886
Newark Tvs Diode, 400W, 48V, Do-214Ac, Full Reel, Product Range:Smaj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:48V, Clamping Voltage Max:77.4V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Qualification:- Rohs Compliant: Yes |Littelfuse SMAJ48CA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.2190
  • 10,000 $0.1970
  • 20,000 $0.1810
  • 30,000 $0.1700
  • 50,000 $0.1590
$0.1590 / $0.2190 Buy Now
DISTI # 71J2027
Newark Tvs Diode, 400W, 48V, Do-214Ac, Product Range:Smaj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:48V, Clamping Voltage Max:77.4V, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Minimum Breakdown Voltage:53.3V Rohs Compliant: Yes |Littelfuse SMAJ48CA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 25 $0.3600
$0.3600 Buy Now
DISTI # 71336648
RS 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPRESSORS Min Qty: 5000 Package Multiple: 1 Container: Bulk 0
  • 5,000 $0.4200
  • 25,000 $0.3990
  • 50,000 $0.3780
$0.3780 / $0.4200 RFQ
Bristol Electronics   1352
RFQ
Bristol Electronics   Min Qty: 12 155
  • 12 $0.4500
  • 35 $0.2250
$0.2250 / $0.4500 Buy Now
DISTI # SMAJ48CA-LF
TME Diode: TVS, 400W, 56.1V, 5.2A, bidirectional, ±5%, DO214AC, SMAJ Min Qty: 1 0
  • 1 $0.3100
  • 5 $0.2400
  • 10 $0.2000
  • 100 $0.1100
  • 500 $0.0880
  • 1,000 $0.0830
  • 5,000 $0.0790
$0.0790 / $0.3100 RFQ
DISTI # DTRL11407
Rutronik TVS-DIODE BI 0,4KW 56V SMA RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel Stock DE - 5000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 5,000 $0.0720
  • 10,000 $0.0689
  • 15,000 $0.0674
  • 25,000 $0.0638
  • 35,000 $0.0607
$0.0607 / $0.0720 Buy Now
DISTI # SMAJ48CA
Chip One Stop Semiconductors RoHS: Compliant pbFree: No Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 4520
  • 5 $0.1570
  • 50 $0.1240
  • 100 $0.0988
  • 200 $0.0984
  • 500 $0.0960
  • 1,000 $0.0943
  • 5,000 $0.0942
  • 80,000 $0.0939
$0.0939 / $0.1570 Buy Now
Chip Stock SMAJSeries77.4V0.4kWSurfaceMountBi-DirectionalTVSDiode-DO-214AC 34500
RFQ
LCSC 5.2A 400W10/1000us 77.4V 58.9V Bidirectional 48V DO-214AC(SMA) TVS Diodes RoHS 2450
  • 5 $0.1050
  • 50 $0.0849
  • 150 $0.0749
  • 500 $0.0674
  • 2,500 $0.0614
  • 5,000 $0.0584
$0.0584 / $0.1050 Buy Now

US Tariff Estimator: SMAJ48CA by Littelfuse Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SMAJ48CA
Littelfuse Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SMAJ48CA

SMAJ48CA CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

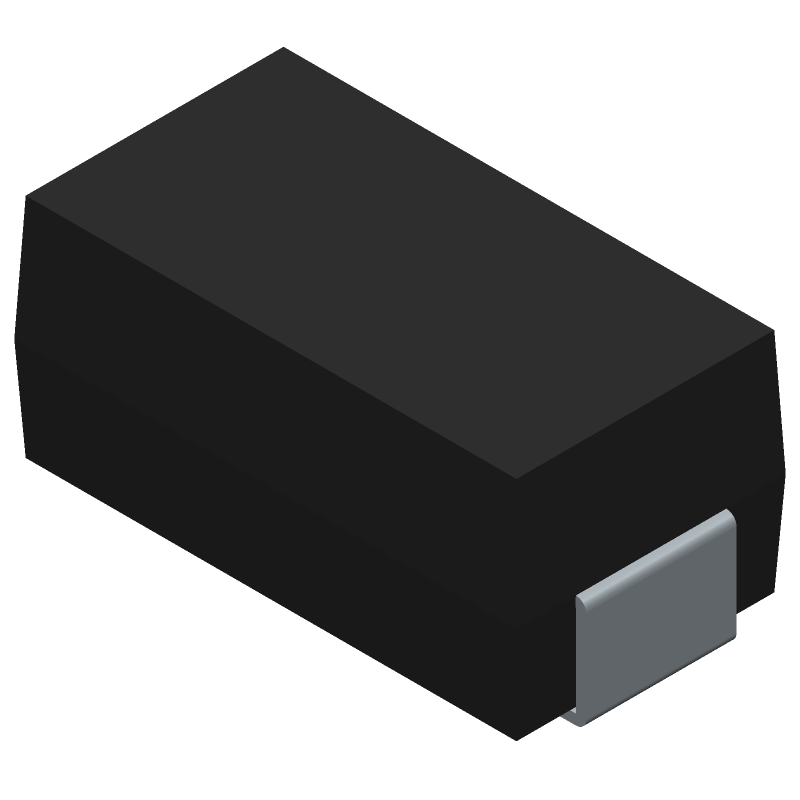

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SMAJ48CA Part Data Attributes

Parametric Data
SMAJ48CA Littelfuse Inc
Buy Now Datasheet
Compare Parts:
SMAJ48CA Littelfuse Inc Trans Voltage Suppressor Diode, 400W, 48V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMA, 2 PIN
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code DO-214AC
Pin Count 2
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Additional Feature Excellent Clamping Capability, Low Inductance
Breakdown Voltage-Max 58.9 V
Breakdown Voltage-Min 53.3 V
Breakdown Voltage-Nom 56.1 V
Clamping Voltage-Max 77.4 V
Configuration Single
Diode Element Material Silicon
Diode Type Trans Voltage Suppressor Diode
Forward Voltage-Max (VF) 3.5 V
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 400 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Polarity Bidirectional
Power Dissipation-Max 3.3 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 48 V
Reverse Current-Max 1 µA
Surface Mount Yes
Technology Avalanche
Terminal Finish Matte Tin (Sn)
Terminal Form C Bend
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
