SMBJ5352B-TP Information
SMBJ5352B-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMBJ5352B-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
22AM0431
|
Newark | Zener Diode, 15V, 5W, Do-214Aa Rohs Compliant: Yes |Micro Commercial Components SMBJ5352B-TP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2370 |
|
$0.2970 / $0.5910 | Buy Now |
|
|
Bristol Electronics | Min Qty: 9 | 2963 |
|
$0.0900 / $0.6000 | Buy Now |
|
|
Bristol Electronics | 490 |
|
RFQ | ||
|
DISTI #
SMBJ5352B-TP
|
TME | Diode: Zener, 5W, 15V, SMD, reel,tape, SMB, single diode, 1uA Min Qty: 1 | 0 |
|
$0.1610 / $0.5090 | RFQ |
|
|
Chip Stock | ZenerDiode,15V,5W,Do-214AaRohsCompliant:Yes|MicroCommercialComponentsSMBJ5352B-TP | 36426 |
|
RFQ | |
|
|
LCSC | 5W 15V SMB(DO-214AA) Single Zener Diodes RoHS | 9680 |
|
$0.1791 / $0.2558 | Buy Now |
US Tariff Estimator: SMBJ5352B-TP by Micro Commercial Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SMBJ5352B-TP
SMBJ5352B-TP CAD Models
-
Part Symbol
-
Footprint
-

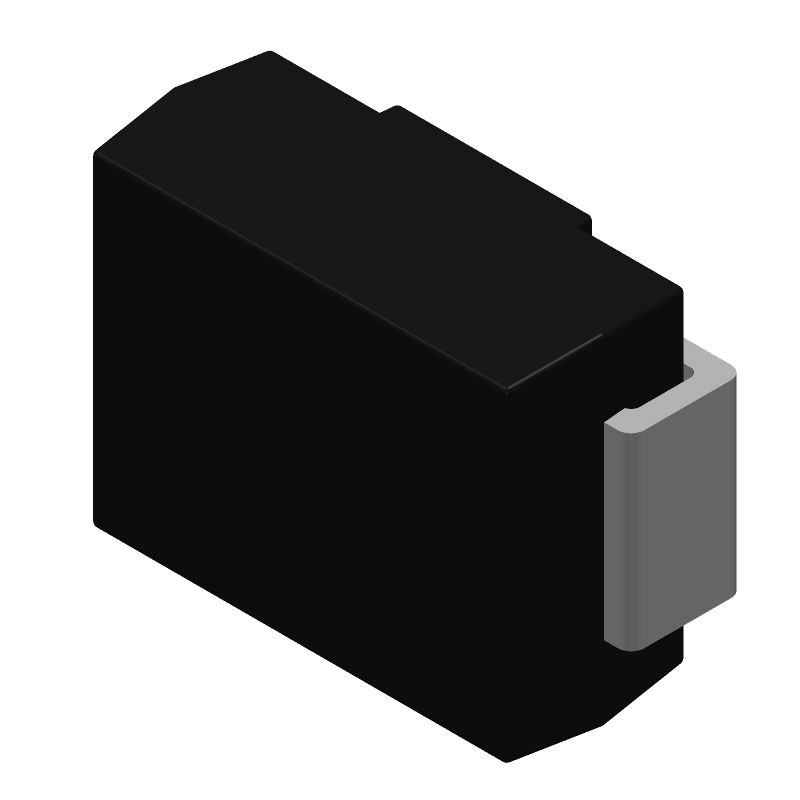

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SMBJ5352B-TP Part Data Attributes
|
|
SMBJ5352B-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SMBJ5352B-TP
Micro Commercial Components
Zener Diode, 15V V(Z), 5%, 5W, Silicon, Unidirectional, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-214AA | |
| Package Description | 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 2.5 Ω | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Knee Impedance-Max | 75 Ω | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 15 V | |
| Reverse Current-Max | 0.001 µA | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 75 mA |
Alternate Parts for SMBJ5352B-TP
This table gives cross-reference parts and alternative options found for SMBJ5352B-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMBJ5352B-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMBJ5352BE3TR | Microsemi Corporation (now Microchip) | Check for Price | Zener Diode, 15V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, ROHS COMPLIANT, PLASTIC, SMBJ, 2 PIN | SMBJ5352B-TP vs SMBJ5352BE3TR |
| MSPSMBJ5352BE3 | Microsemi Corporation (now Microchip) | Check for Price | Zener Diode, 15V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, ROHS COMPLIANT, PLASTIC, SMBJ, 2 PIN | SMBJ5352B-TP vs MSPSMBJ5352BE3 |
| SMBJ5352B | Microsemi Corporation (now Microchip) | Check for Price | Zener Diode, 15V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ5352B-TP vs SMBJ5352B |
| SMBJ5352B | Microchip Technology Inc | Check for Price | Zener Diode, 15V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA | SMBJ5352B-TP vs SMBJ5352B |
| MSPSMBJ5352BE3TR | Microsemi Corporation (now Microchip) | Check for Price | Zener Diode, 15V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ5352B-TP vs MSPSMBJ5352BE3TR |
| MQSMBJ5352B | Microsemi Corporation (now Microchip) | Check for Price | Zener Diode, 15V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ5352B-TP vs MQSMBJ5352B |
| SMBJ5352BTR | Microsemi Corporation (now Microchip) | Check for Price | Zener Diode, 15V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ5352B-TP vs SMBJ5352BTR |
| MVSMBJ5352B | Microsemi Corporation (now Microchip) | Check for Price | Zener Diode, 15V V(Z), 5%, 1.38W, Silicon, Unidirectional, DO-214AA, PLASTIC, SMBJ, 2 PIN | SMBJ5352B-TP vs MVSMBJ5352B |
SMBJ5352B-TP Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the SMBJ5352B-TP can be found in the Micro Commercial Components' application note or in the IPC-7351 standard. It's essential to follow the recommended footprint to ensure proper soldering and to prevent thermal issues.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C. Apply a small amount of solder paste to the pads, and use a reflow oven or a hot air gun to solder the component. Avoid overheating the component, and ensure the solder joints are clean and free of oxidation.
-
The SMBJ5352B-TP has an operating temperature range of -55°C to 150°C. However, it's essential to note that the component's performance and reliability may degrade if operated at extreme temperatures for an extended period.
-
The SMBJ5352B-TP is a commercial-grade component, and its use in high-reliability or aerospace applications may require additional testing and qualification. It's recommended to consult with Micro Commercial Components or a qualified reliability engineer to determine the component's suitability for such applications.
-
Handle the SMBJ5352B-TP with anti-static wrist straps, mats, or gloves to prevent ESD damage. Store the components in their original packaging or in a conductive bag to prevent static buildup. Avoid touching the component's pins or leads, and use ESD-safe tools and equipment during assembly.
