SMCJ28A Information
SMCJ28A by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMCJ28A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67R0262
|
Newark | Diode, Full Reel, Product Range:Smcj Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:28V, Clamping Voltage Max:45.4V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Minimum Breakdown Voltage:31.1V, Qualification:- Rohs Compliant: Yes |Bourns SMCJ28A RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2320 / $0.2670 | Buy Now |
|
DISTI #
67R1743
|
Newark | Diode, Product Range:Smcj Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:28V, Clamping Voltage Max:45.4V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Minimum Breakdown Voltage:31.1V, Qualification:- Rohs Compliant: Yes |Bourns SMCJ28A RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.3100 | Buy Now |
|
DISTI #
SMCJ28A
|
Avnet Americas | - Tape and Reel (Alt: SMCJ28A) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 18000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.1498 / $0.1754 | Buy Now |
|
DISTI #
71279620
|
RS | DIO TVS VWM 28V 1.5KW UNIDIR SMC Min Qty: 12000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$0.2410 / $0.2670 | RFQ |
|
|
Bristol Electronics | Min Qty: 9 | 1725 |
|
$0.1200 / $0.6000 | Buy Now |
|
DISTI #
SMCJ28A-BOU
|
TME | Diode: TVS, 1.5kW, 31.1÷34.4V, 33.1A, unidirectional, ±5%, SMC, SMCJ Min Qty: 1 | 0 |
|
$0.1720 / $0.3800 | RFQ |
|
DISTI #
SMCJ28A
|
Avnet Abacus | - Tape and Reel (Alt: SMCJ28A) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Component Electronics, Inc | SMT T/R | 840 |
|
$0.3300 / $0.5000 | Buy Now |
|
|
LCSC | 33.1A 45.4V 1.5kW 31.1V Unidirectional 28V SMC(DO-214AB) TVS Diodes RoHS | 15 |
|
$0.8660 / $1.3020 | Buy Now |
US Tariff Estimator: SMCJ28A by Bourns Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SMCJ28A
SMCJ28A CAD Models
-
Part Symbol
-

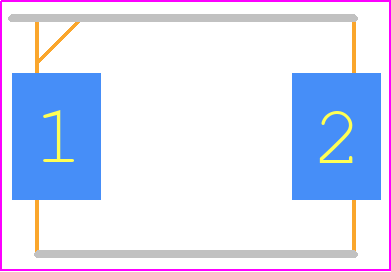

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SMCJ28A Part Data Attributes
|
|
SMCJ28A
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
SMCJ28A
Bourns Inc
Trans Voltage Suppressor Diode, 1500W, 28V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Part Package Code | DO-214AB | |
| Pin Count | 2 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Breakdown Voltage-Max | 35.8 V | |
| Breakdown Voltage-Min | 31.1 V | |
| Breakdown Voltage-Nom | 33.45 V | |
| Clamping Voltage-Max | 45.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 28 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for SMCJ28A
This table gives cross-reference parts and alternative options found for SMCJ28A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SMCJ28A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMCJ28A-TP | Micro Commercial Components | $0.2630 | Trans Voltage Suppressor Diode, 1500W, 28V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN | SMCJ28A vs SMCJ28A-TP |
| SMCJ28 | ProTek Devices | Check for Price | Trans Voltage Suppressor Diode, 1500W, Unidirectional, 1 Element, Silicon, DO-214AB, | SMCJ28A vs SMCJ28 |
| SMCJ28A | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 1500W, 28V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMC, 2 PIN | SMCJ28A vs SMCJ28A |
| SMCJ28A | Micro Commercial Components | Check for Price | Trans Voltage Suppressor Diode, 1500W, 28V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN | SMCJ28A vs SMCJ28A |
| SMCJ28 | Semtech Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 28V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, | SMCJ28A vs SMCJ28 |
| SMCJ28A-7 | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 1500W, 28V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMC, 2 PIN | SMCJ28A vs SMCJ28A-7 |
| SMCJ28A-13 | Diodes Incorporated | Check for Price | Trans Voltage Suppressor Diode, 1500W, 28V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMC, 2 PIN | SMCJ28A vs SMCJ28A-13 |
| SMCJ28A | Semtech Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 28V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, | SMCJ28A vs SMCJ28A |
| SMCJ28 | RFE International Inc | Check for Price | Trans Voltage Suppressor Diode, 28V V(RWM), Unidirectional, | SMCJ28A vs SMCJ28 |
| TFMCJ28A | Rectron Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 1500W, 28V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2 | SMCJ28A vs TFMCJ28A |
SMCJ28A Frequently Asked Questions (FAQ)
-
The recommended land pattern for the SMCJ28A can be found in the Bourns application note AN-13, which provides guidelines for PCB layout and land pattern design.
-
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the Bourns application note AN-14. Additionally, use a solder with a melting point below 260°C to prevent damage to the component.
-
The SMCJ28A is rated for operation from -40°C to 150°C, but it's recommended to derate the component's voltage rating by 1.5% per degree Celsius above 125°C to ensure reliable operation.
-
While the SMCJ28A is primarily designed for ESD protection, it can be used in high-frequency applications up to 1 GHz. However, the component's impedance and insertion loss should be considered in the design, and simulation or testing is recommended to ensure optimal performance.
-
To prevent ESD damage during manufacturing and handling, follow proper ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, consider using ESD-protective packaging for the SMCJ28A during shipping and storage.
