SMCJ5.0CA Information
SMCJ5.0CA by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMCJ5.0CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48AM5065
|
Newark | Esd Protection Diodes/Tvs Diodes Esd Protection |Bourns SMCJ5.0CA RoHS: Not Compliant Min Qty: 300 Package Multiple: 1 Date Code: 0 Container: Bulk | 10800 |
|
$0.2410 / $0.3640 | Buy Now |
|
DISTI #
67R0279
|
Newark | Diode, Full Reel, Product Range:Smcj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:5V, Clamping Voltage Max:9.2V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Minimum Breakdown Voltage:6.4V, Qualification:- Rohs Compliant: Yes |Bourns SMCJ5.0CA RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2270 / $0.2710 | Buy Now |
|
DISTI #
67R1760
|
Newark | Diode, Product Range:Smcj Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:5V, Clamping Voltage Max:9.2V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Minimum Breakdown Voltage:6.4V, Maximum Breakdown Voltage:7.23Vrohs Compliant: Yes |Bourns SMCJ5.0CA RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.2810 | Buy Now |
|
DISTI #
SMCJ5.0CA
|
Avnet Americas | - Tape and Reel (Alt: SMCJ5.0CA) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 12000 |
|
$0.1408 | Buy Now |
|
DISTI #
71279631
|
RS | DIO TVS VWM 5.0V 1.5KW BIDIR SMC Min Qty: 12000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$0.2200 / $0.2450 | RFQ |
|
|
Bristol Electronics | Min Qty: 8 | 2592 |
|
$0.1350 / $0.6750 | Buy Now |
|
DISTI #
SMCJ5.0CA-BOU
|
TME | Diode: TVS, 1.5kW, 6.4÷7V, 163A, bidirectional, ±5%, SMC, reel,tape Min Qty: 1 | 0 |
|
$0.2190 / $0.5900 | RFQ |
|
DISTI #
SMCJ5.0CA
|
Avnet Abacus | - Tape and Reel (Alt: SMCJ5.0CA) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: SMCJ5.0CA by Bourns Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SMCJ5.0CA
SMCJ5.0CA CAD Models
-
Part Symbol
-

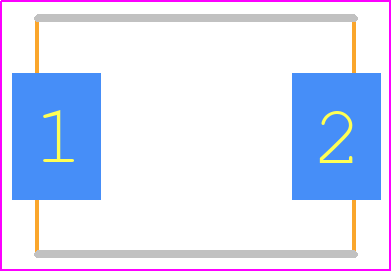

Footprint
-

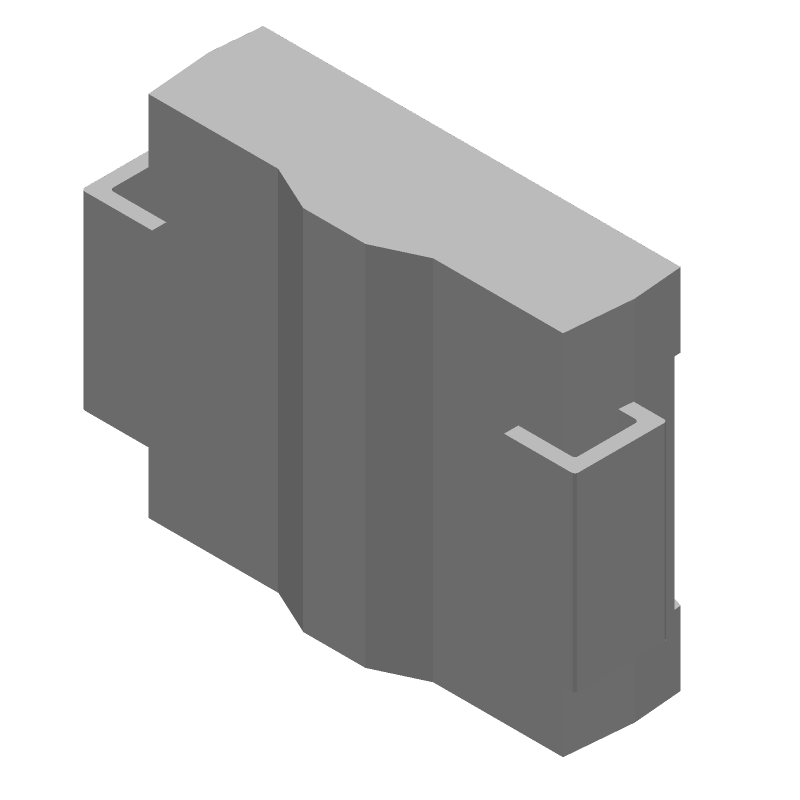

3D Model
