SMMBD914LT3G Information
SMMBD914LT3G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SMMBD914LT3G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
76T7276
|
Newark | Ss Sot23 Swch Dio Spcl |Onsemi SMMBD914LT3G RoHS: Not Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0160 / $0.0170 | Buy Now |
|
DISTI #
SMMBD914LT3G
|
Avnet Americas | - Tape and Reel (Alt: SMMBD914LT3G) COO: Malaysia RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel | 60000130000 Factory Stock |
|
$0.0112 / $0.0122 | Buy Now |
|
DISTI #
70300575
|
RS | SMMBD914LT3G SWITCHING DIODE, 200MA 100V, 3-PIN SOT-23 Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1730 | RFQ |
|
|
Bristol Electronics | 600 |
|
RFQ | ||
|
|
Rochester Electronics | Rectifier Diode, 1 Phase, 1 Element, 0.2A, 100V V(RRM), Silicon, TO-236 RoHS: Compliant Status: Active Min Qty: 1 | 6900 |
|
$0.0089 / $0.0144 | Buy Now |
|
DISTI #
SMMBD914LT3G
|
IBS Electronics | SMMBD914LT3G by ONSEMI is a small signal switching diode with 225 mW power, 100 V reverse voltage, 0.2 A current, and 4 ns recovery time in a 3-pin SOT-23 package, ideal for automotive applications. Min Qty: 60000 Package Multiple: 1 | 0 |
|
$0.0153 / $0.0165 | Buy Now |
|
DISTI #
SMMBD914LT3G
|
Avnet Asia | (Alt: SMMBD914LT3G) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days | 40000 |
|
$0.0396 / $0.0532 | Buy Now |
|
DISTI #
SMMBD914LT3G
|
Avnet Silica | (Alt: SMMBD914LT3G) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
SMMBD914LT3G
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 10 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 10000 |
|
$0.0314 / $0.0538 | Buy Now |
|
DISTI #
SMMBD914LT3G
|
EBV Elektronik | (Alt: SMMBD914LT3G) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: SMMBD914LT3G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SMMBD914LT3G
SMMBD914LT3G CAD Models
-

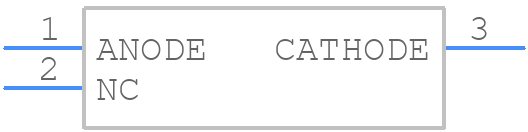

Part Symbol
-
Footprint
-

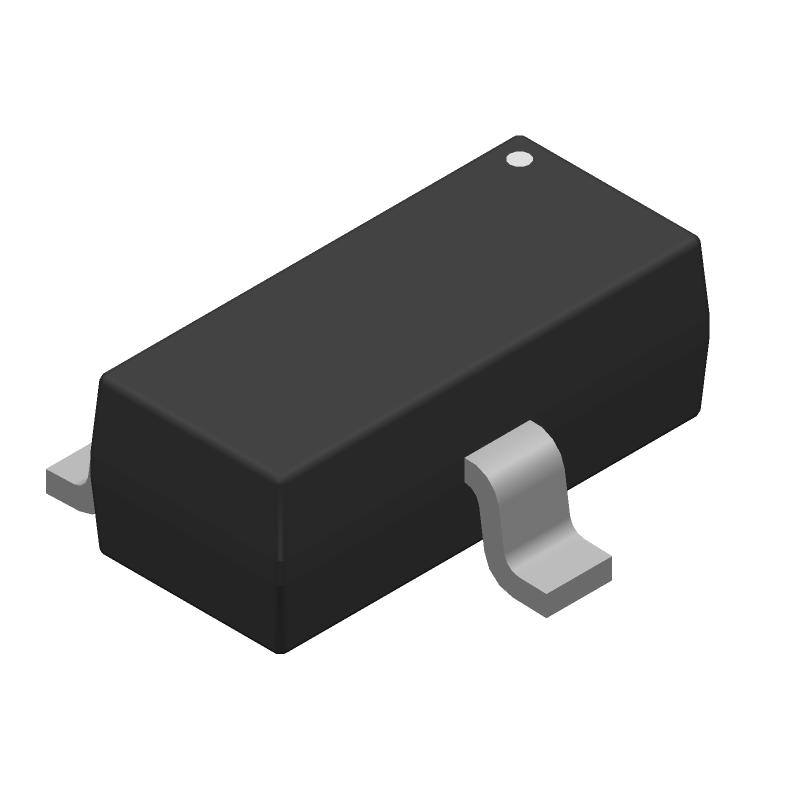

3D Model
