SN6505BDBVT Information
SN6505BDBVT by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN6505BDBVT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH4971
|
Newark | Transformer Driver, 424Khz, 5V, Sot-23-6, Ic Function:Transformer Driver, Supply Voltage Min:2.25V, Supply Voltage Max:5.5V, Ic Package Type:Sot-23, No. Of Pins:6Pins, Operating Temperature Min:-55°C, Operating Temperature Max:125°C, rohs Compliant: Yes |Texas Instruments SN6505BDBVT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 500 |
|
$2.3100 | Buy Now |
|
DISTI #
SN6505BDBVT-TEX-0
|
TME | SN6505BDBVT Min Qty: 250 | 8000 |
|
$1.9456 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 3781 |
|
RFQ | |
|
|
Chip Stock | Low-noise,1-A,420-kHztransformerdriverwithsoftstartforisolatedpowersupplies6-SOT-23-55to125 | 34210 |
|
RFQ | |
|
|
LCSC | SOT-23-6 Power Management - Specialized RoHS | 281 |
|
$0.3195 / $0.6220 | Buy Now |
|
|
Win Source Electronics | IC TRANSFORMER DRIVER SOT23-6 | 51700 |
|
$0.2915 / $0.3764 | Buy Now |
US Tariff Estimator: SN6505BDBVT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN6505BDBVT
SN6505BDBVT CAD Models
-

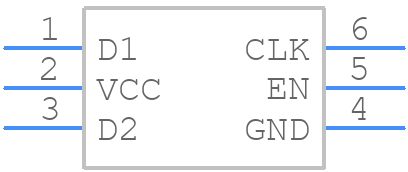

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN6505BDBVT Part Data Attributes
|
|
SN6505BDBVT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN6505BDBVT
Texas Instruments
Interface Circuit, BICMOS, PDSO6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lssop, Tssop6,.08 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Interface IC Type | Interface Circuit | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1.5 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.45 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Military | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 Mm |
