SN65C1168PWR Information
SN65C1168PWR by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN65C1168PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Ameya Holding Limited | IC DUAL DIFF DRVR/RCVR 16-TSSOP | 5384 |
|
RFQ | |
|
|
NexGen Digital | 3970 |
|
RFQ | ||
|
|
Chip Stock | ICTRANSCEIVERFULL2/216TSSOP", 2/2TransceiverFullRS422,RS48516-TSSOP", | 206500 |
|
RFQ | |
|
|
Win Source Electronics | IC DUAL DIFF DRVR/RCVR 16-TSSOP | 194000 |
|
$0.8039 / $1.0383 | Buy Now |
US Tariff Estimator: SN65C1168PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN65C1168PWR
SN65C1168PWR CAD Models
-

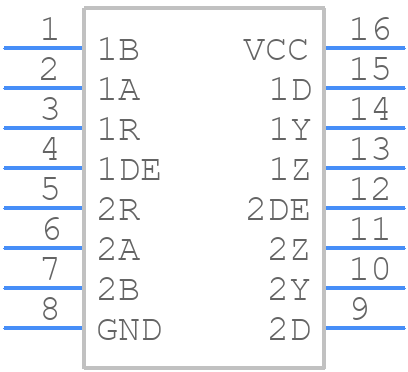

Part Symbol
-
