SN65LVDS391D Information
SN65LVDS391D by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN65LVDS391D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
|
Rochester Electronics | Line Driver, 4 Func, 4 Driver, CMOS, PDSO16 RoHS: Compliant Status: Active Min Qty: 1 | 340 |
|
$1.6100 / $2.0100 | Buy Now |
|
DISTI #
SN65LVDS391D
|
TME | IC: interface, line interface,line driver, 630Mbps, LVTTL, LVDS Min Qty: 1 | 0 |
|
$2.2600 / $3.5200 | RFQ |
|
|
Ameya Holding Limited | SN65LVDS391D, 四 630Mbit/s LVDS 发送器, 3 → 3.6 V, 16针 SOIC封装 | 19458 |
|
RFQ | |
|
|
Chip Stock | EAR9965LVDS391TubeLVDSinterfacetransceiver454mV20mA155.100241mg2.9ns | 364 |
|
RFQ | |
|
|
Win Source Electronics | HIGH-SPEED DIFFERENTIAL LINE DRIVERS | IC HIGH DIFF DRIVER 16-SOIC | 239 |
|
$3.0030 / $4.5045 | Buy Now |
US Tariff Estimator: SN65LVDS391D by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN65LVDS391D
SN65LVDS391D CAD Models
-

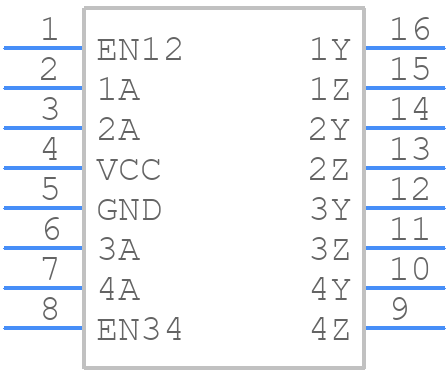

Part Symbol
-
