SN74AC74PWR Information
SN74AC74PWR by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AC74PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 1684 |
|
RFQ | ||
|
|
Bristol Electronics | 300 |
|
RFQ | ||
|
DISTI #
SN74AC74PWR
|
TME | IC: digital, D flip-flop, Ch: 2, CMOS, SMD, TSSOP14, AC, 20uA Min Qty: 1 | 0 |
|
$0.2000 / $0.3500 | RFQ |
|
DISTI #
SN74AC74PWR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1735 |
|
$0.1470 / $0.1950 | Buy Now |
|
|
Component Electronics, Inc | SMT TAPE | 20 |
|
$0.7500 / $1.1500 | Buy Now |
|
|
LCSC | 2V6V 160MHz 6ns5V50pF D-Type 1 2 2uA TSSOP-14 Flip Flops RoHS | 1000 |
|
$0.1760 / $0.2593 | Buy Now |
US Tariff Estimator: SN74AC74PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74AC74PWR
SN74AC74PWR CAD Models
-

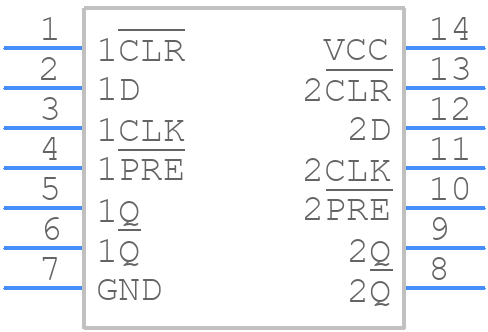

Part Symbol
-
