SN74AHC540DWR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AHC540DWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Bus Driver, AHC/VHC/H/U/V Series, 8-Func, 8-Bit, Inverted Output, CMOS, PDSO20 RoHS: Compliant Status: Active Min Qty: 1 | 5975 |
|
$0.1789 / $0.2885 | Buy Now |
|
DISTI #
SN74AHC540DWR
|
TME | IC: digital, buffer,inverting,line driver, Ch: 8, CMOS, SMD, SO20 Min Qty: 1 | 0 |
|
$0.2530 / $0.5300 | RFQ |
|
|
Ameya Holding Limited | IC INVERTER 8-INPUT 20SOIC | 758 |
|
RFQ | |
|
|
LCSC | 40uA 2V5.5V 5.2ns5V50pF SOIC-20-300mil Buffers Drivers Receivers Transceivers RoHS | 45 |
|
$0.3188 / $0.6251 | Buy Now |
US Tariff Estimator: SN74AHC540DWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74AHC540DWR
SN74AHC540DWR CAD Models
-

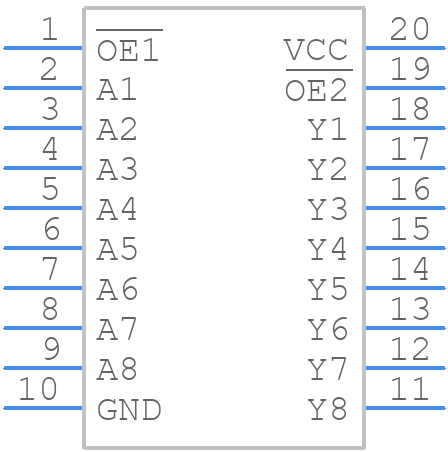

Part Symbol
-
