Part Details for SN74AHC594PWR by Texas Instruments
Results Overview of SN74AHC594PWR by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (5 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74AHC594PWR Information
SN74AHC594PWR by Texas Instruments is a Shift Register.
Shift Registers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74AHC594PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 63 |
|
RFQ | ||
|
DISTI #
SN74AHC594PWR
|
TME | IC: digital Min Qty: 1 | 0 |
|
$0.2850 / $0.3800 | RFQ |
|
|
Ameya Holding Limited | SN74AHC594PWR, 8-Bit 移位寄存器, 串行至串行/并行, 单向, 2 → 5.5 V电源, 16针 TSSOP封装 | 51148 |
|
RFQ | |
|
DISTI #
SMC-SN74AHC594PWR
|
Sensible Micro Corporation | Shift Register Single 8-Bit Serial To Serial/Parallel 16-Pin Tssop T/R RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 2015+ Container: Tape & Reel | 377 |
|
RFQ | |
|
DISTI #
SN74AHC594PWR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1116 |
|
$0.2220 / $0.5680 | Buy Now |
|
|
Chip Stock | ICSHIFTREGISTER8BIT16-TSSOPShiftShiftRegister1Element8Bit16-TSSOP | 20080 |
|
RFQ | |
|
|
LCSC | 8 2V5.5V 1 Serial-to-Parallel TSSOP-16 Shift Registers RoHS | 14 |
|
$0.2028 / $0.4195 | Buy Now |
|
|
Win Source Electronics | IC SHIFT REGISTER 8BIT 16-TSSOP | 16580 |
|
$0.2727 / $0.4090 | Buy Now |
US Tariff Estimator: SN74AHC594PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN74AHC594PWR
SN74AHC594PWR CAD Models
-

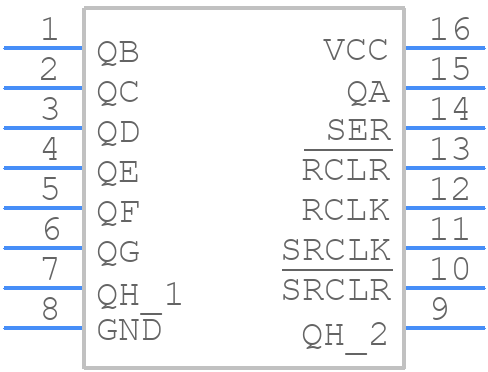

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN74AHC594PWR Part Data Attributes
|
|
SN74AHC594PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74AHC594PWR
Texas Instruments
8-Bit Shift Registers With Output Registers 16-TSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop, Tssop16,.25 | |
| Pin Count | 16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Additional Feature | Parallel Output Is Registered; Unregistered Serial Output Available | |
| Count Direction | Right | |
| Family | Ahc/Vhc/H/U/V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Serial In Parallel Out | |
| Max Frequency@Nom-Sup | 95000000 Hz | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.04 Ma | |
| Propagation Delay (tpd) | 13.9 Ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | No | |
| Seated Height-Max | 1.2 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | Positive Edge | |
| Width | 4.4 Mm | |
| fmax-Min | 115 Mhz |
Alternate Parts for SN74AHC594PWR
This table gives cross-reference parts and alternative options found for SN74AHC594PWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74AHC594PWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74AHC594PW | Texas Instruments | $0.2855 | 8-Bit Shift Registers With Output Registers 16-TSSOP -40 to 125 | SN74AHC594PWR vs SN74AHC594PW |
| SN74AHC594PWLE | Texas Instruments | Check for Price | AHC SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, TSSOP-16 | SN74AHC594PWR vs SN74AHC594PWLE |
| SN74AHC594PWG4 | Texas Instruments | Check for Price | 8-Bit Shift Registers With Output Registers 16-TSSOP -40 to 85 | SN74AHC594PWR vs SN74AHC594PWG4 |
| SN74AHC594PWRG4 | Texas Instruments | Check for Price | 8-Bit Shift Registers With Output Registers 16-TSSOP -40 to 125 | SN74AHC594PWR vs SN74AHC594PWRG4 |
| SN74AHC594PWE4 | Texas Instruments | Check for Price | AHC/VHC/H/U/V SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, TSSOP-16 | SN74AHC594PWR vs SN74AHC594PWE4 |
SN74AHC594PWR Frequently Asked Questions (FAQ)
-
The maximum clock frequency is 100 MHz, but it depends on the capacitive load and the operating voltage. It's recommended to check the timing characteristics in the datasheet for specific frequency limits.
-
To minimize signal distortion and skew, it's essential to use a low-impedance output driver, keep the output traces short, and use a low-capacitance load. Additionally, ensure that the power supply is well-regulated and decoupled.
-
The recommended power-on sequence is to apply the power supply voltage (VCC) before applying the clock signal (CLK). This ensures that the internal logic is properly initialized.
-
Yes, the SN74AHC594PWR can be used as a level shifter, but it's essential to ensure that the input voltage levels are compatible with the device's input voltage range. Additionally, the output voltage levels will be limited to the device's output voltage range.
-
The SN74AHC594PWR is a surface-mount device, and thermal dissipation is crucial. Ensure that the device is mounted on a thermally conductive substrate, and consider using thermal vias or a heat sink if high-power operation is expected.
